Harman Infinity HTS-10 - WIRING THE SUBWOOFER; Identifying Controls; Connecting AC Power

12
◆
HTS-10 Home-Theater System – Owner’s Manual
C ONTROLS ...
B
EFORE C ONNECTING
Y OUR S UBWOOFER ...

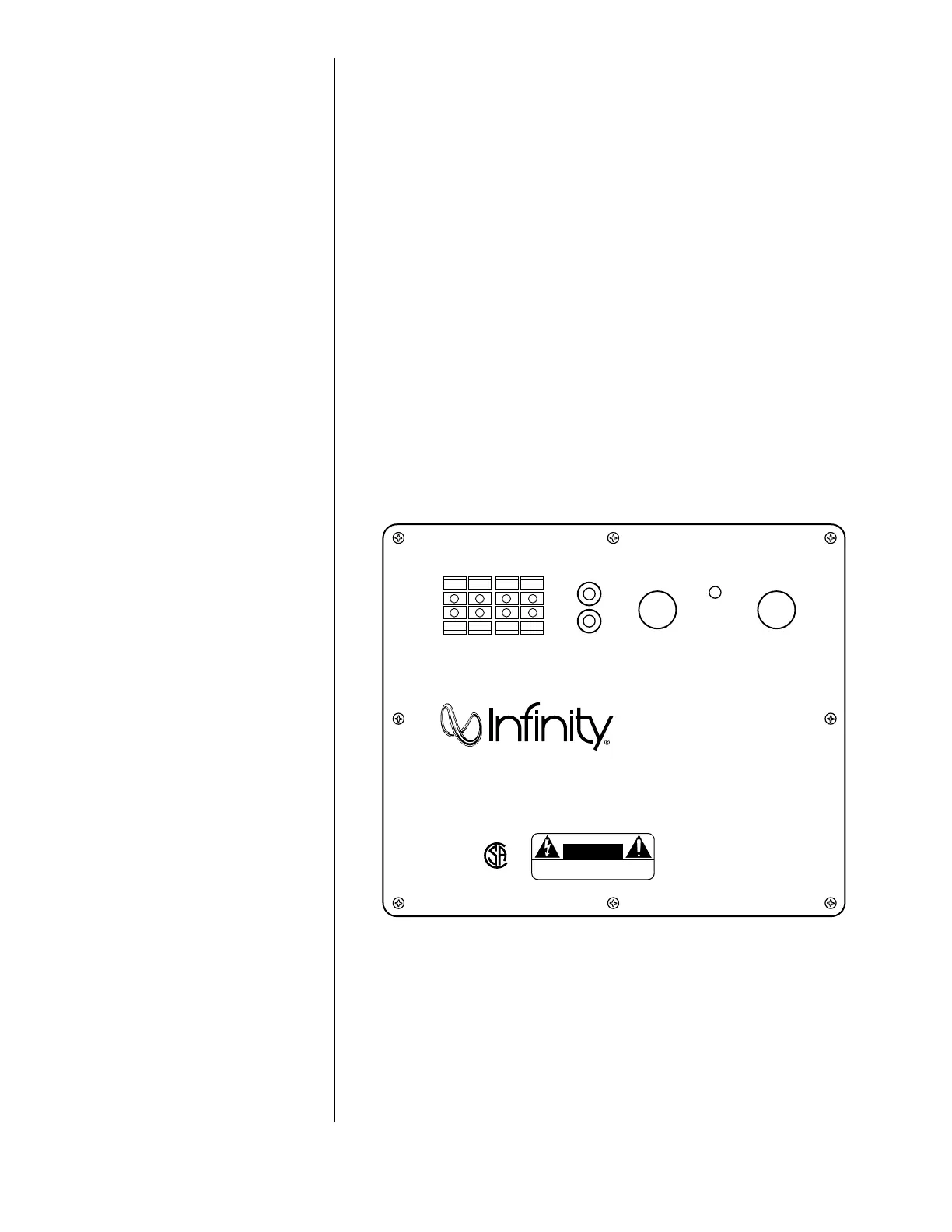

Figure 9.
WIRING THE SUBWOOFER
IDENTIFYING CONTROLS AND
CONNECTING AC POWER
Refer to Figure 9 to identify the controls of your subwoofer’s internal amplifier:
❶ High-Level Input and Output terminals
❷ Low-Level Input jacks: connect to preamplifier outputs
❸ Crossover Frequency: controls upper-corner roll-off point
❹ Power-On Indicator
❺ Volume Control: controls volume of subwoofer
Turn off your entire audio system prior to connecting your subwoofer.
Connect your subwoofer to an unswitched AC wall outlet.
®
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: SHOCK HAZARD – DO NOT OPEN.
AVIS: RISQUE DE CHOC ELECTRIQUE – NE PAS OUVRIR.
CUIDADO: PELIGRO DE CHOQUE ELECTRICO – NO ABRIR.
Digital Technology
SPKR
In
SPKR
Out
+ L –
– R +
120V
60Hz
160W
50 150
L
R
Low-Level In Crossover
Frequency Volume
Power
Min Max
❹
❸❷
❶
❺
