Harman JBL CINEMA SB160 User Manual

www.jbl.com
English
5
Note:
• DoconrmifHDMICECfunctiononyourTVisturnedon.
• Your TV must support the HDMI-CEC and ARC function. HDMI-
CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may differ depending
on the TV. For details about ARC function, please refer to your
TV owner’s manual.
• Only HDMI 1.4 cables can support the ARC function.

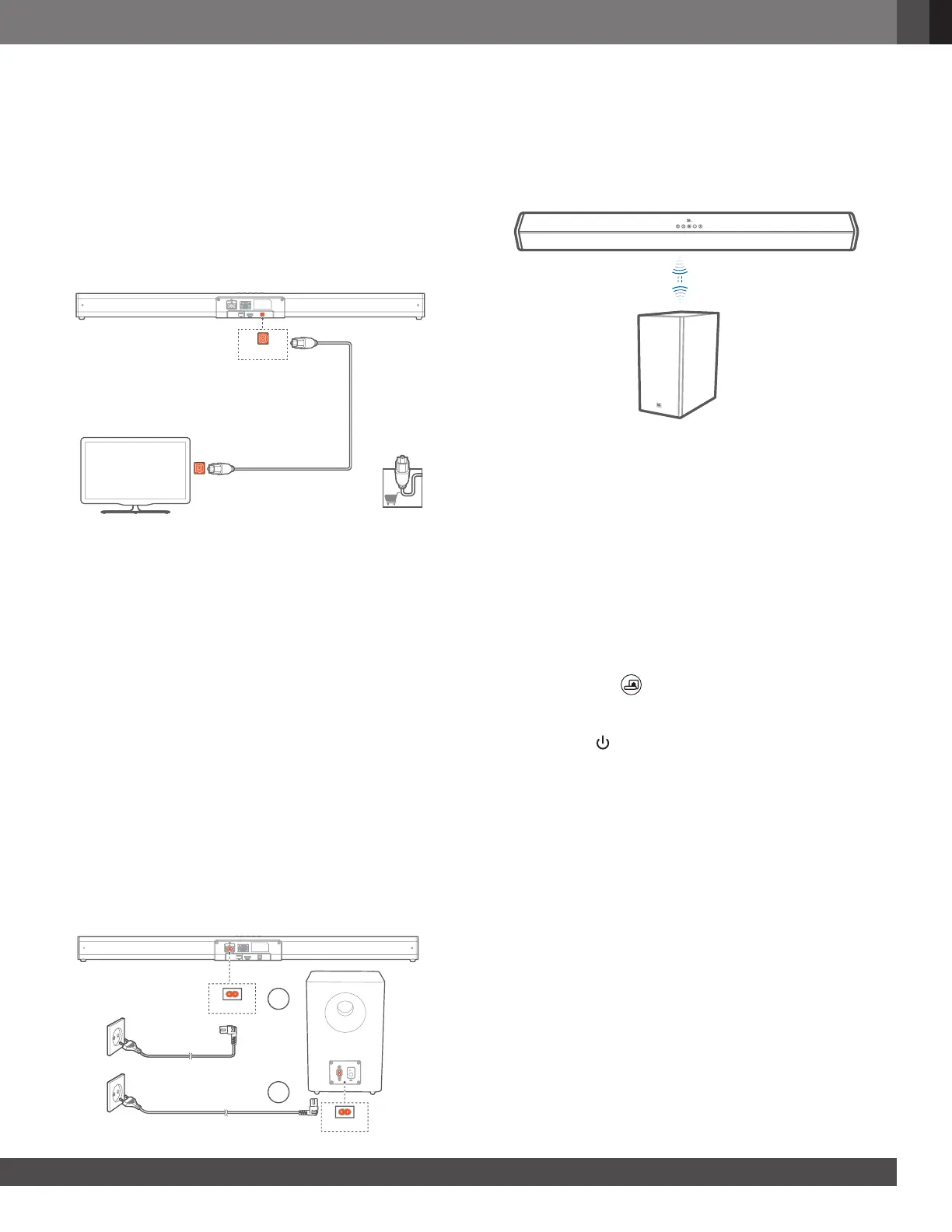

Connect to Optical Socket
HDMI ARC
HDMI ARC
OPTICAL OUT
OPTICAL
1. Remove the protective cap of the OPTICAL socket. Using
an optical cable, connect the OPTICAL connector on your
soundbar to the OPTICAL OUT connector on the TV or other
device.
• The digital optical connector might be labeled SPDIF or SPDIF
OUT.
Note: While in OPTICAL/HDMI ARC mode, if there’s no sound
output from the unit and the status Indicator ashes, you may
need to activate PCM or Dolby Digital Signal output on your
source device (e.g. TV, DVD or Blu-ray player).
Connect to Power
• Before connecting the AC power cord, ensure you have
completed all other connections.
• Risk of product damage! Ensure that the power supply voltage
corresponds to the voltage printed on the back or the underside
of the unit.
• Connect the mains cable to the AC~ Socket of the unit and then
into a mains socket
• Connect the mains cable to the AC~ Socket of the subwoofer
and then into a mains socket.
1
2
3
POWER
POWER
1 2
4
3
PAIR WITH THE SUBWOOFER
Automatic Pairing
Plug the soundbar and the subwoofer into the mains sockets
and then press on the unit or remote control to switch the unit to
ON mode. The subwoofer and soundbar will automatically pair.
• When the subwoofer is pairing with the soundbar, the Pair
indicatoronthesubwooferwillashfast.
• When the subwoofer is paired with the soundbar, the Pair
indicator on the subwoofer will light up steadily.
• Do not press Pair on the rear of the subwoofer, except for
manual pairing.
Manual Pairing
If no audio from the wireless subwoofer can be heard, manually
pair up the subwoofer.
1 Unplug both units from the mains sockets again, then plug them
in again after 3 minutes.
2 Press and hold the (Pair) button on the subwoofer for a few
seconds.
The Pair indicator on the subwoofer will rapidly blink.
3 Then press the button on the unit or remote control to switch
the unit ON.
The Pair indicator on the subwoofer will become solid when
successful.
4 If the Pair indicator still keeps blinking, repeat step 1-3.
Note:
• The subwoofer should be within 6 m of the soundbar in an open
area (the closer the better).
• Remove any objects between the subwoofer and the soundbar.
• Ifthewirelessconnectionfailsagain,checkifthereisaconict
or strong interference (e.g. interference from an electronic
device)aroundthelocation.Removetheseconictsorstrong
interferences and repeat the above procedures.
• If the main unit is not connected with the subwoofer and it is in
ONmode,theunit’sPOWERindicatorwillash.

Harman JBL CINEMA SB160 Specifications

General

Brand	JBL
Model	CINEMA SB160
Speaker Type	Soundbar
Total Power Output	220W
Subwoofer Type	Wireless
Bluetooth Version	4.2
HDMI ARC	Yes
Audio Formats Supported	Dolby Digital
Remote Control	Yes
Wall Mountable	Yes
Connectivity	HDMI ARC, Optical, Bluetooth
Number of Speakers	2
