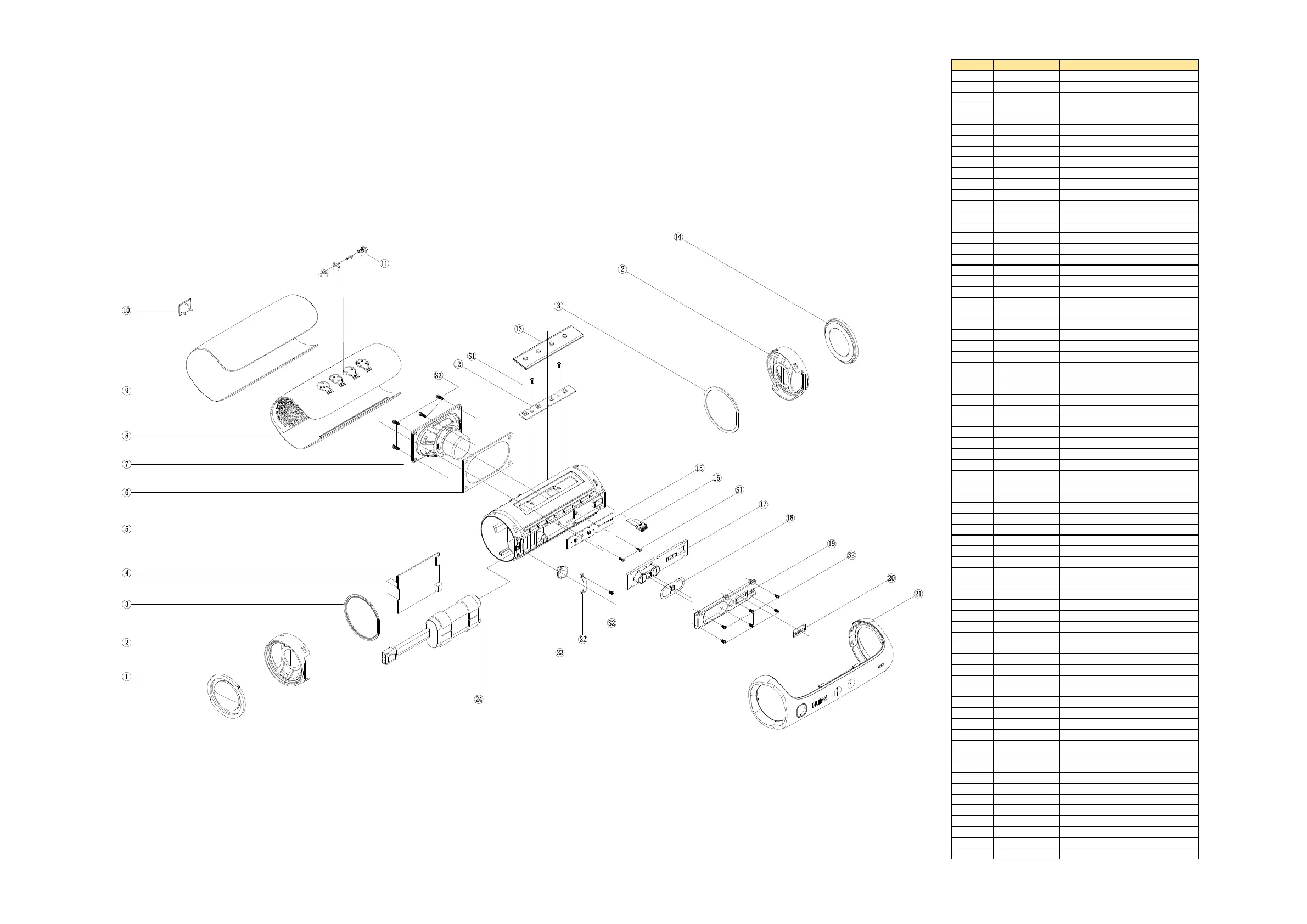

Harman JBL FLIP 5 - Mechanical Exploded View

noitpircseDrebmuN traP.oN .soP
1+2 1003047565B0020 PASSIVE RADIATOR R YEL FLIP5 CS
1+2 1003047565B0019 PASSIVE RADIATOR R PINK FLIP5 CS
1+2
1003047565B0018
PASSIVE RADIATOR R TEAL FLIP5 CS
1+2 1003047565B0017 PASSIVE RADIATOR R SAND FLIP5 CS
1+2 1003047565B0016 PASSIVE RADIATOR R WHT FLIP5 CS
1+2 1003047565B0015 PASSIVE RADIATOR R GREN FLIP5 CS
1+2 1003047565B0014 PASSIVE RADIATOR R GRY FLIP5 CS
1+2
1003047565B0013
PASSIVE RADIATOR R BLU FLIP5 CS
1+2
1003047565B0012
PASSIVE RADIATOR R RED FLIP5 CS
1+2 1003047565B0011 PASSIVE RADIATOR R BLK FLIP5 CS
3 300799000173 PR BRACKET SEALING RING CS
4 200606230003C00 MAIN PCBA FLIP5 CS
5 311400756502D00 MAIN HOUSING FLIP5 CS
6 300799000175 DRIVER SEALING RING CS
7 33072448003001C SPEAKER DRIVER FLIP5 CS
8+9+10+11 1003047565B0001 FABRIC GRILLE ASSY BLK FLIP5 CS
8+9+10+11 1003047565B0002 FABRIC GRILLE ASSY RED FLIP5 CS
8+9+10+11 1003047565B0003 FABRIC GRILLE ASSY BLU FLIP5 CS
8+9+10+11 1003047565B0004 FABRIC GRILLE ASSY GRAY FLIP5 CS
8+9+10+11 1003047565B0005 FABRIC GRILLE ASSY GREN FLIP5 CS
8+9+10+11 1003047565B0006 FABRIC GRILLE ASSY WHT FLIP5 CS
8+9+10+11
1003047565B0007
FABRIC GRILLE ASSY SAND FLIP5 CS
8+9+10+11 1003047565B0008 FABRIC GRILLE ASSY TEAL FLIP5 CS
8+9+10+11 1003047565B0009 FABRIC GRILLE ASSY PINK FLIP5 CS
8+9+10+11 1003047565B0010 FABRIC GRILLE ASSY YEL FLIP5 CS
12 200607220012C00 KEY PCBA FLIP5 CS
13 300799000176E00 VOLUME BUTTON FLIP5 CS
14+2 1003047565B0021 PASSIVE RADIATOR L BLK FLIP5 CS
14+2 1003047565B0022 PASSIVE RADIATOR L RED FLIP5 CS
14+2
1003047565B0023
PASSIVE RADIATOR L BLU FLIP5 CS
14+2
1003047565B0024
PASSIVE RADIATOR L GRY FLIP5 CS
14+2 1003047565B0025 PASSIVE RADIATOR L GREN FLIP5 CS
14+2 1003047565B0026 PASSIVE RADIATOR L WHT FLIP5 CS
14+2 1003047565B0027 PASSIVE RADIATOR L SAND FLIP5 CS
14+2 1003047565B0028 PASSIVE RADIATOR L TEAL FLIP5 CS
14+2 1003047565B0029 PASSIVE RADIATOR L PINK FLIP5 CS
14+2 1003047565B0030 PASSIVE RADIATOR L YEL FLIP5 CS
15 200609220007C00 LED AND KEY PCBA FLIP5 CS
16 200608220013C00 USB PCBA FLIP5 CS
17 300799000174E01 RUBBER BUTTON FLIP5 CS
18 309999000022C00 ASTIGMATIC PAPAER FLIP5 CS
19 311600756502D00 USB BRACKET FLIP5 CS
20 311700756501D00 PIPE LINE FLIP5 CS
21 319905756501D00 WRAPPING HOUSING BLK FLIP5 CS
21 319905756502D00 WRAPPING HOUSING RED FLIP5 CS
21 319905756503D00 WRAPPING HOUSING BLU FLIP5 CS
21 319905756504D00 WRAPPING HOUSING GRY FLIP5 CS
21 319905756505D00 WRAPPING HOUSING GREN FLIP5 CS
21 319905756506D00 WRAPPING HOUSING WHT FLIP5 CS
21 319905756507D00 WRAPPING HOUSING SAND FLIP5 CS
21 319905756508D00 WRAPPING HOUSING TEAL FLIP5 CS
21 319905756509D00 WRAPPING HOUSING PINK FLIP5 CS
21 319905756510D00 WRAPPING HOUSING YEL FLIP5 CS
22 300399020079D00 STRAP HOOK BLK FLIP5 CS
22 300399020080D00 STRAP HOOK RED FLIP5 CS
22 300399020081D00 STRAP HOOK BLU FLIP5 CS
22 300399020083D00 STRAP HOOK GREN FLIP5 CS
22 300399020085D00 STRAP HOOK WHT FLIP5 CS
22
300399020086D00
STRAP HOOK SAND FLIP5 CS
22
300399020087D00
STRAP HOOK TEAL FLIP5 CS
22
300399020088D00
STRAP HOOK PINK FLIP5 CS
22
300399020089D00
STRAP HOOK YEL FLIP5 CS
23 311500756510D00 DECORATIVE COVER YEL FLIP5 CS
23 311500756509D00 DECORATIVE COVER PINK FLIP5 CS
23
311500756508D00
DECORATIVE COVER TEAL FLIP5 CS
23 311500756507D00 DECORATIVE COVER SAND FLIP5 CS
23 311500756506D00 DECORATIVE COVER WHT FLIP5 CS
23 311500756505D00 DECORATIVE COVER GREN FLIP5 CS
23 311500756504D00 DECORATIVE COVER GRY FLIP5 CS
23 311500756503D00 DECORATIVE COVER BLU FLIP5 CS
23 311500756502D00 DECORATIVE COVER RED FLIP5 CS
23 311500756501D00 DECORATIVE COVER BLK FLIP5 CS
24 300112024010C00 LI-ION BATTERY 4800MAH FLIP5 CS
MECHANICAL EXPLODED VIEW
