3
2

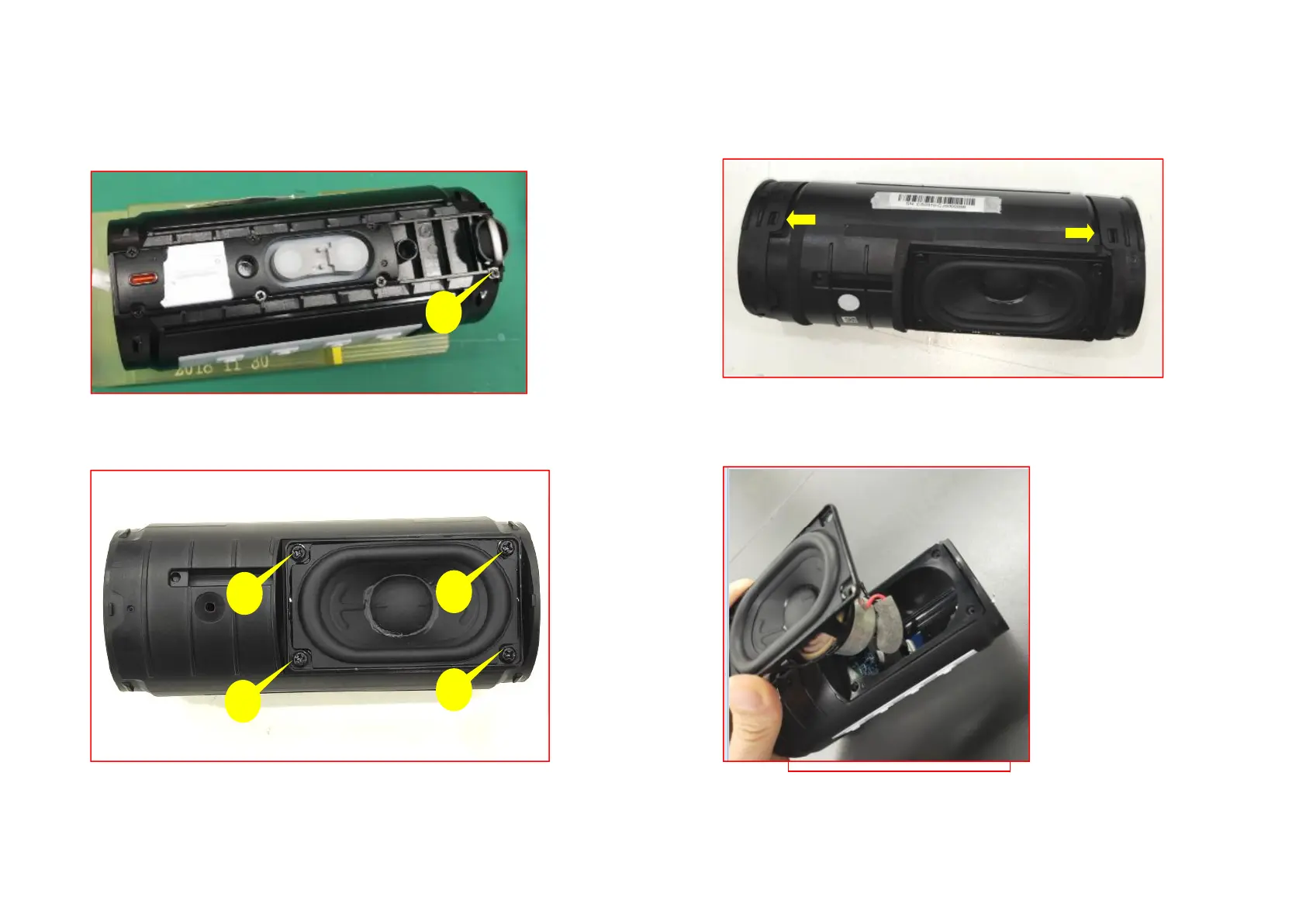

9: Remove 4 screws as shown
10: Take out the driver
1
4
3 2
4
7: Remove screw as shown and take out
the metal ring and recess
1
8: Take off PR for both side
1
