Harman JBL MAX Series User Manual

17

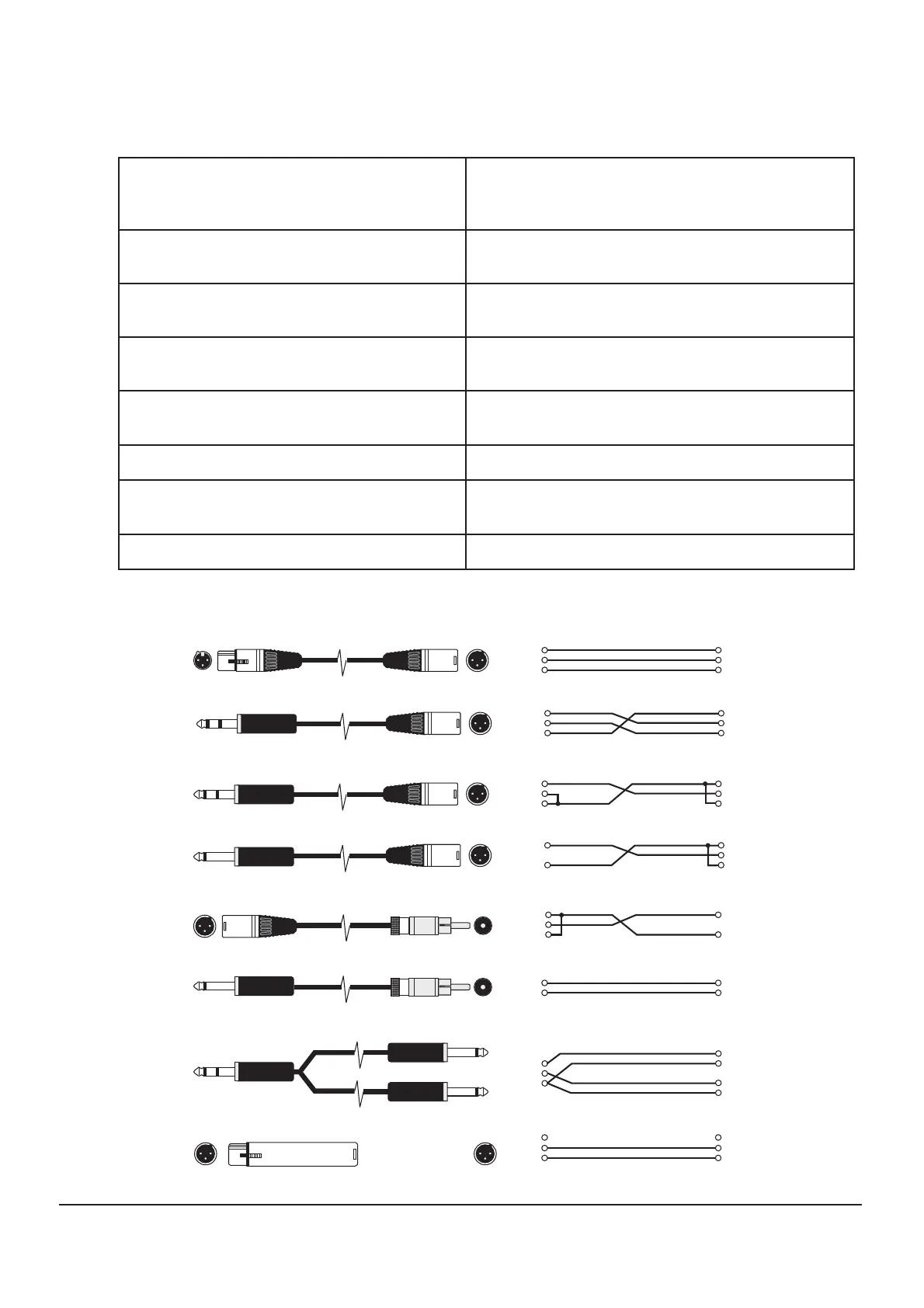

CABLES AND CONNECTORS
XLR/F for XLR/M microphone cable
The standard cable for interconnecting microphone and line
level signal in professional audio systems. Microphone for the
soundboard.
1/4-inch P10 (balanced) input for XLR/M
For connecting balanced 1/4-inch P10 devices and can be used
interchangeably.
1/4-inch P10 (unbalanced) input for XLR/M
For connecting instruments with unbalanced outputs to balanced
XLR inputs.
1/4-inch P10 TS (unbalanced) connector for XLR/M
This cable is electrically identical to 1/4-inch “P10” (unbalanced)
and can be used interchangeably.
XLR/M cable for RCA (phono)
Connects audio products and some DJ mixer outputs to professional
audio equipment inputs.
1/4-inch P10 inlet for 1/4-inch P10 double inlet Splits a stereo output into separate left/right signals.
TS (unbalanced) P2 for RCA cable (Phono)
P2 connector to connect the output of a laptop, mobile phone, MP3
player, computer to a soundboard.
XLR/F for audio with XLR/M ground switch Only with balanced inputs and outputs
XLR/F for XLR/M microphone cable
1 (shield)
2
3
1
2
3
1 (shield)
2
3
End
Ring
Sleeve
P10 (unbalanced) 1/4" for XLR/M cable
1 (shield)
2
3
End
Ring
Sleeve
P10 (unbalanced) 1/4" for XLR/M cable
1 (shield)
2
3
End
Sleeve
P10 TS (unbalanced) 1/4" for XLR/M cable
End
Sleeve (shield)
1
2
3
XLR/M for RCA cable (Phono)
End
Sleeve (shield)
End
Sleeve
P2 TS (unbalanced) for RCA cable (Phono)
End
Sleeve (shield)
End
Ring
Sleeve
P10 1/4" for TS P10 1/4” dual cable
1. (no connection)
2
3
1
2
3
XLR/F for audio adapter with XLR/M ground switch
End
Sleeve (shield)
