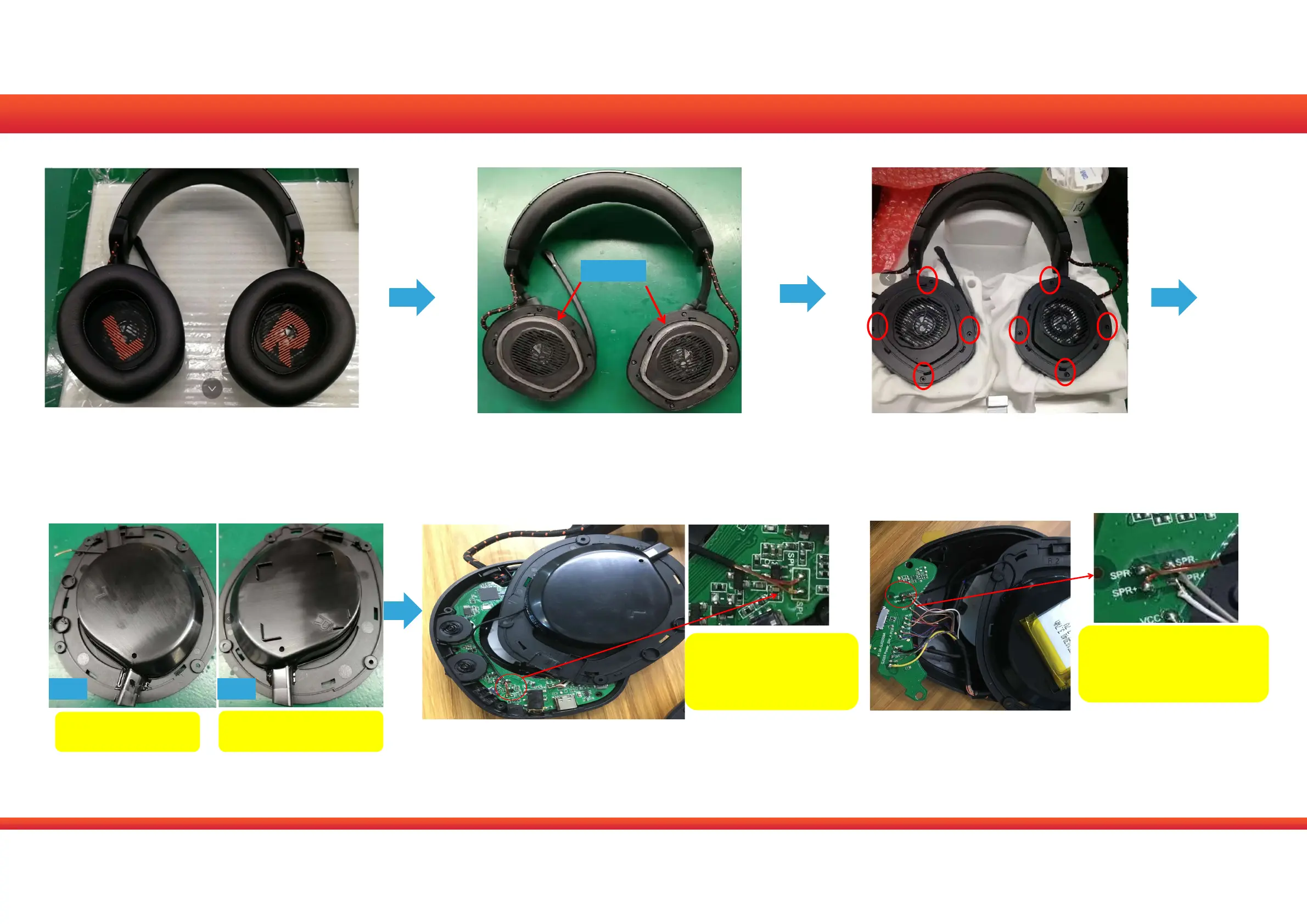

Q600 dismantle instruction
1.Take away the ear cushion from L&R side
2.Take away the ear EVA from L&R side
3. Remove the screws from L&R side, clean the
adhesive residue by alcohol.
EVA
Left driver module
L R
Right driver module
SPKR- coppery
SPKR+ red
SPKL- coppery
SPKL+ red
Left driver module
Right driver module
