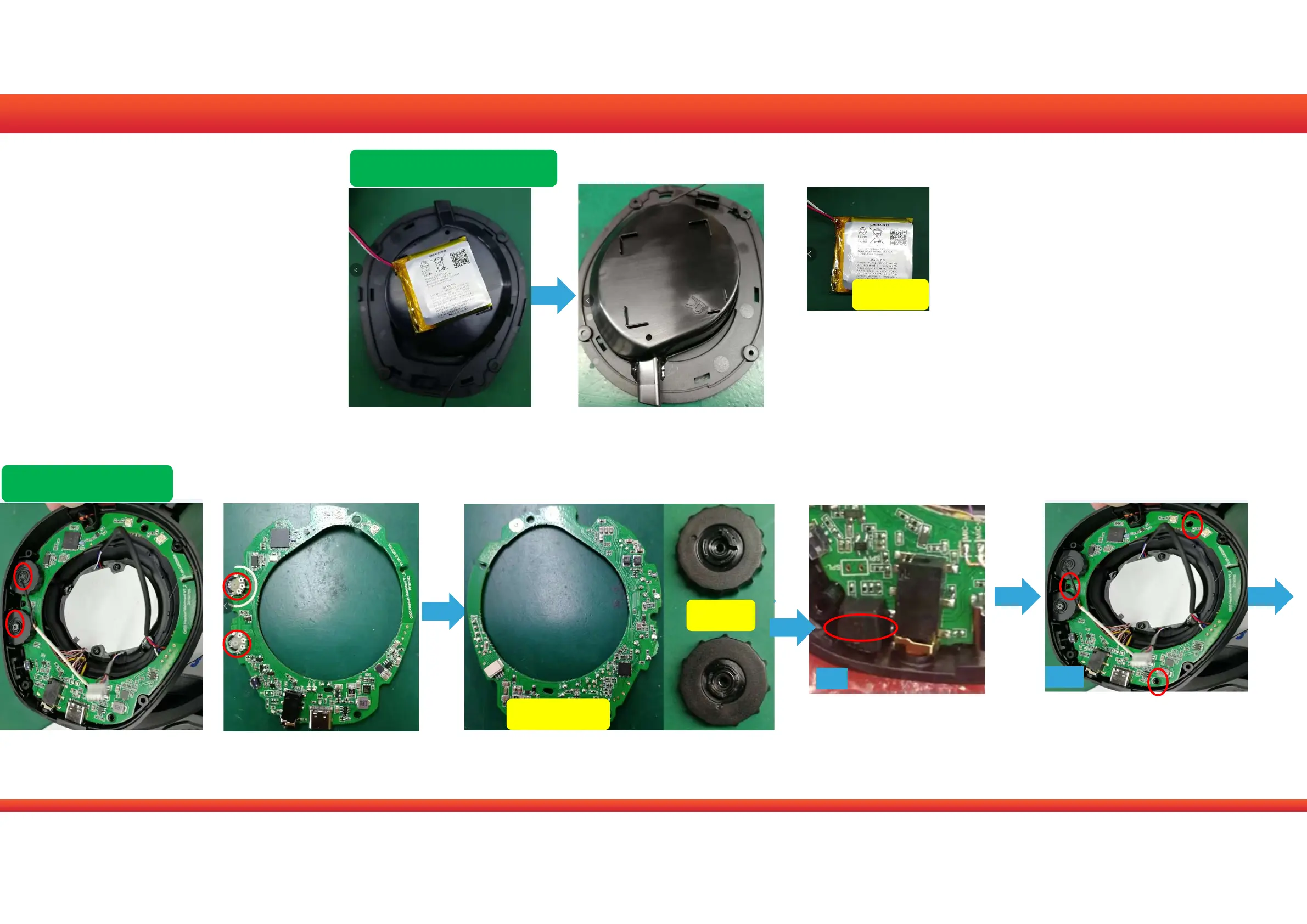

Q600 dismantle instruction
9. Remove the EVA and screws
from L side
8.Dismantle the lampshade & lamp
by tweezers from L side
L
L
4. Remove battery by tweezers
from right driver module
Main PCBA
Wheel
5.Clean the adhesive residue
by alcohol.
7.Solder out the potentiometer
from main PCBA
6.Remove the screws from
wheel
Battery
L side-main PCBA
Right driver module
