Lay the glass frame face down on a at surface. The glass panel
should have channel gasket on the ends (short sides) only. Place
the glass panel into the frame, making sure that it is completely
down in the frame. Now lay the door onto the frame and secure
it using four 1/4-20 ange head bolts. With the assembled door
still lying face down, slide the door top trim under the top of the
door. Align the holes and secure the top trim using two 1/4-20 hex
head bolts.

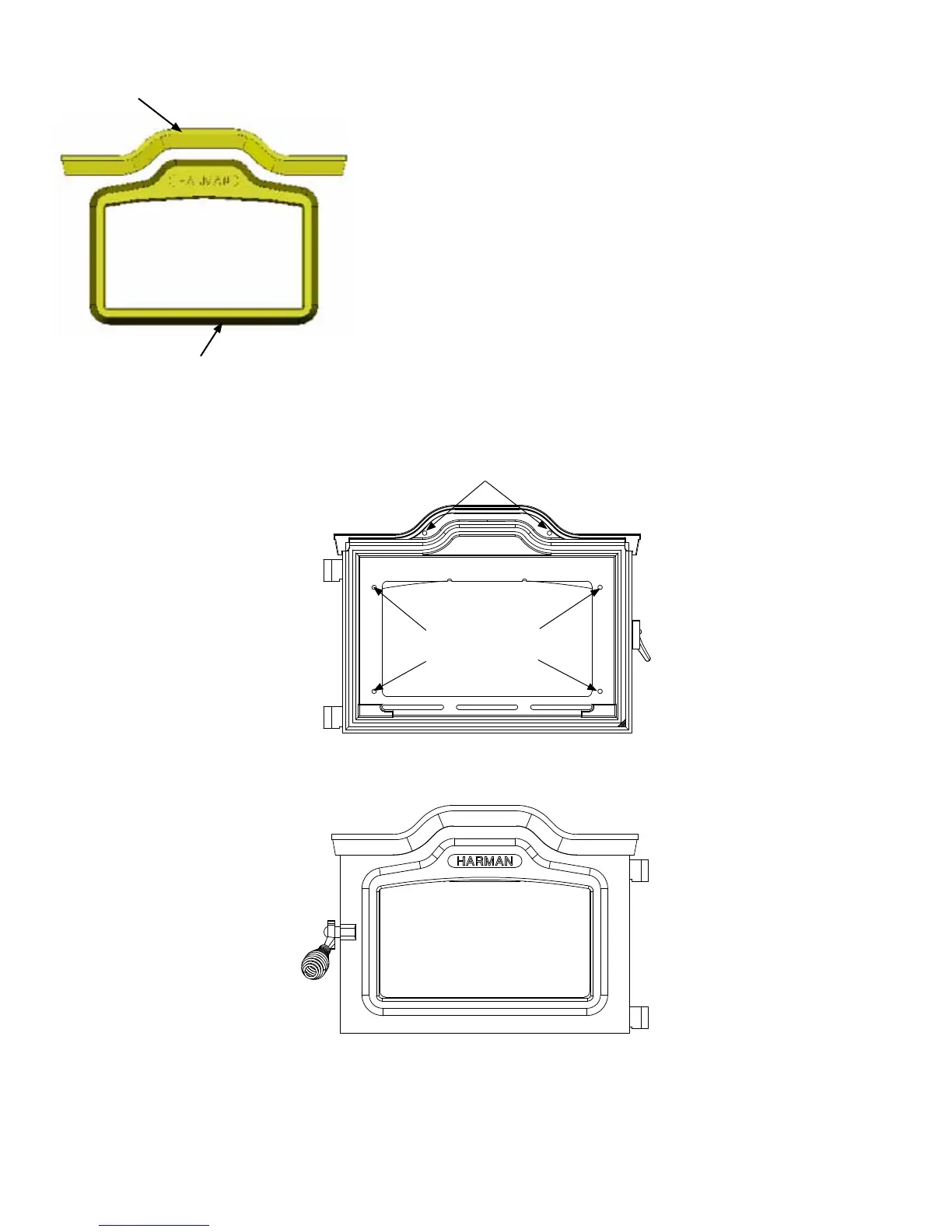

Door Top Trim
Glass Frame
Glass Frame
Bolt Locations
Door Top Trim
Bolt Locations
Front View
To Next Page
