IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.

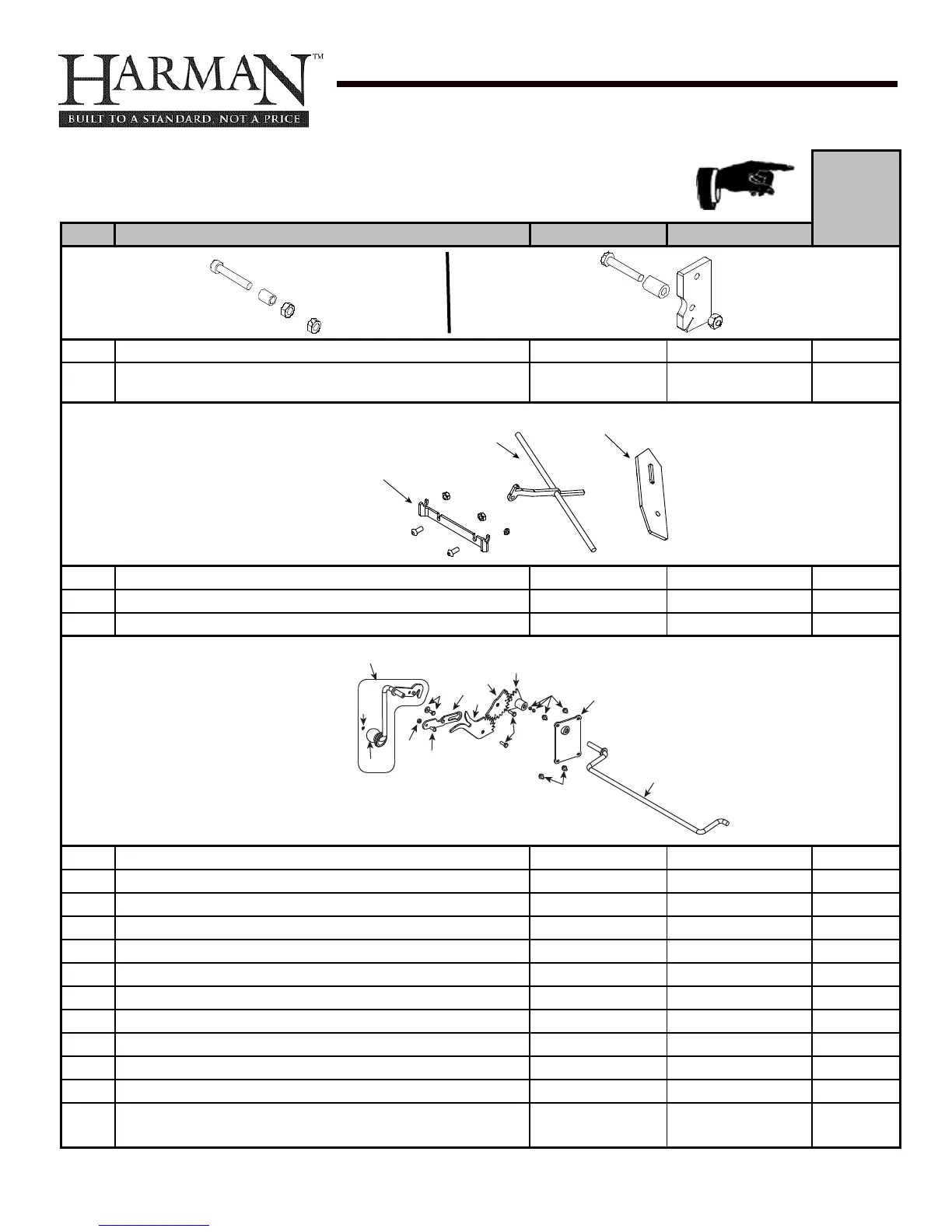

15 Kit A (Includes Screws, Steel Sleeve Bushing) 1-00-06902
16
Kit B (Includes Screws, Steel Sleeve Bushing, Latch Adjuster
Plate, Reverse Lock Nut).
1-00-06903
17.1 Rod Bracket 2-00-06963B
17.2 Air Slide Adjuster 1-10-06964W
17.3 Air Slide Weldment 1-10-06950W
18.1 Push-On Cap Lift Arm 3-31-500015
18.2 Wooden Knob 3-40-06956
18.3 Damper Linkage Arm Weldment w/Hardware 1-10-06937W
18.4 Damper Pivot Gear Pkg of 2 2-00-06924-2
18.5 Damper Idler Gear 2-00-06923L
18.6 Damper Arm Gear Weldment 1-10-06916W
18.7 Damper Shaft Cover Weldment 1-10-06918W
18.8 Damper Linkage Weldment 1-10-249146
18.9 Top Lift Arm weldment 1-10-08127
18.10 1/4-20 Reversible Lock Nut Pkg of 100 3-30-8020-100
18.11 1/4-20 x 5/8 BHSCS Pkg of 100 3-30-3016-100
18.12
Hardware Package (Includes Drive Arm Washer, Pusher Block
Bushing, Wave Washer, Screws)
1-00-06901
Additional service part numbers appear on following page.
