CHAPTER 5: MULTIPORTVALVEOPERATION
1. Filter: Position for ltering the body of water.
Incoming water from the piping system is
automatically directed by the Multiport Valve to the
top of the lter bed. As the water is pumped through
the lter sand, dirt and debris are trapped by the
lter bed, and ltered out. The ltered water is
returned from the bottom of the lter tank, through
the Multiport Valve and back through the piping
system.
2. Backwash: Position for cleaning the lter media.
Water ow is reversed by the Multiport Valve
through the lter bed so that water ow is directed
to the bottom of the tank and up through the lter
bed, ushing the previously trapped dirt and debris
out the waste line.
3. Rinse: Position for ushing the lter system.
The water ow is directed by the Multiport Valve
through the lter bed and out the waste line. This
process settles the lter media bed into place and
ensures any dirt or debris is rinsed out of the lter,
preventing possible return to the Swimming Pool or Spa.
4. Waste: Position for bypassing the lter bed to
Waste. The water ow is directed by the Multiport
Valve straight to the backwash outlet, bypassing the
entire lter bed. This Multiport Valve position is used
to lower the water level or for vacuuming water with
high dirt loads. NOTE: This position is not available
on 4-Way Multiport Valves.
5. Re-circulate: Position for bypassing the lter bed
to the Swimming Pool or Spa. The Mulitport Valve
recirculates water ow directly back to the Pool or
Spa, bypassing the lter. NOTE: This position is not
available on 4-Way Multiport Valves.
6. Closed: Position for closing all ow to the lter.
This position is not to be used with the pump
operating. NOTE: This position is not available on
4-Way Multiport Valves. CAUTION: Operation of
the Multiport Valve or mode selection is to be
always done with the pump switched off.
CHAPTER 6: BACKWASHING
The function of backwashing is to separate the
deposited particles from lter media grains and ush
them from the lter bed. Backwashing is achieved by
reversing the ow of water through the lter bed at a
fairly high ow rate. This high ow rate expands the
lter bed and the water collects the debris taking it to
waste.
ConditionsforBackwashing
Time for backwashing is determined by the following
conditions:
1. The ow rate through the lter bed decreases until
it is insufcient to meet the demand.
2. The removal efciency of the lter bed decreases
to the point where the efuent quality deteriorates
and is no longer acceptable.
3. When the pressure gauge reading is 7.2 PSI
higher than the start up pressure.
4. If the lter is connected to mains water, pressure rise
is not an accurate indicator as mains pressure
tends to uctuate. It is best to rely on the actual ow
rate. NOTE: We recommend that you backwash
 a swimming pool sand lter in a residential
installation at least once a month.
ImportanceofBackwashing
The importance of backwashing cannot be overstated.
Dense lter media can become “packed” without
proper and frequent enough backwashing. Debris
will remain trapped and create channeling within the
lter bed. This will result in the lter bed exhausting
early. Moreover, if debris is not ushed from the media
grains, the lter bed will become dirtier and dirtier as
time goes on until the lter operation fails.
Backwashing Instructions
1. Switch off the Pump. Close the Inlet Valve.NOTE:
If a pump is installed, switch the pump on and off,
instead of closing and opening the Inlet Valve.
2. Release the lter’s pressure by loosening Pressure
Release Valve until the Pressure Gauge needle
drops to zero <0>.
3. Retighten Pressure Release Valve.

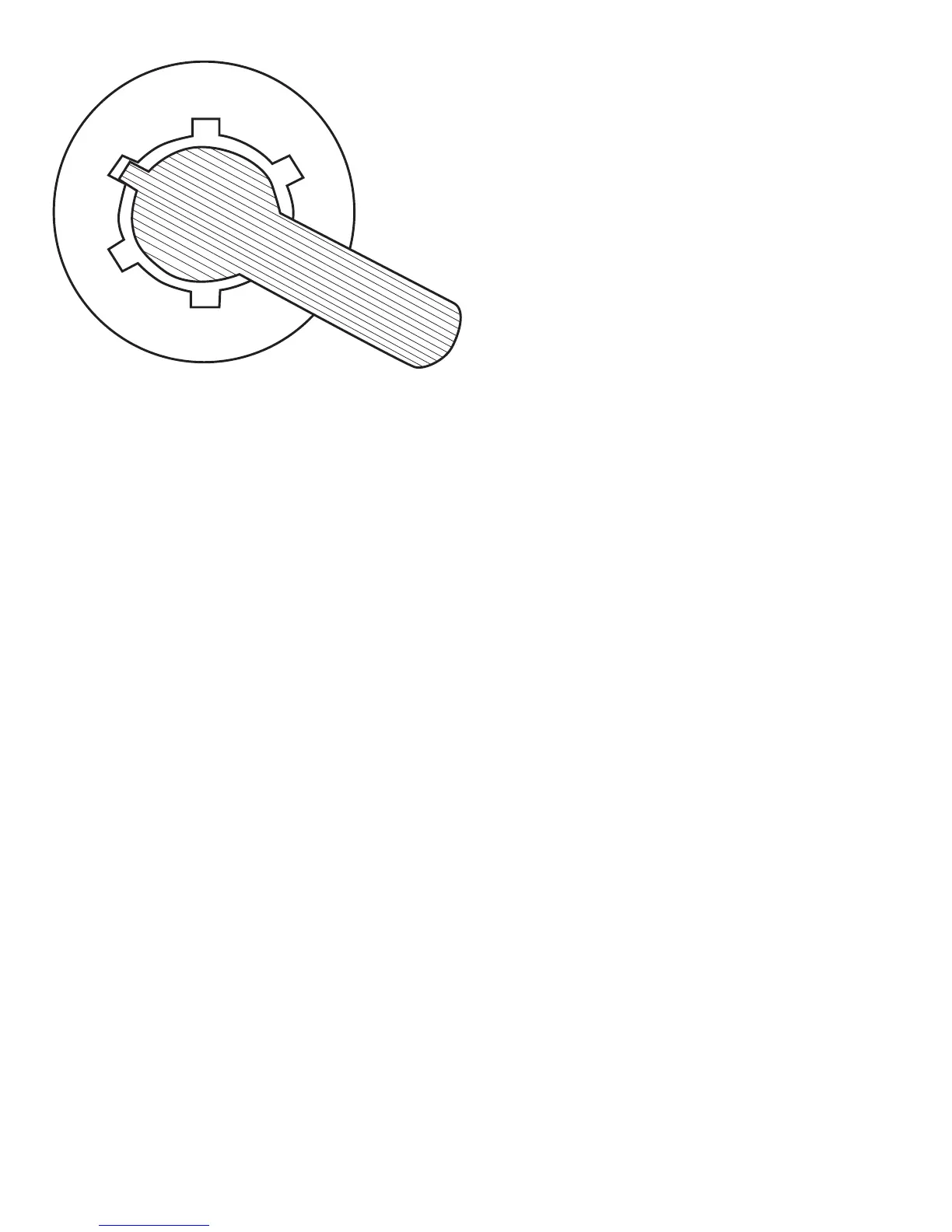

4. Depress and turn Handle 180º to the BACKWASH
position. In the BACKWASH position, the water
ow is automatically reversed through the lter so
that it is directed to the bottom of the lter vessel,
up through the sand, ushing the previously trapped
dirt and debris out the waste line.
5. Switch on the Pump. Open the Inlet Valve.
Backwash water will ow out through drain pipe.
6. When the backwash water in the sight glass
appears clear, Switch off the Pump. Close the Inlet
Valve.
Backwash
Filter
Close
Waste
Recirculate
