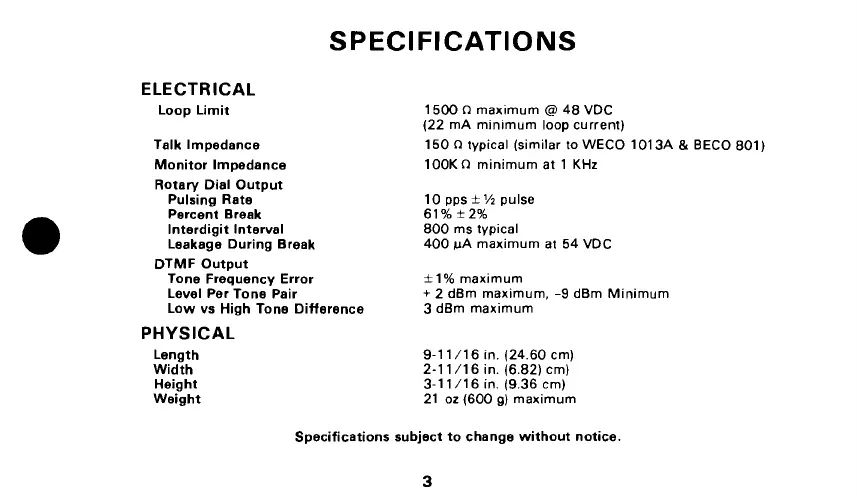

Harris Dracon TS21 - Specifications; Electrical and Physical Characteristics

ELECTRICAL
Loop Limit
Talk Impedance
Monitor lmpedance
SPECIFICATIONS
Rotary Dial Output
Pulsing Rate
Percent Break
Interdigit Interval
Leakage During Break
DTMF Output
Tone Frequency Error
Level Per Tone Pair
Low vs High Tone Difference
PHYSICAL
Length
Width
Height
Weight
1500
n maxlmum @ 48 VDC
(22
mA min~mum loop current)
150
n typical (similar to WECO 1013A & BECO 801)
lOOK n minimum at 1 KHz
10 pps * % pulse
61%*2%
800 ms typical
400
PA maximum at 54 VDC
+ 1% maximum
+ 2 dBm maximum, -9 dBm Minimum
3
dBm maximum
9-1 1 /16 in. (24.60 cm)
2-1 1 /16 in. (6.82) cm)
3-1
1 /16 in. (9.36 cm)
21 oz (600 g) maximum
Specifications subject to change without notice.
