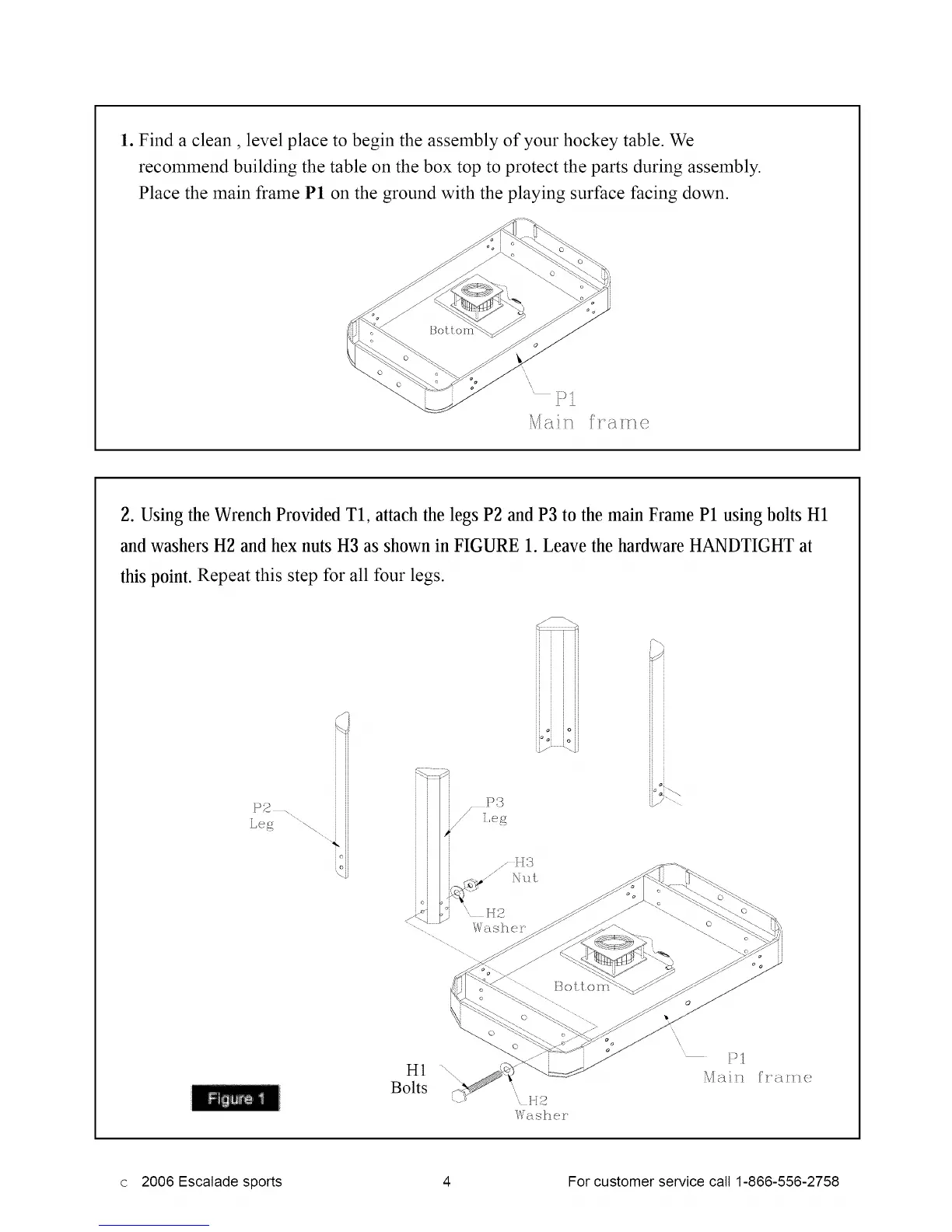

1. Find a clean, level place to begin the assembly of your hockey table. We
recommend building the table on the box top to protect the parts during assembly.
Place the main frame P1 on the ground with the playing surface facing down.
2. Using the Wrench Provided T1, attach the legs P2 and P3 to the main Frame P1 using bolts H1
and washers H2 and hex nuts H3 as shown in FIGURE 1. Leave the hardware HANDTIGHT at
this point. Repeat this step for all four legs.
jF_
P2 ...... i ii
Le _:r
ci
H1
Bolts
Kas_ er
c 2006 Escalade sports 4 For customer service call 1-866-556-2758
