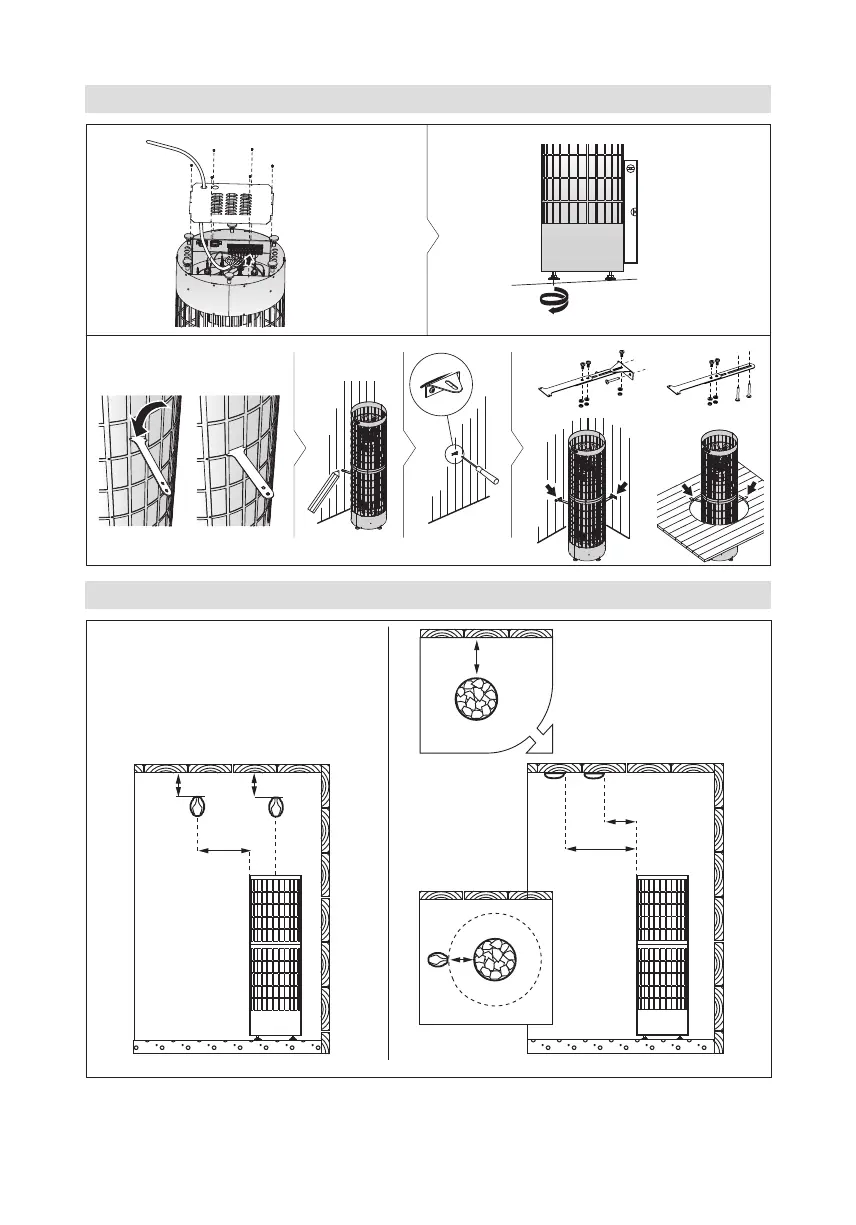

3. Installing the heater
1.
3.
2.
B
250>
100
400-450
350-400
100
300-400
A
AB
4. Installing the sensor (all dimensions in millimeters)
A= Overheat protector
(Delivered with the heater)
(Blue and white wire)
B = Thermostat
(Delivered with the control unit)
(Red and yellow wire)
