HAT MID HAT - Worksurface Mounting Guidelines; Rectangular Worksurfaces; Angular Worksurfaces

Recommended worksurfaces:
1-1/8" thick wood or laminate worksurface, various sizes, the largest
being 96" long x 30" wide (see Fig. 1 and Fig. 2 for recommended sizes).
Worksurfaces greater than 10 sq. ft. (0.93 sq. m.) shall be tested to ASTM
E84/(UL 723) and have a ame rating of 200 or less and either smoke rating
of 450 or less or be marked with the smoke rating.

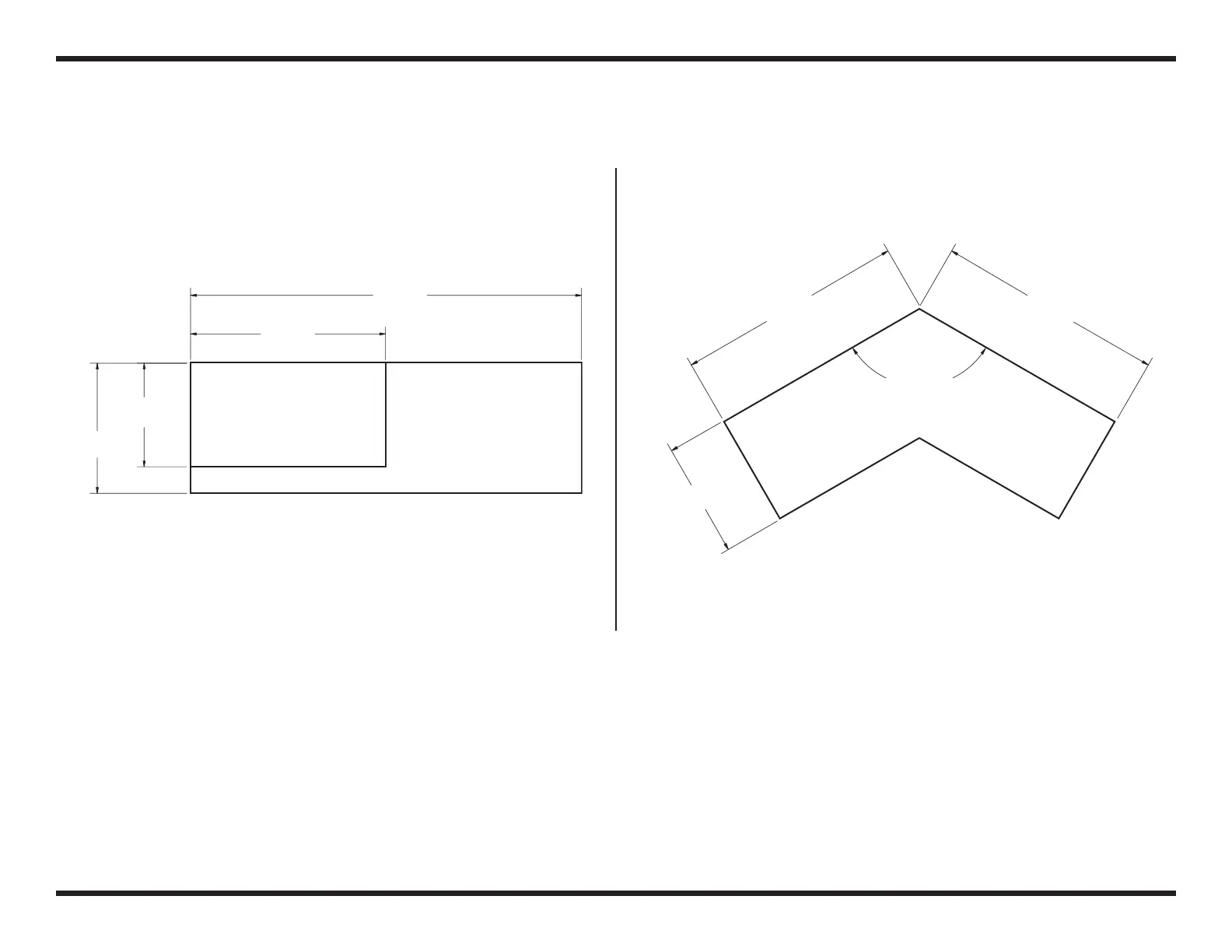

WORKSURFACE MOUNTING GUIDELINES
Recommended Rectangular Worksurfaces Recommended Angular Worksurfaces
36 - 42 in
(914.4 - 1066.8 mm)
36 - 42 in
(914.4 - 1066.8 mm)
24 - 30 in
(609.6 - 762.0 mm)
90° or 120°
Figure 2
24 - 30 in
(
609.6 - 762.0 mm)
24 - 30 in
(609.6 - 762.0 mm)
46 - 96 in
(1168.4 - 2438.4 mm)
HAT2-MID-S + HAT2-HI-S
HAT2-MID-L + HAT2-HI-L
Figure 1
28 - 45 in
(711.2 - 1143.0 mm)
PAGE 19 OF 22
