2L41C, 2M41, 2M41Z EPA CERTIFIED ENGINES
HATZ
107Operator’s Manual
6
7
8
1
2
3
4
5
9
10
13
12
11
15
16
14
17
18
19

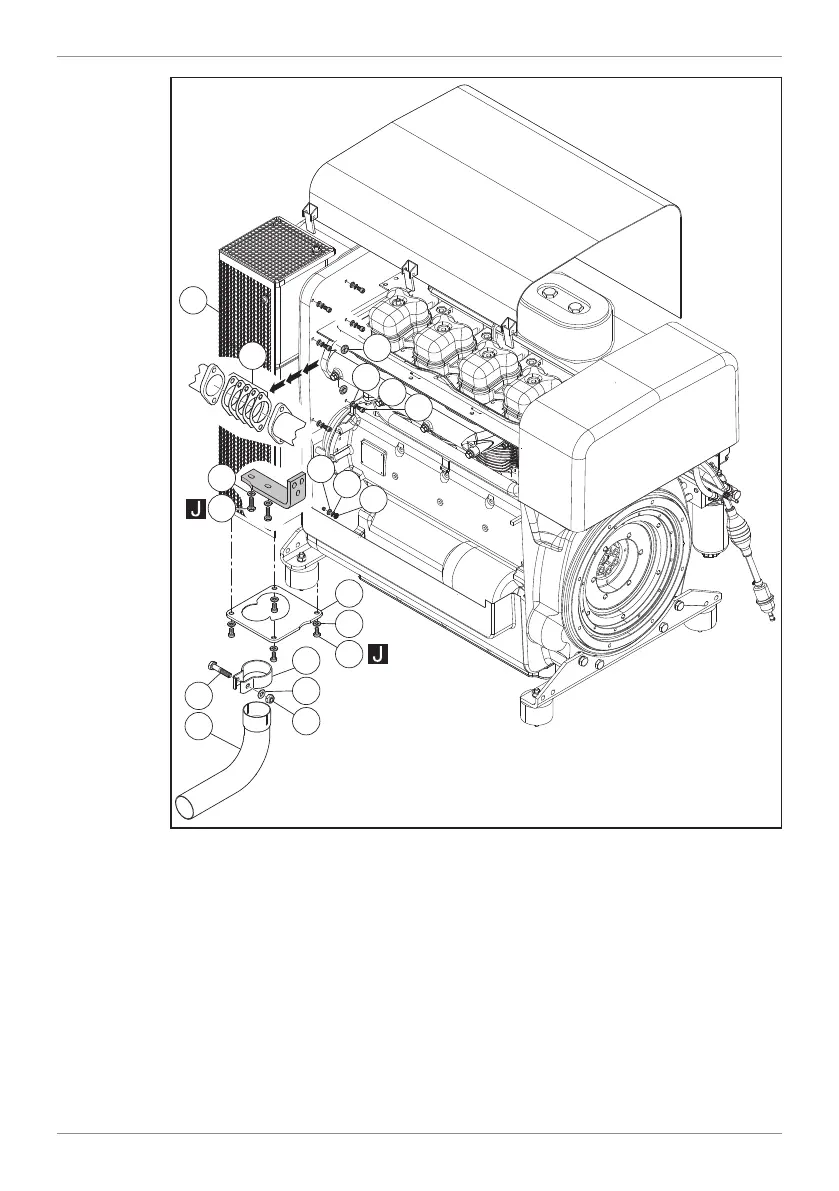

Sequence of dismantling the exhaust system:
▪ Open nut (1) and remove in numerical sequence (2...5).
▪ Open screws (6) and remove with shims (7) and plate (8).
▪ Open screws (9) and remove with shims (10).
▪ Open nuts (11) and remove with snap ring (12) and shim (13).
▪ Open all Allen screws (14) and remove with snap rings (15) and shims
(16).
▪ Open and remove both nuts (17).
▪ Remove silencer (19) with five identical gaskets (18).
