NOTICE
See also starting instructions in the documentation for the com-
plete machine.

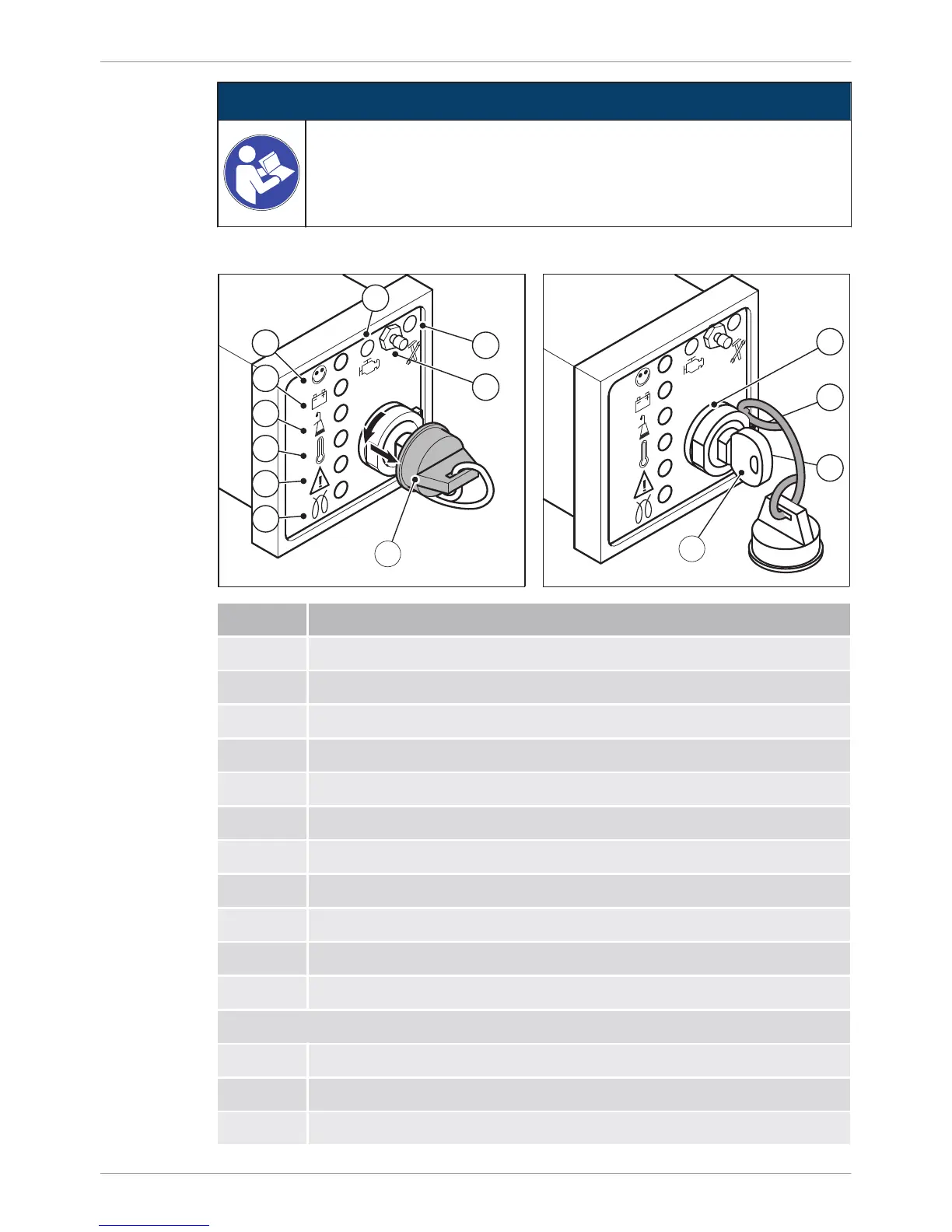

Overview — HATZ instrument boxes
4
II
I
6
7
8
9
10
11
5
0
1
3
2
Pos. Designation
1 Error diagnosis display
2 Service interval indicator
3 Button for error interrogation
4 Protective cap
5 Starting key
6 Pre glow display
7 Air filter service required
8 Engine temperature display
9 Oil pressure display
10 Charge control
11 Operating display
Ignition lock
0 Off
I Operation
II Starting
Operation and use 4H50TIC
