8.2.9 Changing the oil separator of the crankcase ventilation
Safety note
CAUTION
Danger of burns.
There is a danger of burns when working on a hot engine.
▪ Let the engine cool before maintenance.

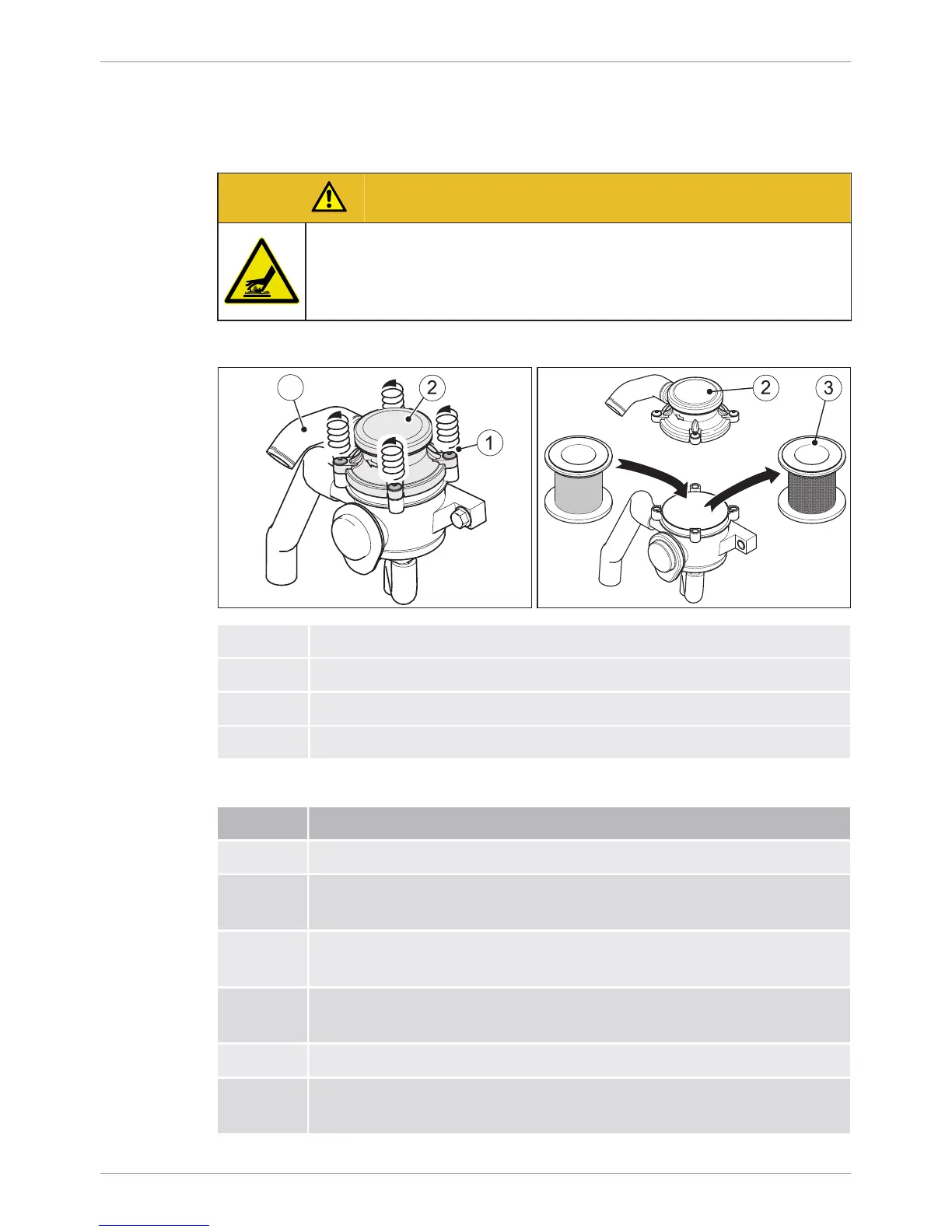

Overview
1 Mounting bolts (captive)
2 Breather cap
3 Oil separator cartridge
4 Vent hose
Procedure
Step Activity
1 Release the four mounting bolts (1) on the breather cap (2).
2 Carefully lift the breather cap. If necessary, release the vent
hose (4).
3 Remove the used oil separator cartridge dispose of it according
to local environmental regulations.
4 Wipe out the breather housing with a clean cleaning cloth. Make
sure that dirt is not brought into the breather housing.
5 Insert a new oil separator cartridge.
6 Put on the breather cap and tighten the four mounting bolts
(max. 4 Nm). If necessary, reattach the vent hose.
