Step Activity
3 Dispose of the old filter in accordance with local environmental
regulations.
4 Thoroughly clean the shaped element (3) and sealing surface
(4).
5 Lightly oil the sealing lip (5) of the new oil filter.
6 Screw in the oil filter and tighten it by hand.
7 Make sure that the guard ring (6) seats fully on the shaped ele-
ment (3). The guard ring prevents dirt from accumulating be-
tween the oil filter and shaped element.

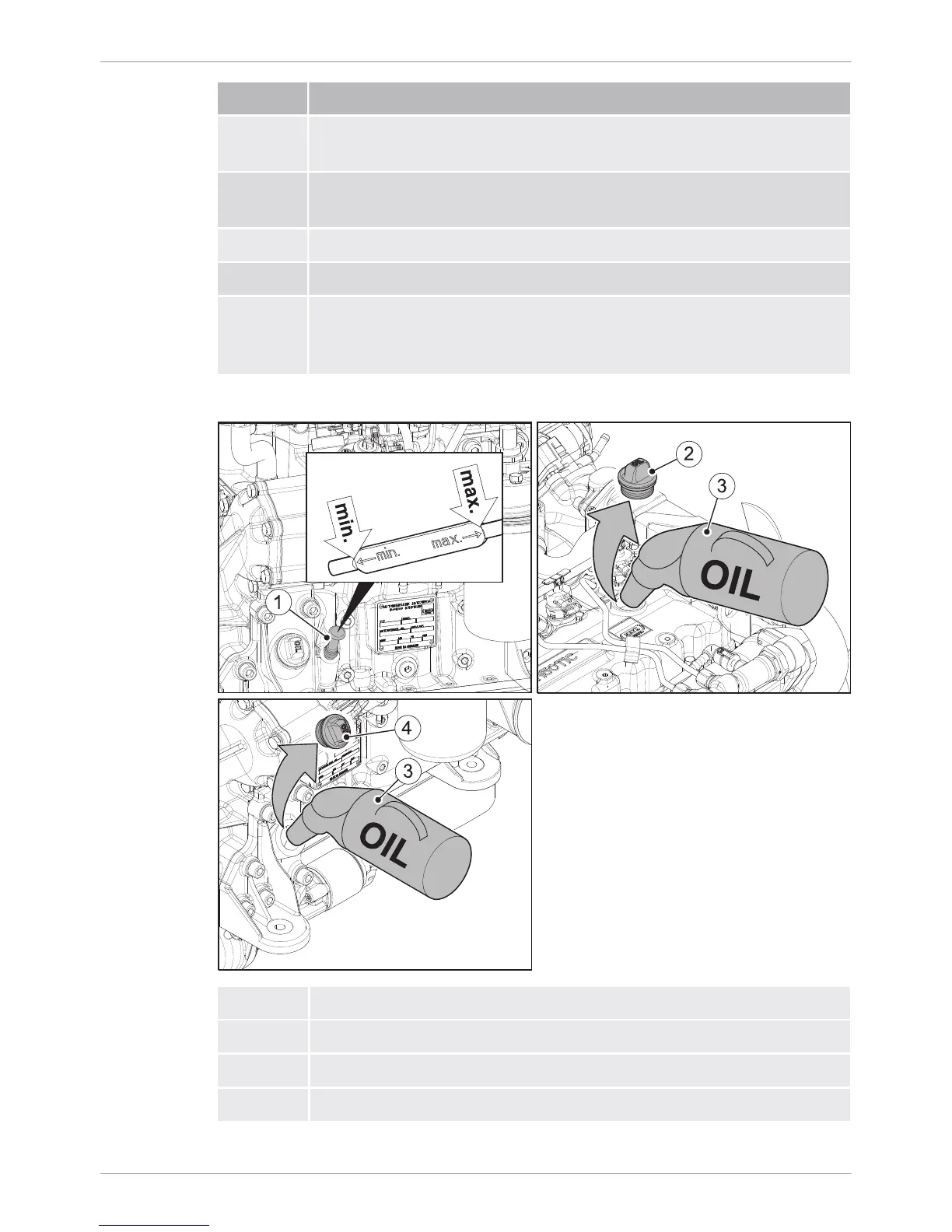

Overview of filling the engine oil
1 Dipstick
2 Oil filler plug, top
3 Oil refilling container
4 Oil filler plug, bottom
