16 - Every 1500 h hours of operation
16.1 - TRAVEL AXLES
The oil replacement operations must be performed periodically, respecting the maintenance
schedule provided.
It is recommended that you intervene immediately in the event of leaks or other faults that may
result in a drop in oil levels, to avoid any possible damage to the mechanical components.
Once you have removed the filling and drainage plugs, they should be refitted again and
tightened using a torque value recomended by the manufacturer.
Perform the first drainage after the first 250 hours of operation.
16.1.1 - Draining the front axle
Capacity :
• Transfer case : 0,5 l(0,13 gal US)
• Differential : 8 l(2,11 gal US)

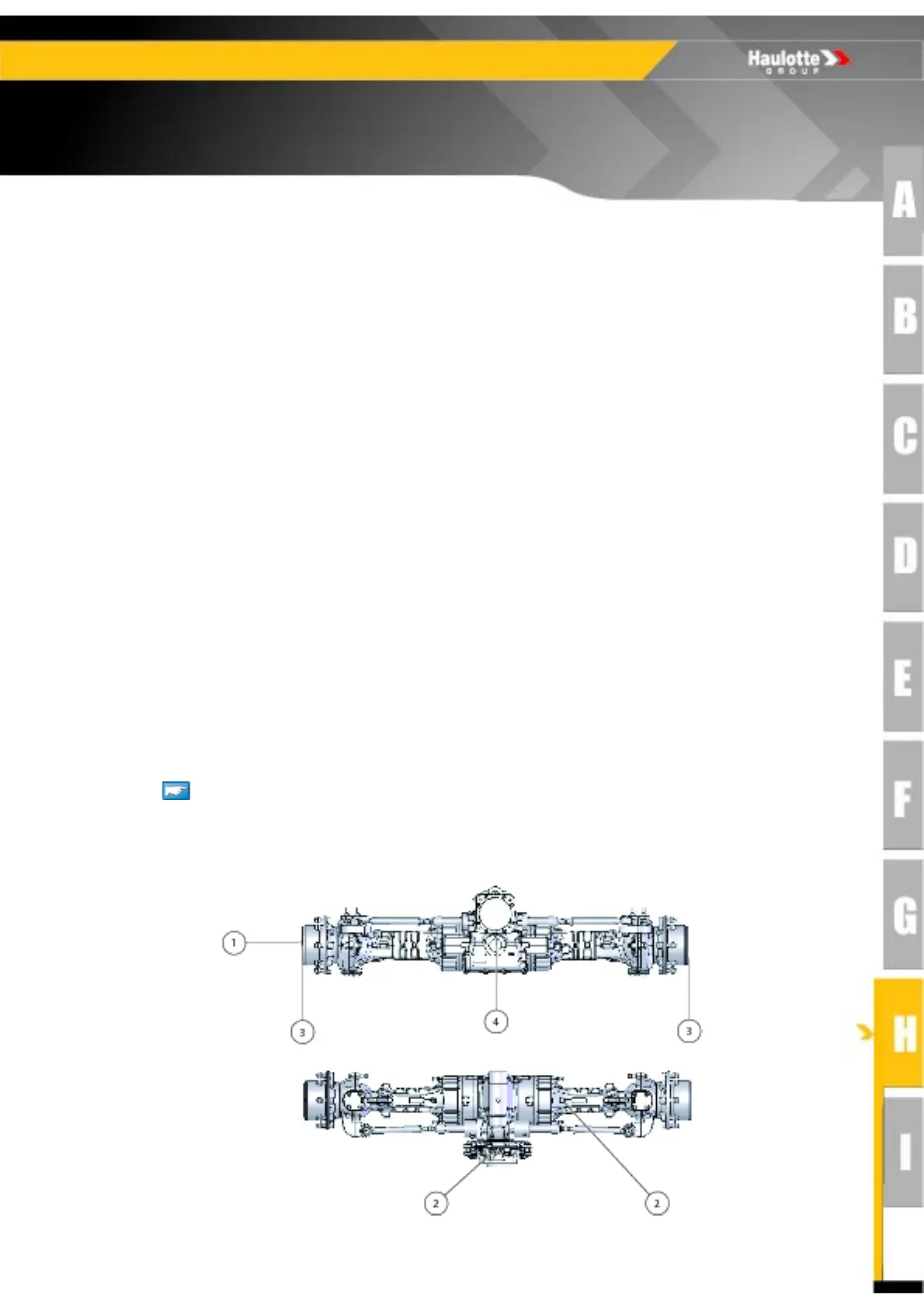

• Before performing the oil replacement operations, firstly remove the drain plugs ( 2 ) to eliminate any
pressure from inside the housing.
• Loosen the drain plug ( 4 ) and let the oil drain out.
• Refit and tighten the drain out ( 4 ).
• Loosen the control plug ( 1 ).
• Fill the axle with oil to the level of the control plug ( 1 ).
• Refit the control plugs ( 1 ) and the drain plugs ( 2 ).
Section H 20.3 -Refer to the Lubricants and equivalents table for the type of oil used.
• Take advantage of this operation to clean the drain plugs ( 2 ).
