3.4 ELECTRIC CONTROL LOCATIONS
3.4.1 Pendant Control Location
The pendant is located in the pendant holder on
the back of the chair (Figure 3-4).
This chair is equipped with a battery back up for
transport but the unit should be plugged into a
wall receptacle when not in transport. The plug
is located on the back of the base cover (Figure
3-5). Do not position the unit so that it is difcult
to disconnect the plug.
s NOTICE: Place pendant in holder when not
in use. Keep cord clear of moving parts.
3.4.2 Plug Location
This chair is equipped with a battery back up for
transport but the unit should be plugged into a
wall receptacle when not in transport. The plug
is located on back of the base cover (Figure 3-5).
Do not position the unit so that it is difcult to
disconnect the plug.
Important: It is recommended that unit remain
plugged in wall receptacle during normal use.
Battery back-up is recommended for transport
and emergency only.
3.4.3 Low Battery Light (LED)
This chair is equipped with a low battery
indicator light, located on top of the base cover
of the patient’s left (Figure 3-6). When a button
on the pendant is pressed, and the LED light
illuminates, it indicates that the backup batteries
require charging; plug the unit into the wall
receptacle.

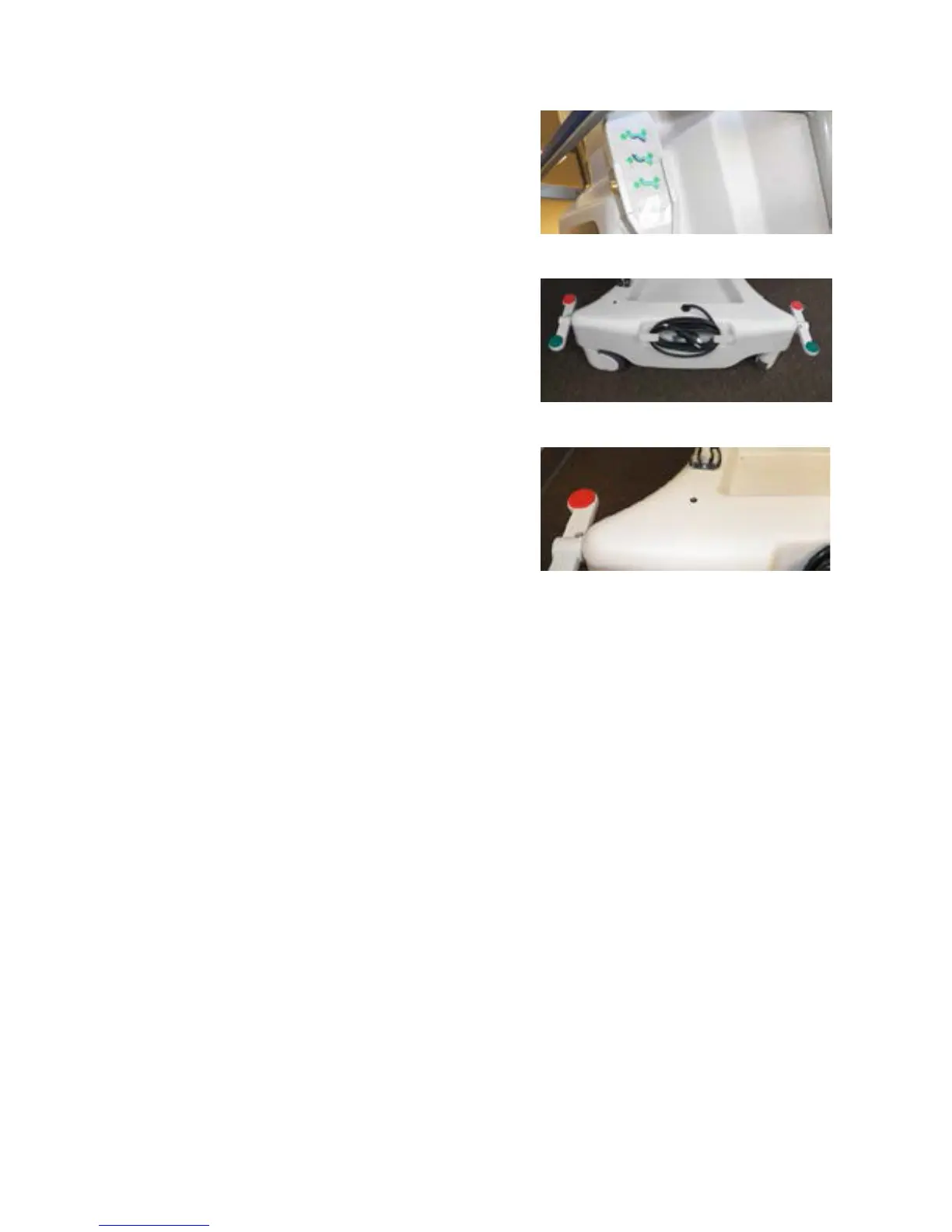

FIGURE 3-4
FIGURE 3-5
FIGURE 3-6
