Hawker 800 XP - Air Jet Pump; Pressure Regulators; Fan-Operated Venturi

HAWKER 800 XP PILOT TRAINING MANUAL
FlightSafety
international
12-3
FOR TRAINING PURPOSES ONLY
TEST
CABIN ALT
ROOF
PANEL
PRESSN
OVRD
AUTO
AIRFLOW
FAN-OPERATED VENTURI
(GROUND OPERATED)
CHECK
VALVE
CABIN AIR
CABIN AIR
CABIN AIR
AIR JET PUMP
VENTURI
CABIN
OUTFLOW
AIR
AMBIENT
AMBIENT
CABIN AIR
TRUE STATIC
AMBIENT
BLEED
AIR
PRESSURE
REGULATOR
(OPEN)
OUTFLOW/SAFETY VALVE (OPEN)
CABIN AIR
AMBIENT
AMBIENT
CABIN AIR
TRUE STATIC
AMBIENT
MANUAL
CABIN
ALTITUDE
CONTROL
MANUAL
SHUTOFF
VALVE
(GROUND
PRESS
TEST)
PNEUMATIC
RELAY
PNEUMATIC
RELAY
RATE SELECTOR
ALTITUDE SELECTOR
PRESSURE
REGULATOR
(CLOSED)
OUTFLOW/SAFETY VALVE (CLOSED)
LEFT MAIN
LANDING GEAR
MICROSWITCH
COPILOT'S SIDE CONSOLE
CABIN
ALTITUDE
CABIN AIR
CABIN AIR
SENSE PORT
AUXILIARY
VOLUME TANK
CABIN AIR
LEGEND
SUCTION
ENGINE
BLEED AIR
CABIN AIR
AMBIENT AIR
ELECTRICAL
MECHANICAL
FAN CONTROL
RELAY

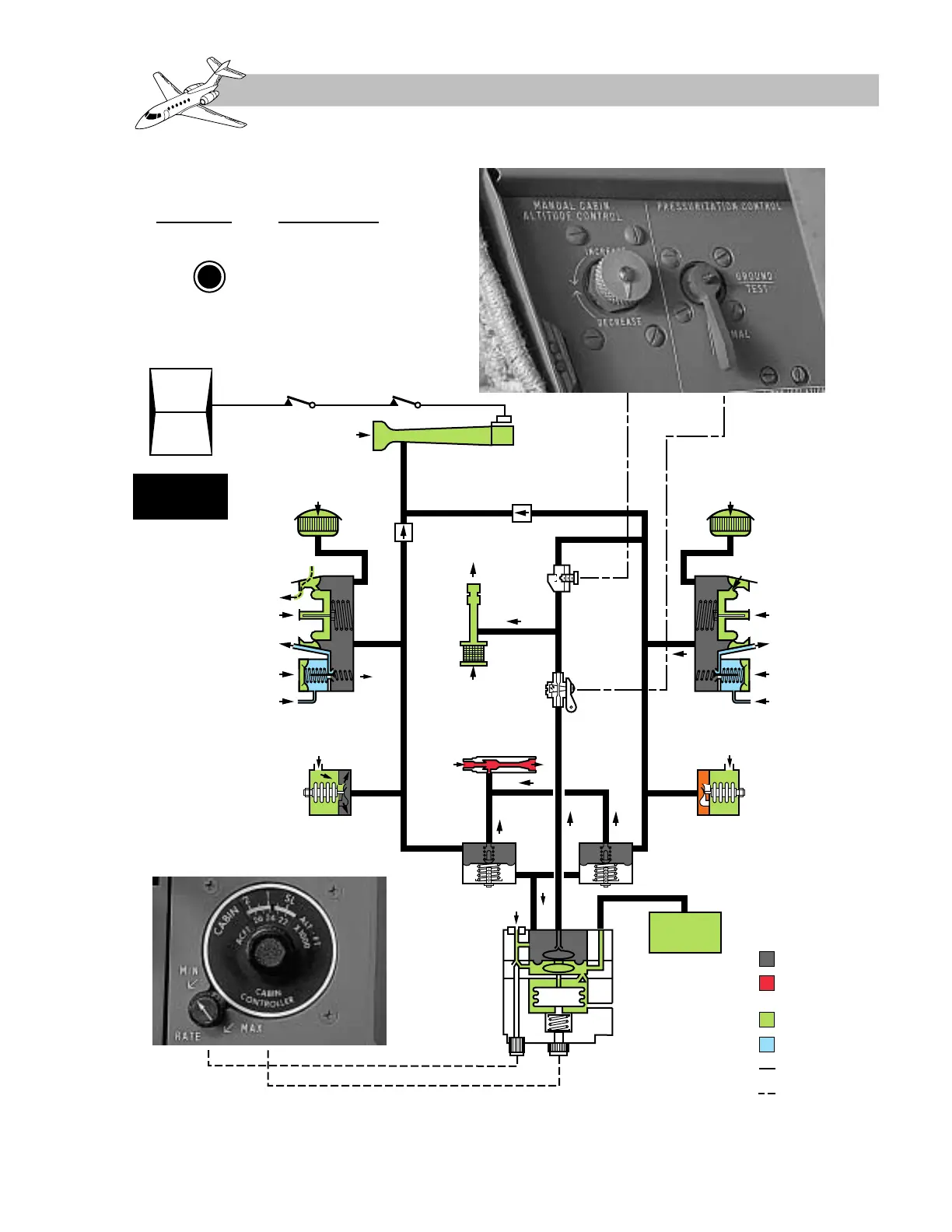

Figure 12-1. Pressurization System Diagram
