08/18 Model 2000SMS Page 6 of 6

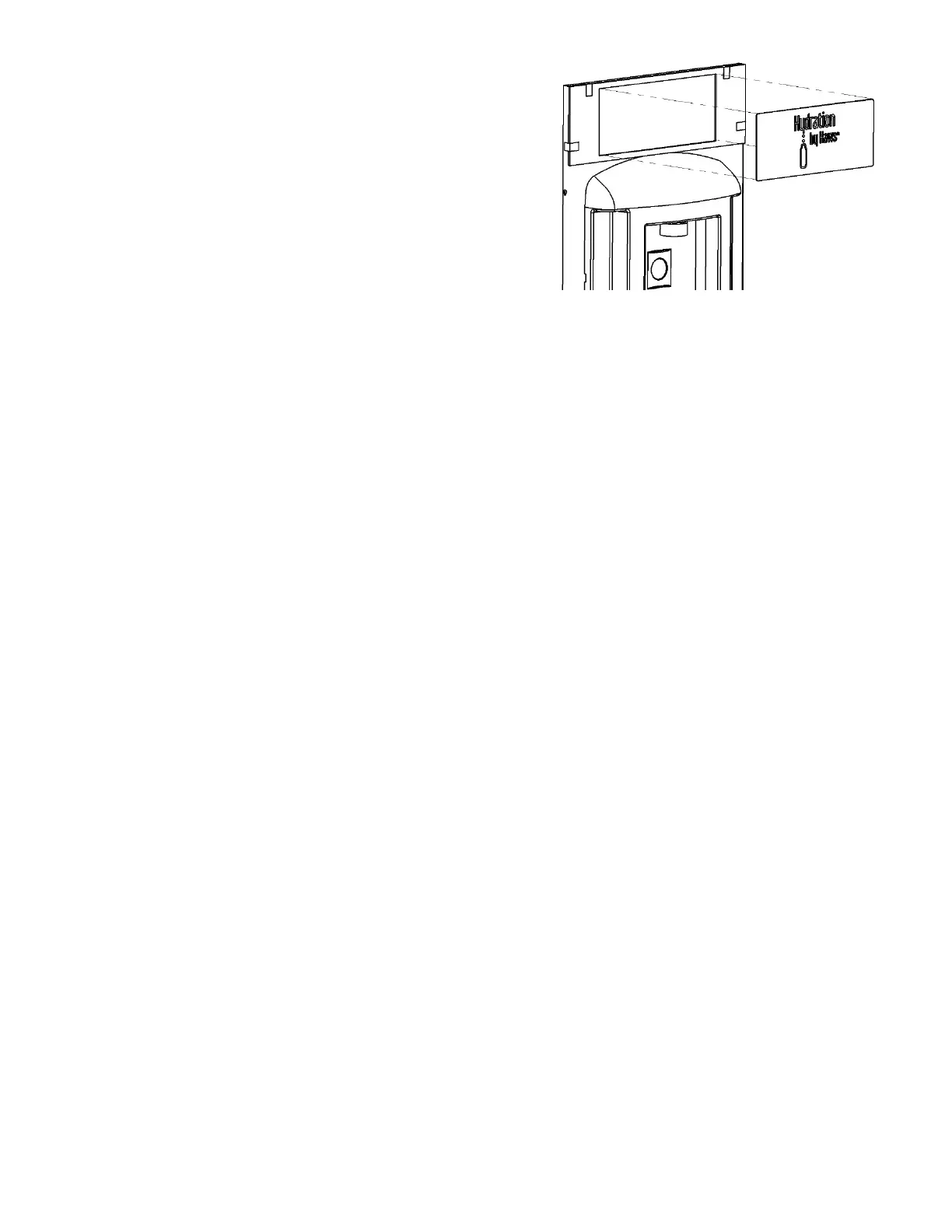

Step 11: Clean the front of the bottle filler to remove
any grease or contaminants. Tape the
cardboard template onto the front of the
bottle filler, aligning the top and sides flush
with the bottle filler panel (see Step 11
Diagram). Remove the adhesive backing
from the logo plate and carefully place into
the window of the alignment template. Press
firmly to secure the logo plate. Remove and
discard the cardboard template.
