CONFIGURATION 2
Make sure you have finished the first
steps with mounting connectors and
the first wall bracket before going
ahead with the next step.

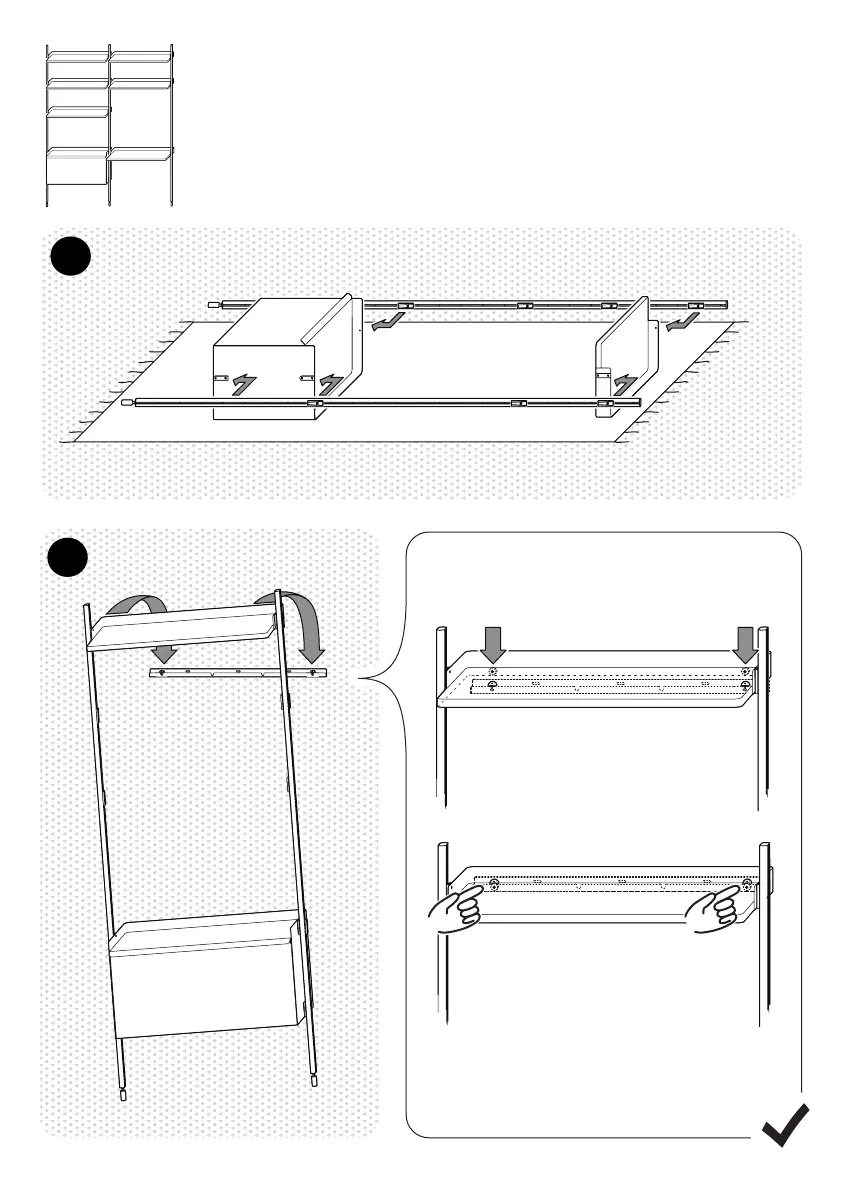

1. Start by laying a Cabinet
P and a
Shelf
I down on their backs. Then
fasten them to the pre-assembled
connectors on the Profiles
A by
sliding them into the cut-outs.
2. Lift the shelf onto the pre-mounted
Wall bracket
H .
16
