Hay PIER SYSTEM - How to Secure the Pier System to the Wall

– SECURING TO THE WALL –

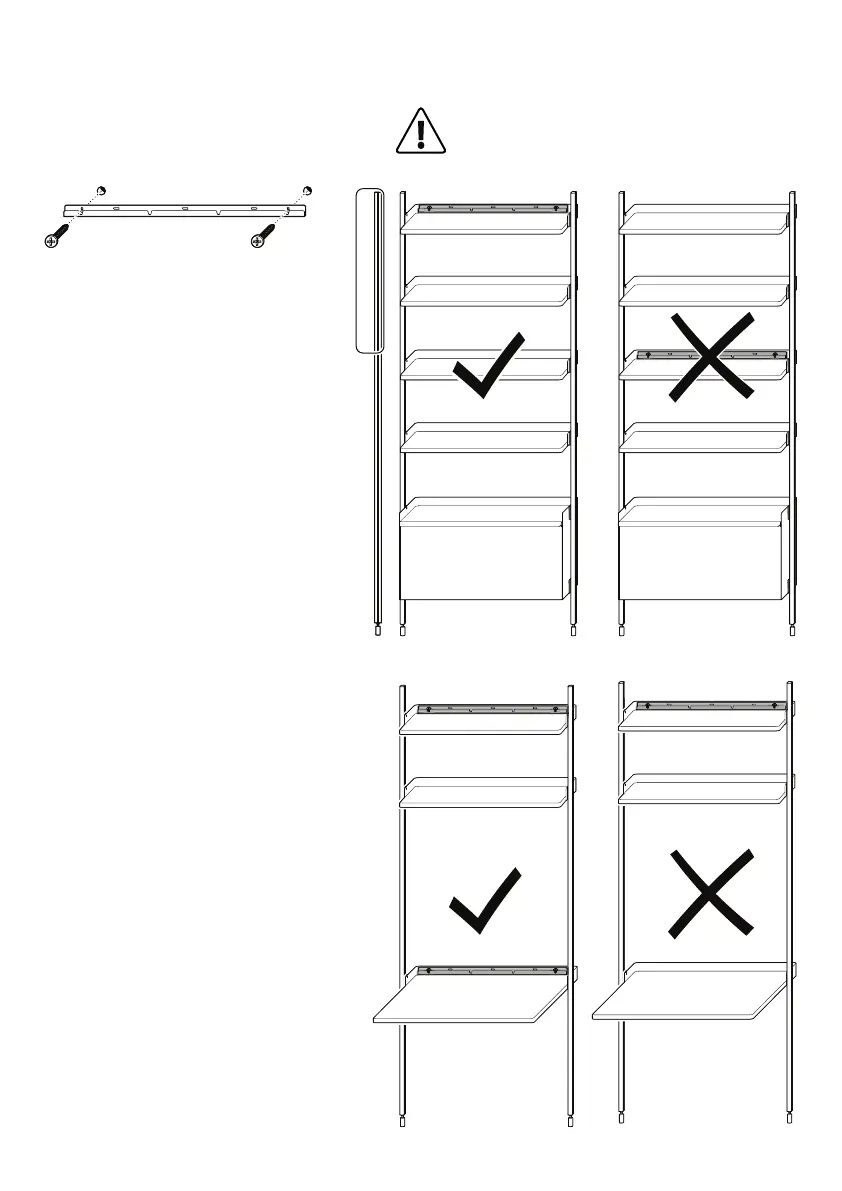

Pier System is secured to the wall
with a wall bracket. The wall bracket
must be connected to a shelf that is
mounted above the 14th hole in the
profile, counting from the bottom.
This is to ensure the overall stablilty
of the unit.
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
If your Pier System configuration
includes a Work desk shelf, it must be
connected to a Work desk wall bracket
fastened to the wall. A regular shelf,
connected to a wall bracket fastened
to the wall, must also be connected to
the same upright profiles as the Work
desk shelf.
