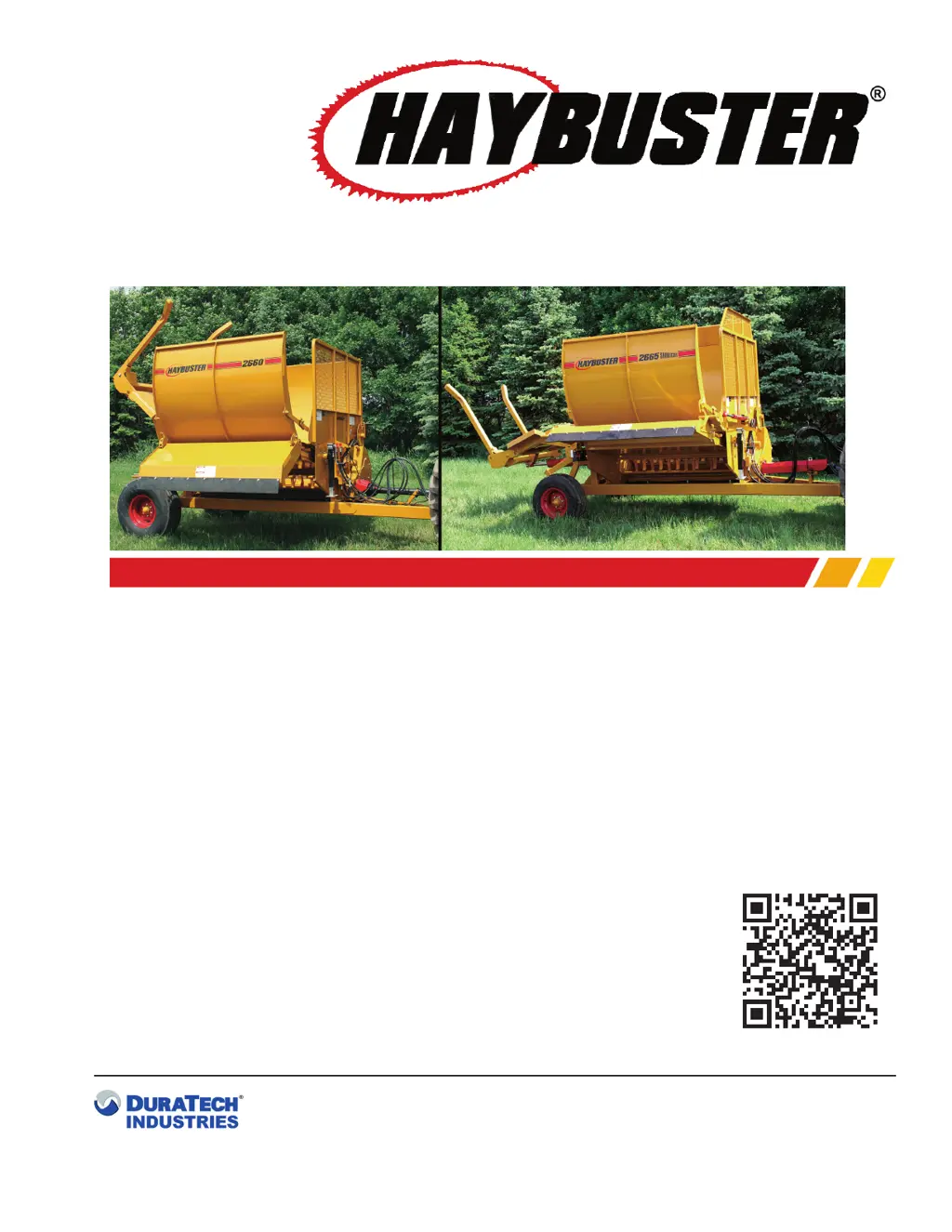

Operating Instructions and Par
ts Reference
2660 - Serial Number 26
1
5000
1
60 & Up
2665 - Serial Number 26
1
5000
1
65 & Up
TM
P
roduct
I
nforma
tIon
2
Table of Contents
Table of Contents
7
Part I: Operating Instructions
11
Introduction
12
Purpose
12
Section 1: Safety
14
Safety-Alert Symbols
14
Operator - Personal Equipment
16
Machine Safety Labels
17
Shielding
19
Safety Review Section
19
Towing/Road Transport
20
Section 2: Dealer Preparation
21
Pre-Delivery Inspection
21
Shipping List and Illustration for the 2660/2665 BALEBUSTER
22
Assembly Required
24
Section 3: Operation
26
Pre-Starting Inspection Instructions
26
Normal Shutdown Procedure
27
Adjustments
27
Hitch Adjustment
27
Shield
27
Conveyor Speed Control
28
Chain Case Adjustments
29
Conveyor Chain Adjustment
29
Slugbar Adjustment
30
Clean out Door
30
Flails
31
Stripper Plate
31
Loader
32
Tires & Rims
34
Loader Transport Pin
34
Hydraulic Cylinder and Valve
34
Rack
35
Jack
35
Changing Distribution Pattern
36
Hitching the 2660/2665 BALEBUSTER
37
Unhitching the 2660/2665 BALEBUSTER
38
Starting the Machine
38
Loading the Bale
40
Shredding the Bale
41
Twine Removal
42
Transporting the 2660/2665 BALEBUSTER
42
Storing the 2660/2665 BALEBUSTER
43
Removing the 2660/2665 BALEBUSTER from Storage
43
Section 4: Lubrication
44
Lubrication
44
Grain Tank (Option)
49
General Appearance
49
Section 5: Troubleshooting
50
Section 6: 2660/2665 Balebuster Options
51
Grain Tank Operation (Option)
51
Grain Tank (Option) Calibration Procedure
52
Hydraulic Deflector (Option)
54
Hydraulic Slug Bar (Option)
55
Containment Flap (Option)
56
Containment Extensions (Option)
56
Section 7: Maintenance
57
Welding Procedure
57
Appendix A: WARRANTY
58
Appendix B: 2660/2665 Specifications
59
Appendix C: Grain Tank (Option) Specifications
60
Part II: Parts Reference
61
2660 Shredder Assembly - Front
62
2660 Shredder Assembly - Door
64
2660 Shredder Assembly - Slugbar
66
2660 Shredder Assembly - Rotor (S.n. 0001 Thru 0005)
68
2660 Shredder Assembly - Rotor (S.n. 0006 and Up)
70
2660 Shredder Assembly - Floor Pan
72
2665 Shredder Assembly - Front
74
2665 Shredder Assembly - Door
76
2665 Shredder Assembly - Slugbar
78
2665 Shredder Assembly - Rotor (S.n. 0001 Thru 0005)
80
2665 Shredder Assembly - Rotor (S.n. 0006 and Up)
82
2665 Shredder Assembly - Floor Pan
84
Rear Shield
86
Manual Canister Assembly
88
Loader Mount and Tines Assembly
90
Rack and Deflector Assembly
92
2665 Conveyor Assembly (S.n. 0001 Thru 0005)
94
2665 Conveyor Assembly (S.n. 0006 & Up)
96
2665 Drive Chain Assembly (S.n. Thru 0005)
98
2665 Drive Chain Assembly (S.n. 0006 and Up)
100
Standard Drive Line Assembly
102
Constant Velocity Drive Line Assembly
104
Main Frame Assembly
106
2660 Wheel and Bearing & 2665 Wheel and Bearing
108
Pto Assembly #3600459
110
Pto Assembly #3600684
112
Hydraulic Hoses and Fittings
114
Orbit Motor
116
Flow Control Valve
117
Flow Control Valve 4000331
118
Hydraulic Deflector (Option)
120
Hydraulic Slugbar (Option)
122
Containment Extensions (Option)
124
Containment Flap (Option)
126
Optional Wide Deflector Belt
128
Taillight - Std. Mounting
130
Optional Taillight - Fender Mounting (Use with Highway Tires Only)
132
5701079 Shredder Tail Light Schematic
134
Optional Fender
136
Grain Tank (Option) Assembly (O-Ring)
138
Grain Tank (Option) Assembly (O-Ring) - Details A&B
139
Grain Tank (Option) Assembly (O-Ring) - Tank Details
140
Grain Tank (Option) Assembly (O-Ring) - Parts List
141
Grain Tank (Option) Hydraulics Details (O-Ring)
142
2660 Stripper Bar (Option) Installation & 2665 Standard Stripper Bar Installation
144
Weigh Scale - Load Cell (Option)
146
Axle Extensions (Option)
148
Decals
150
Decal Locations
152
2660/2665 Balebuster Documentation Comment Form
