Installation
Mounting angle and mounting direction
The Engage can be mounted at any angle and in any direction. It must be mounted in a location that
the driver can see and read the display. The driver must be able to reach and operate the manual
slide.
MANUAL OVERRIDE
SLIDE LEVER
DIGITAL DISPLAY
SETUP ADJUSTMENT
BUTTONS

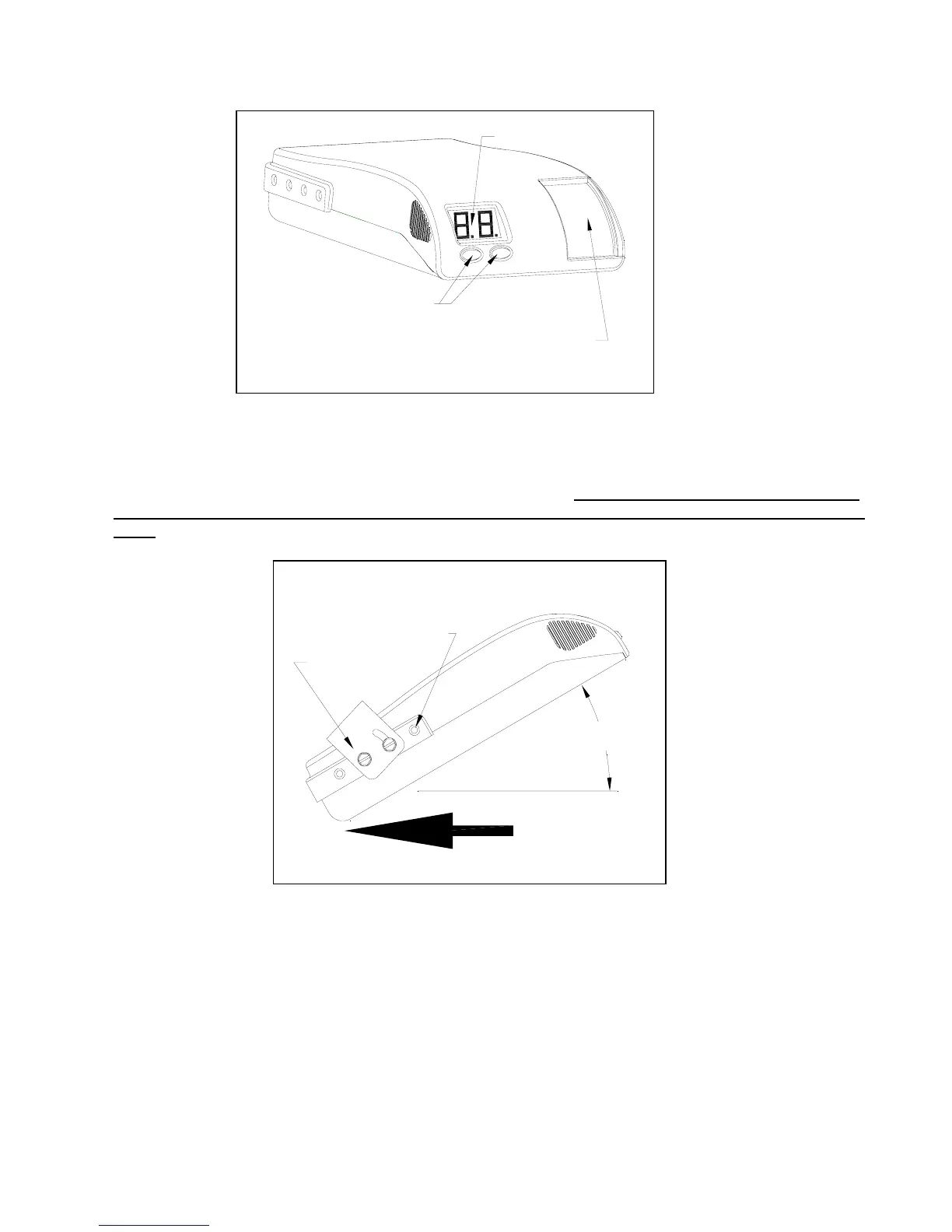

Figure 1 – Front View of Engage
Acceptable Mounting Positions
Any Direction
Anchor Holes
(4 ea. side)
Any Angle
MOUNTING
BRACKET
Figure 2 – Acceptable Mounting Angles
