5B•12 Ignition system

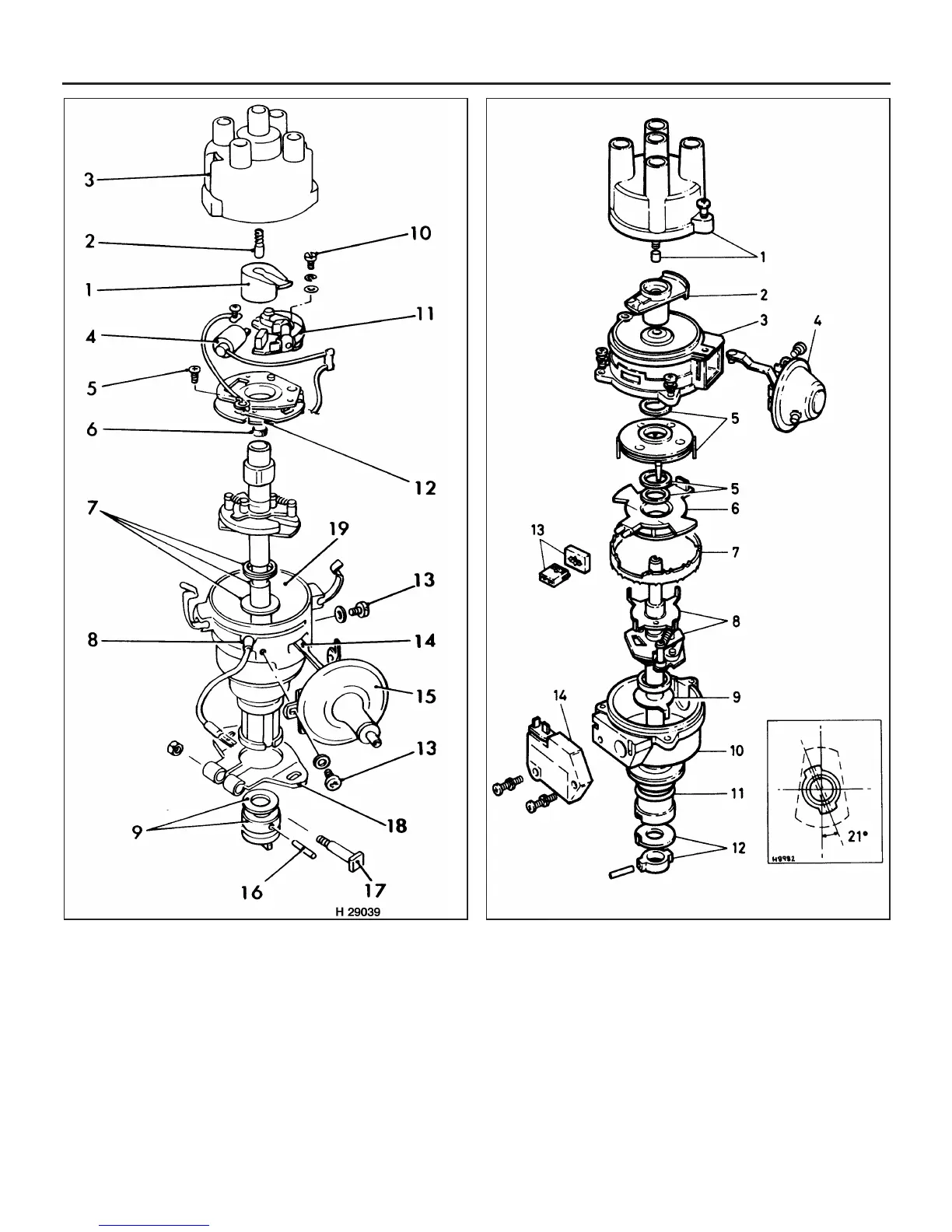

9.16 Exploded view of Lucas 45D4 distributor (59D4 similar)
1 Rotor
2 Carbon brush and spring
3 Cap
4 Condenser (capacitor)
5 Baseplate securing screw
6 Felt pad
7 Shaft assembly with steel
washer and spacer
8 Low tension lead and
grommet
9 Drive dog and thrust washer
10 Contact set securing screw
11 Contact set
12 Baseplate
13 Vacuum unit retaining
screws and washers
14 Vacuum unit link
15 Vacuum unit
16 Parallel pin
17 Pinch bolt and nut
18 Lockplate
19 Distributor body
9.22 Exploded view of the Lucas 65DM4 electronic ignition
distributor
1 Distributor cap, carbon brush
and spring
2 Rotor arm
3 Upper housing
4 Vacuum unit
5 Stator pack, thrust washers
and circlip
6 Pick-up winding
7 Clamp ring
8 Reluctor, centrifugal advance
mechanism and shaft
assembly
9 Thrustwasher
10 Lower housing
11 O-ring
12 Drive dog and thrustwasher
13 Connector and gasket
14 Amplifier module
Inset indicates correct rotor arm-to-drive dog offset (for carburettor models)
