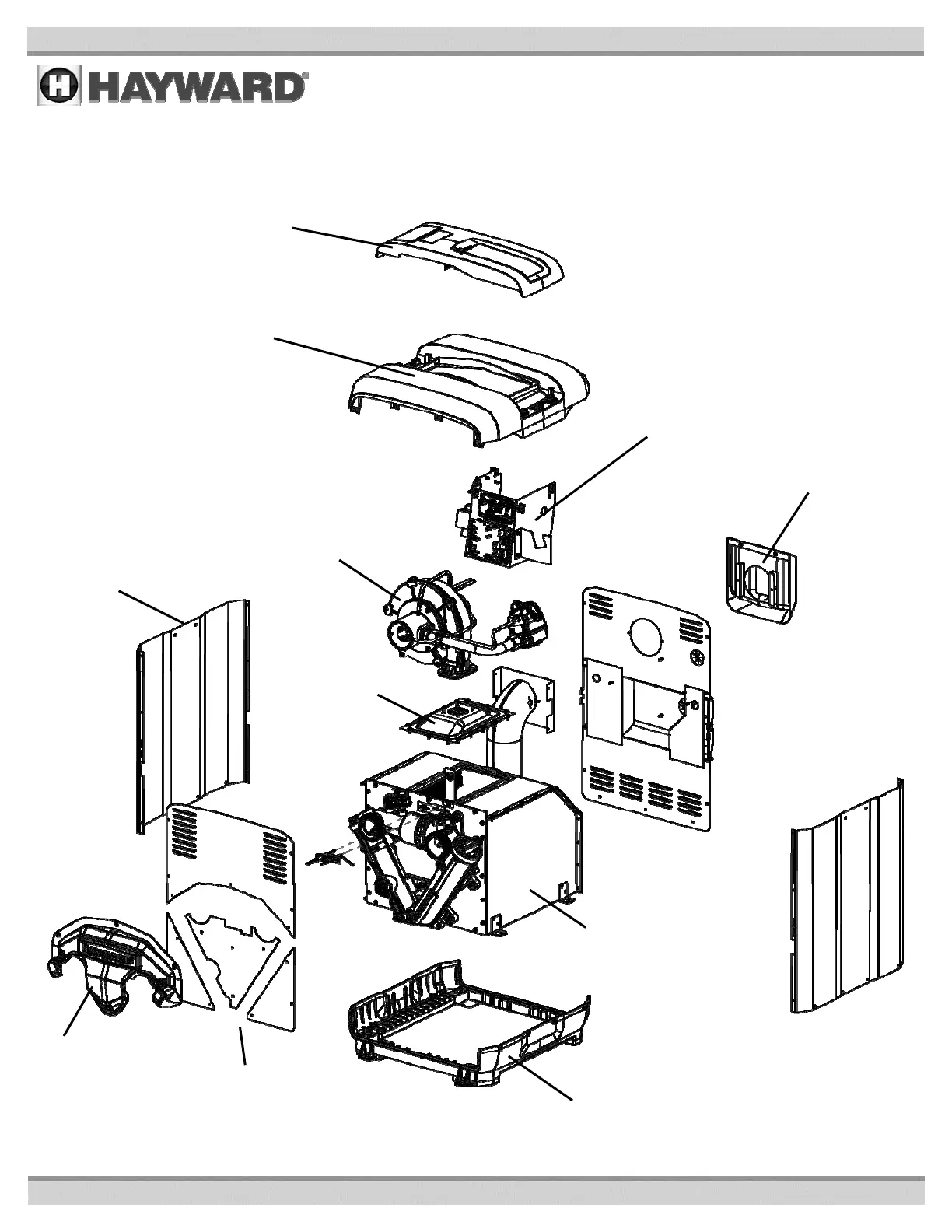

Figure 1: HEATER CONSTRUCTION AND SUB-ASSEMBLIES
Control Access
Panel Assembly
Cabinet Top
Control Assembly
Exhaust Box
Assembly
Combustion Bower
and Gas Manifold
Assemblies
Burner
Combustion Chamber
Assembly
Cabinet Base
Header Controls
Cover
Water Side
Panels
Exhaust Side
Panel
Zero Clearance
Panel (Both Sides)
