Hayward HLWALLMOUNT - Daisy Chain Wiring

Daisy Chain: The second (furthest) HLWALLMOUNT is wired to the first (connection made at first
HLWALLMOUNT) and the second HLWALLMOUNT must not exceed the maximum distance from
OmniLogic. Connect 1 to 1, 2 to 2, etc.
After wiring is complete, reinstall the HLWALLMOUNT cover. Reinstall the OmniLogic dead front
and restore power to the OmniLogic.
Remote Terminal
Refer to Table for
maximum distance
1
2
3
4

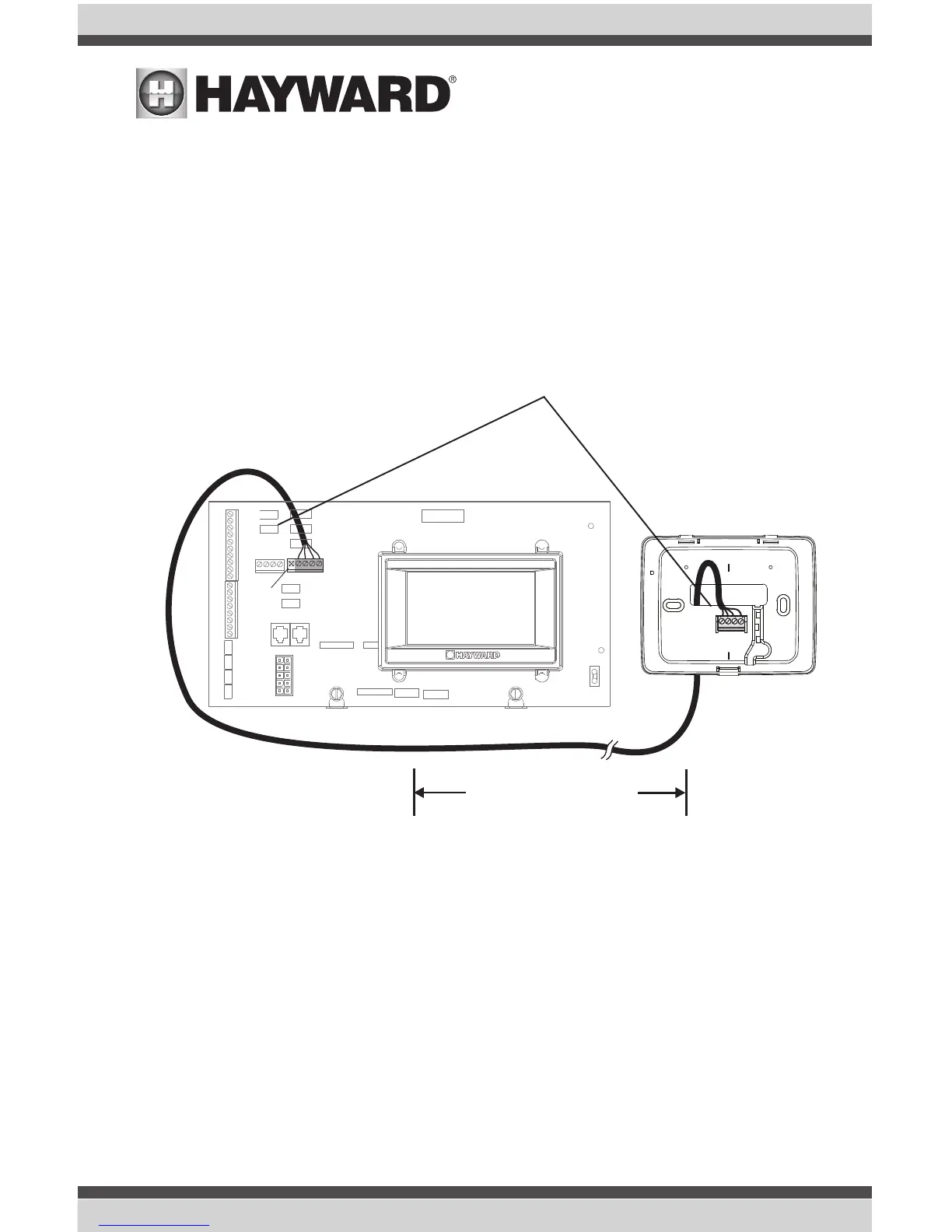

OmniLogic Main Board
Connect screw terminals
“1” to “1”, “2” to “2”, etc.
1
2
3
4
5
Pin 5
not used
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
5
