Hayward S310T User Manual

SPECIFICATIONS
MODEL
NUMBER
S310T
EFFECTIVE
FILTRATION AREA
FT
2
M
2
4.9 0.46
DESIGN
FLOW RATE*
GPM LPM
98 371
PRESSURE LOSS AT
DESIGN FLOW RATE*
PSI BAR
4.7 0.33
MAXIMUM WORKING
PRESSURE
PSI BAR
50 3.45
REQUIRED CLEARANCE
SIDE ABOVE
INCH MM INCH MM
18 457 18 457
MEDIA REQUIRED
TYPE AMOUNT
FILTER SAND** LBS KGS
0.45-0.55 500 227
*Based on 20 GPM/ft.
2
or 814 LPM/m
2
(maximum allowable NSF rating).
**Also known as No. 20 or No. 1/2 Silica Sand.

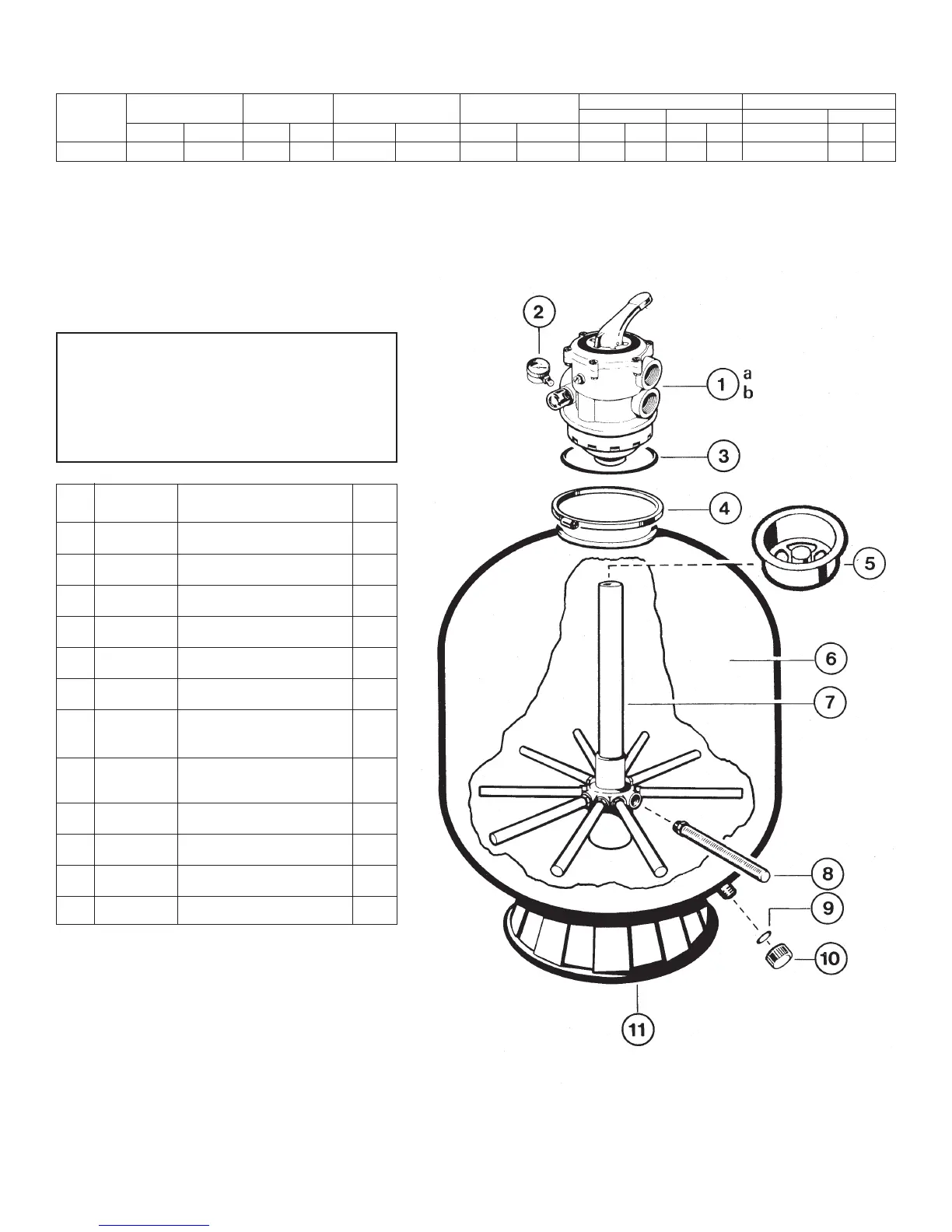

PARTS
Model S310T
REF.
NO.
1a
1b
2
3
4
5
8
9
10
11
SP071113
SP071620
ECX27081
GMX600F
SX310N
SX202S
SX310HA
SX180G
SX180H
SX310J
PART NO.
DESCRIPTION
Vari-Flo Control Valve - 1-1/2”
Vari-Flo Control Valve - 2”
Pressure Gauge
Valve/Tank O-Ring
Flange Clamp (Valve - Tank)
Sand Shield
Filter Tank with Skirt,
Drain and Lateral Ass’y.
Lateral Assembly with
Center Pipe
Lateral
Gasket
Drain Cap
Filter Support Stand (Skirt)
6
7
SX310DA
SX310AA1
NO.
REQ’D.
1
1
1
1
1
1
10
1
1
1
1
1
