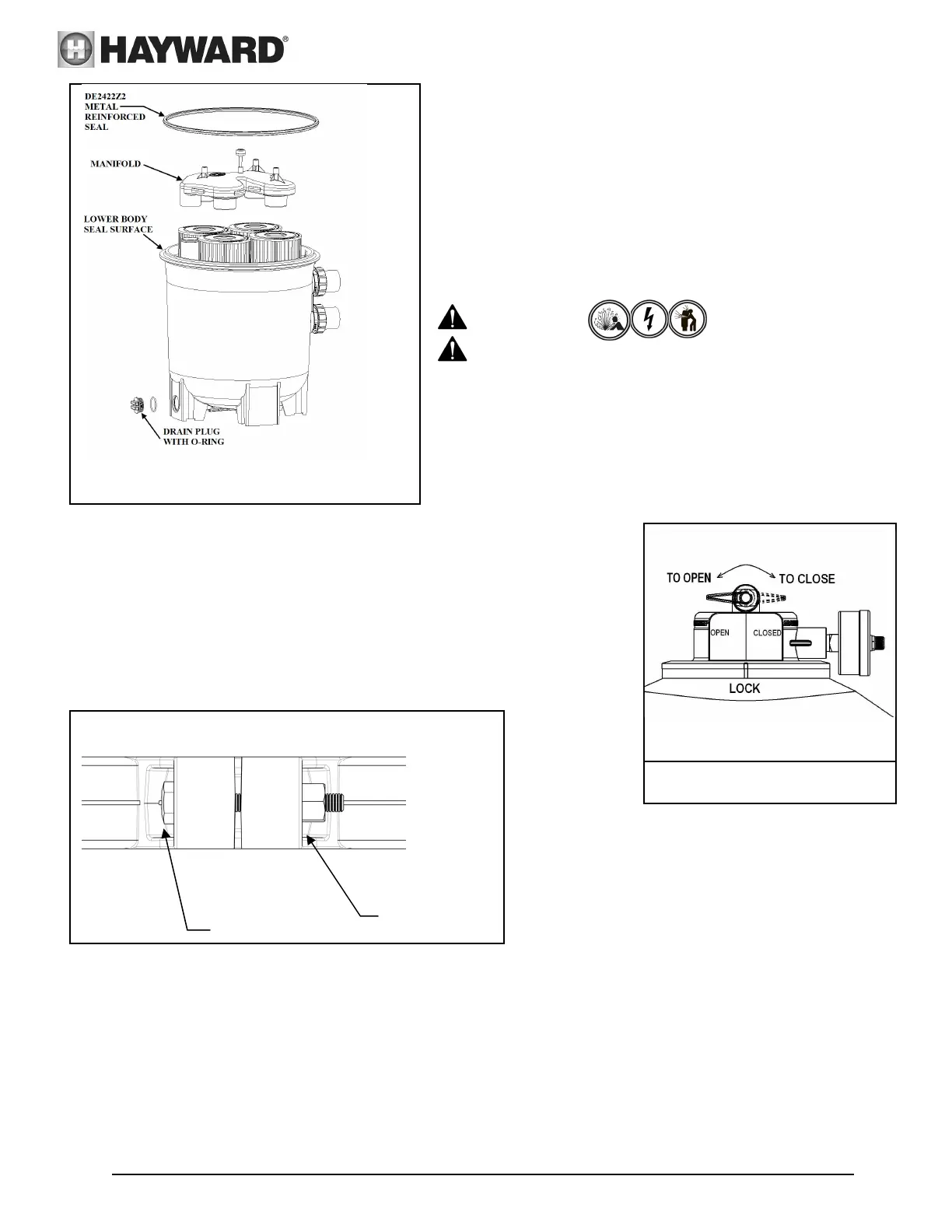

Page 6 of 12 SWIMCLEAR™ CARTRIDGE FILTER ISC2031 REV B
Figure 6
Manual Air Relief Shown in Open
Figure 4
By recording the initial starting pressure (with clean filter
elements) a determination can be made when the filter
cartridge elements should be replaced rather than cleaned.
After the filter elements have been cleaned and reinstalled if
the starting pressure is higher than 6 PSI above the starting
pressure with the new filter cartridge elements, the filter
cartridge elements should be replaced the next time the
gauge arrow reaches the red arrow.
MAINTAINING YOUR FILTER
WARNING
This product should be installed and serviced only by
a qualified pool professional.
FILTER DISASSEMBLY INSTRUCTIONS
1. Turn off all system circulation pumps and all electric
power on the equipment pad.
2. Set all system valves in a position to prevent water flow to
the filter.
3. The manual air relief valve must be placed in the OPEN
position. (Fig 6)
4. Remove filter drain plug (Fig 4) and drain water from filter.
5. Using 3/4” wrenches or hex sockets, loosen and remove the clamp nut
and the clamp bolt. (Fig 5)
6. Holding both ends of the filter clamp carefully spread the clamp ends.
Remove the clamp by lifting over the upper filter body. Do not to drop the
clamp during removal, because the clamp could be damaged. Do not
strike the clamp with metal tools as they can damage the clamp.
7. Lift off upper filter body. Do not use the pressure gauge to lift the upper
filter body.
REMOVING
CARTRIDGES
1. Remove the top Manifold, which is
exposed when the upper filter body is
removed. (Fig 4)
2. Remove the filter cartridge elements by
using slight rocking motion and lifting up.
3. Clean filter cartridge elements.
CLEANING CARTRIDGES
The Cartridge filter element can be cleaned by washing inside and outside with a garden hose. After hosing
cartridge, for best results, carefully brush the pleated surface to remove fine particles. Do not pressure wash as it
can damage the filter element.
You may find some debris on the cartridge pleats, which may not have been removed with hosing.
Fi
g
ure
5
Clamp Bolt
Clamp Nut
