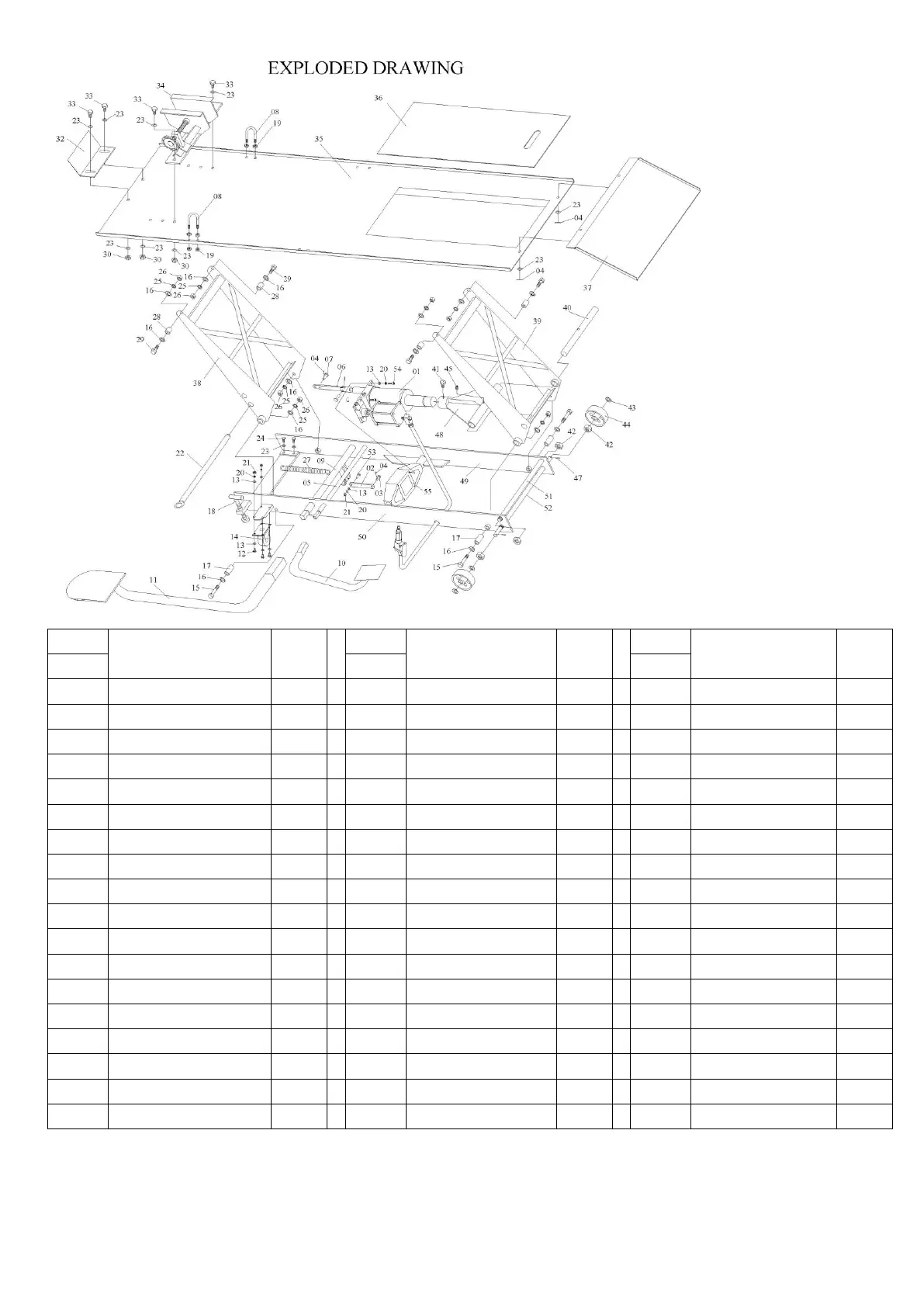

HBM 300 - Page 12

PARTS
DESCRRIPTION
QNTY
PARTS
DESCRIPTION
QNTY
PARTS
DESCRIPTION
QNTY
NO
NO
NO
01
Air pump
1
19
Nut M8
8
38
Front lifting arm
1
02
Link
1
20
Lock washer 6mm
13
39
Rear lifting arm
1
03
Pin
1
21
Nut M6
9
40
Lifting arm spindle
1
04
R-pin
5
22
Locking bar
1
41
Bolt M8x12
2
05
Release valve spindle
1
23
Washer 10mm
14
42
Nut M16
4
06
Link
1
24
Bolt M10x12
4
43
Washer 14mm
2
07
Pin
2
25
Lock washer 12mm
8
44
Front wheel
2
08
U-bolt
2
26
Nut M12
8
45
Set screw M8x10
1
09
Pump piston spindle
1
27
Spring
1
47
Cotter pin
2
10
Release foot pedal
1
28
Bush
4
48
Connection
1
11
Lift foot pedal
1
29
Bolt M12x65
4
49
Frame assy(RH)
1
12
Bolt M6x70
8
30
Nut M10
4
50
Frame assy(LH)
1
13
Washer 6mm
21
32
Baffle plate
1
51
Lifting arm top rod
1
14
Castor fork assy
2
33
Bolt M10x25
4
52
Front spindle
1
15
Bolt M12x70
4
34
Vise assy
1
53
Bolt M6x30
1
16
Washer 12mm
8
35
Platform
1
54
Bolt M6x25
4
17
Bush
4
36
Sliding plate
1
55
Pump base
1
18
Adjusting screw assy
2
37
Leading plate
1
