Page 11 of 34

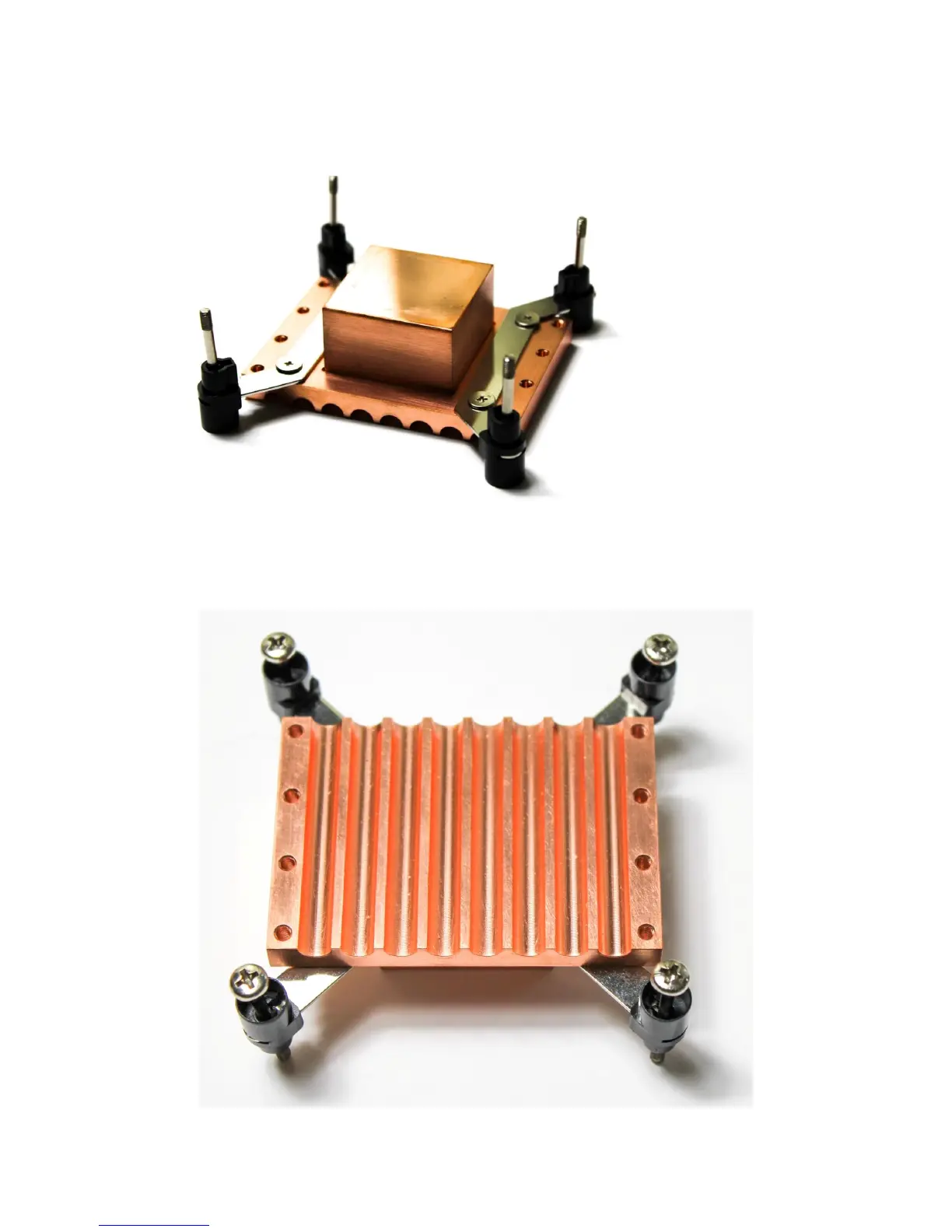

Remove the protective cover from the copper base plate and install the
appropriate CPU Bottom Rack H-5 to the bottom side of the copper base plate
using four M3*3 Flat Head screws H-1.
Install the Plastic Screw Holders H-8 to the ends of the two racks H-5. Please
Ensure the Plastic Screw Holders H-8 are oriented correctly. Next, install four
M3*30 Round Head Screws H-3 into the Plastic Screw Holder H-8.
