You may apply a very thin layer of thermal paste to the copper base plate,
however since the copper base is mirror polished, we actually recommend
against applying thermal paste to this surface.
Warning: Do not over apply thermal paste, as it will greatly decrease heat transfer efficiency.

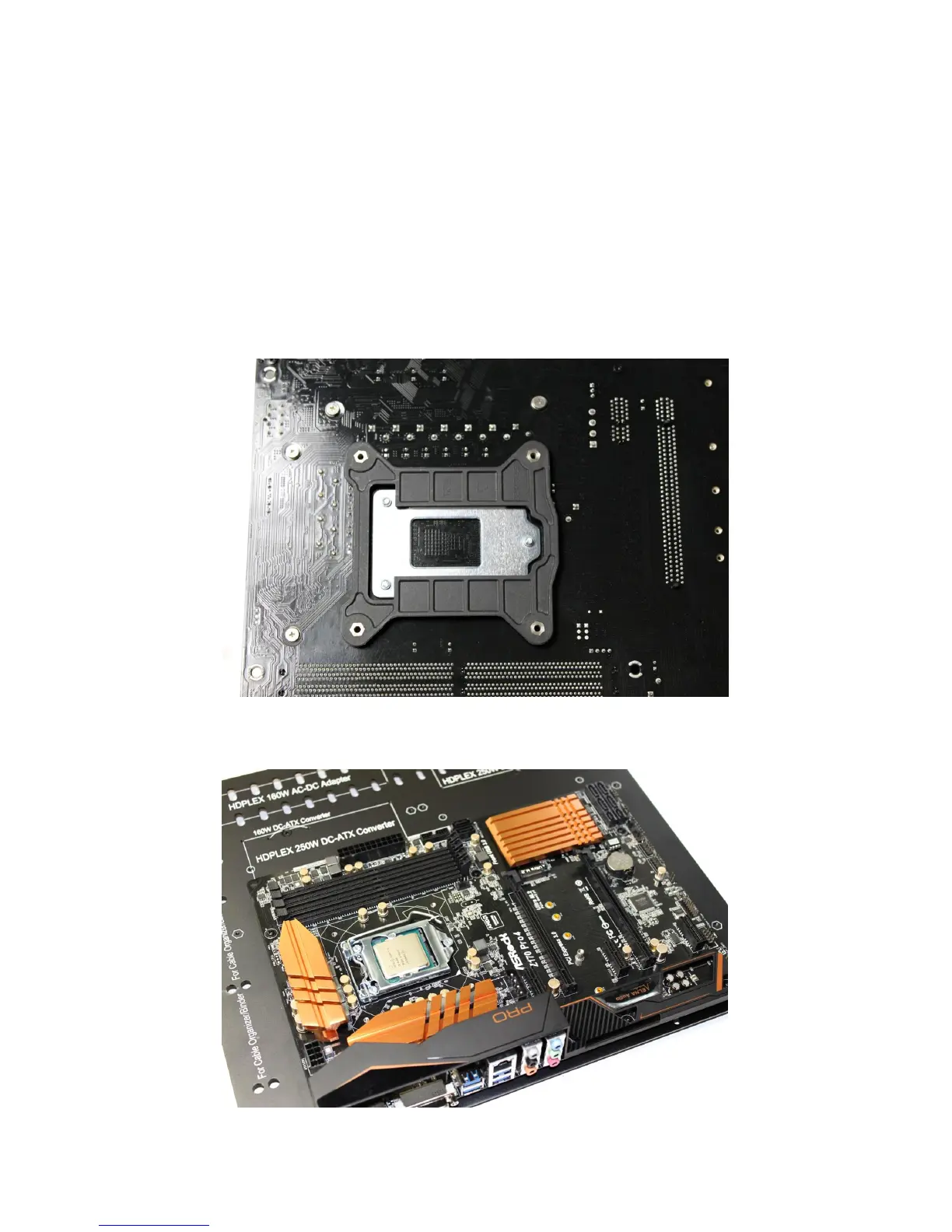

For Intel systems, place the CPU Bottom Rack H-6 on the backside of the
motherboard’s Intel CPU socket (LGA1151/1155/1150) and for AMD systems
use four pieces of white double-sided tape to secure the four bottom holders
H-7 to the backside of the socket.
Mount the motherboard to the H5 base plate using M3*5 Flat Head Screws D.
