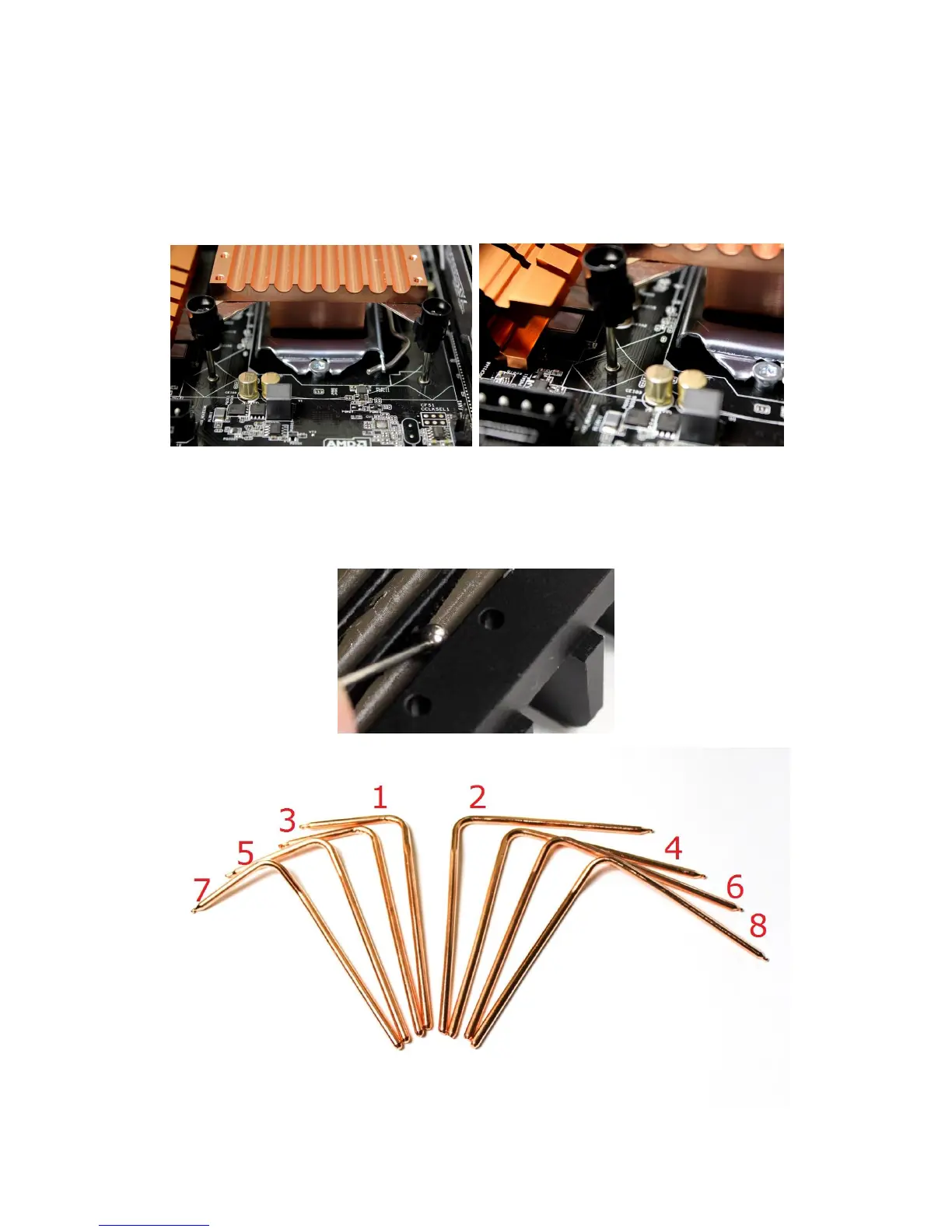

Install the copper base plate, with rack attached, to the motherboard. Confirm
that heat pipe slot direction is vertical to the side panel. Tighten the four M3*30
Round Head Screws H-3 in an even fashion. We recommend you stop tightening
the screws when the M3 threads have just fully emerged within the bottom
holder（H-6 or H-7）. Do NOT over tighten the H-3 screws, and avoid putting too
much pressure on the CPU.
Apply a very thin layer of thermal paste to the heat pipe grooves on left panel
and the copper plate grooves using the dumbbell shaped tool provided
Warning: Do not over apply thermal paste, as it will decrease heat transfer efficiency.
