HDPlex H5 - Secure Heat Pipe Assembly

Page 15 of 34

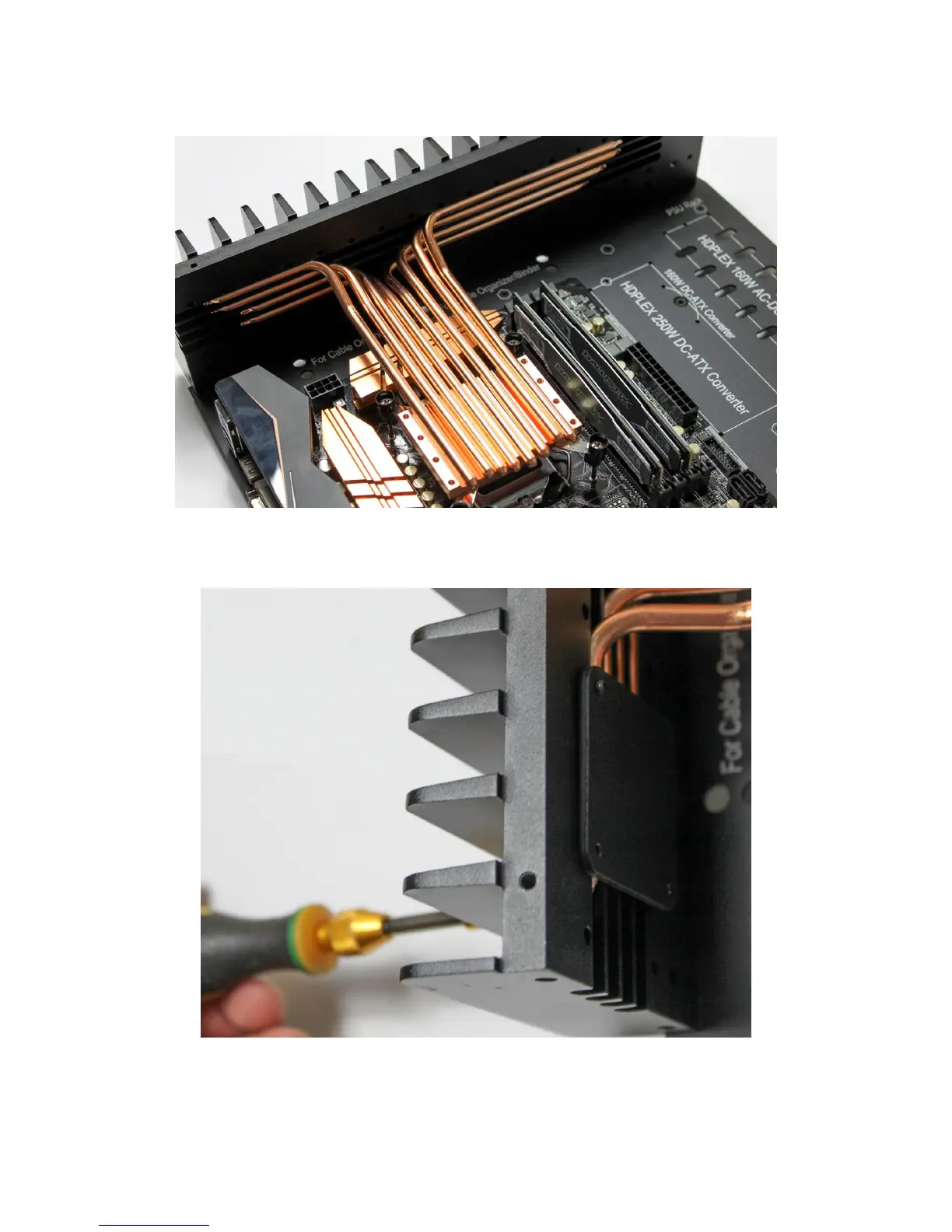

Install Heat pipes 7 and 8.
Tighten the aluminum plates H-9 to the side panel using four M3*14 Flat Head
Screws H-4 each. The plates are NOT square shaped. The wider side is oriented
in a vertical direction to match the installation holes on the side panel.
Usually only three aluminum plates H-9 are needed to fully secure the heat
pipes to the side panel.
