Page 16 of 34

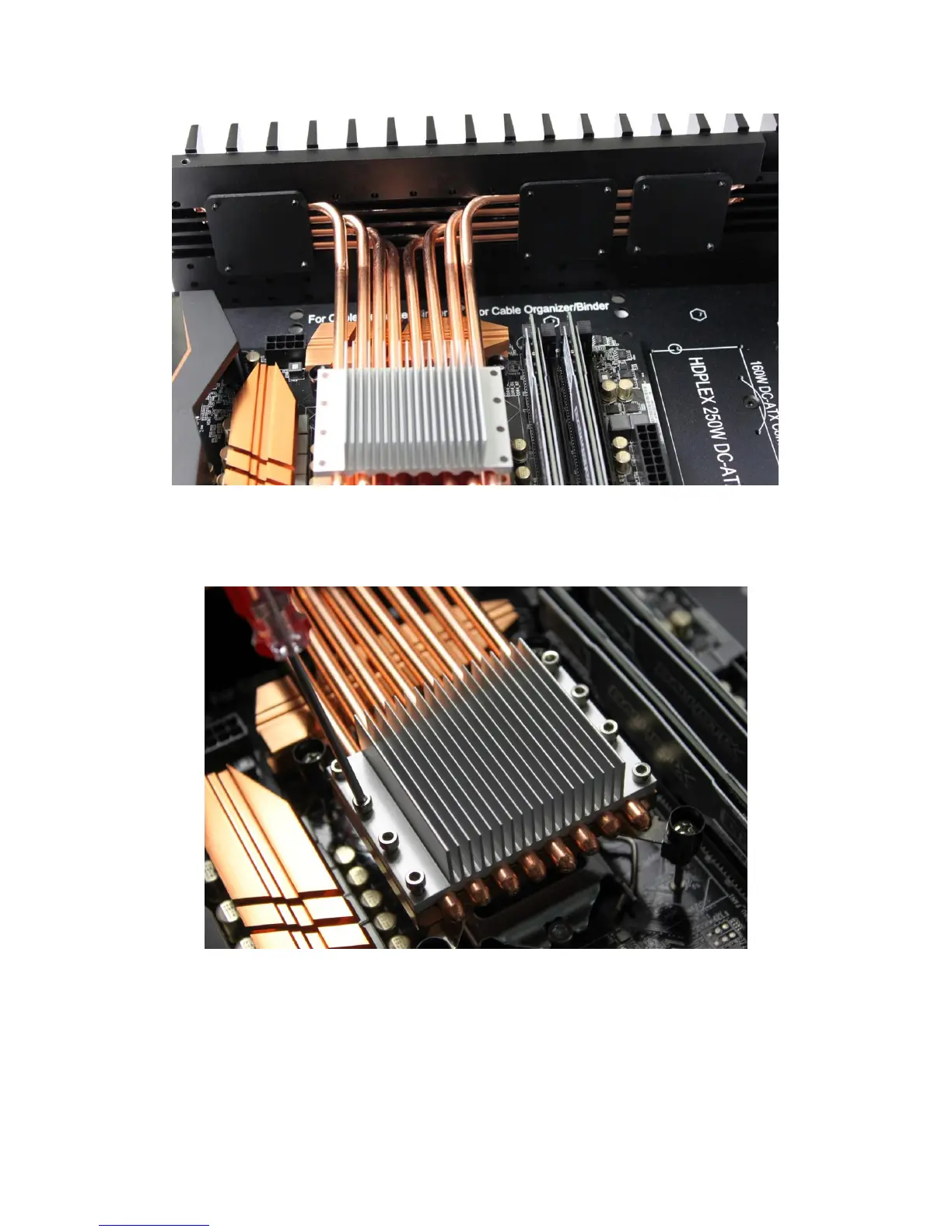

Apply a thin layer of thermal paste along each groove of the aluminum top plate,
then install the aluminum top plate using eight M3*10 CUP Head HEX Screws
H-2.
