Page 27 of 34

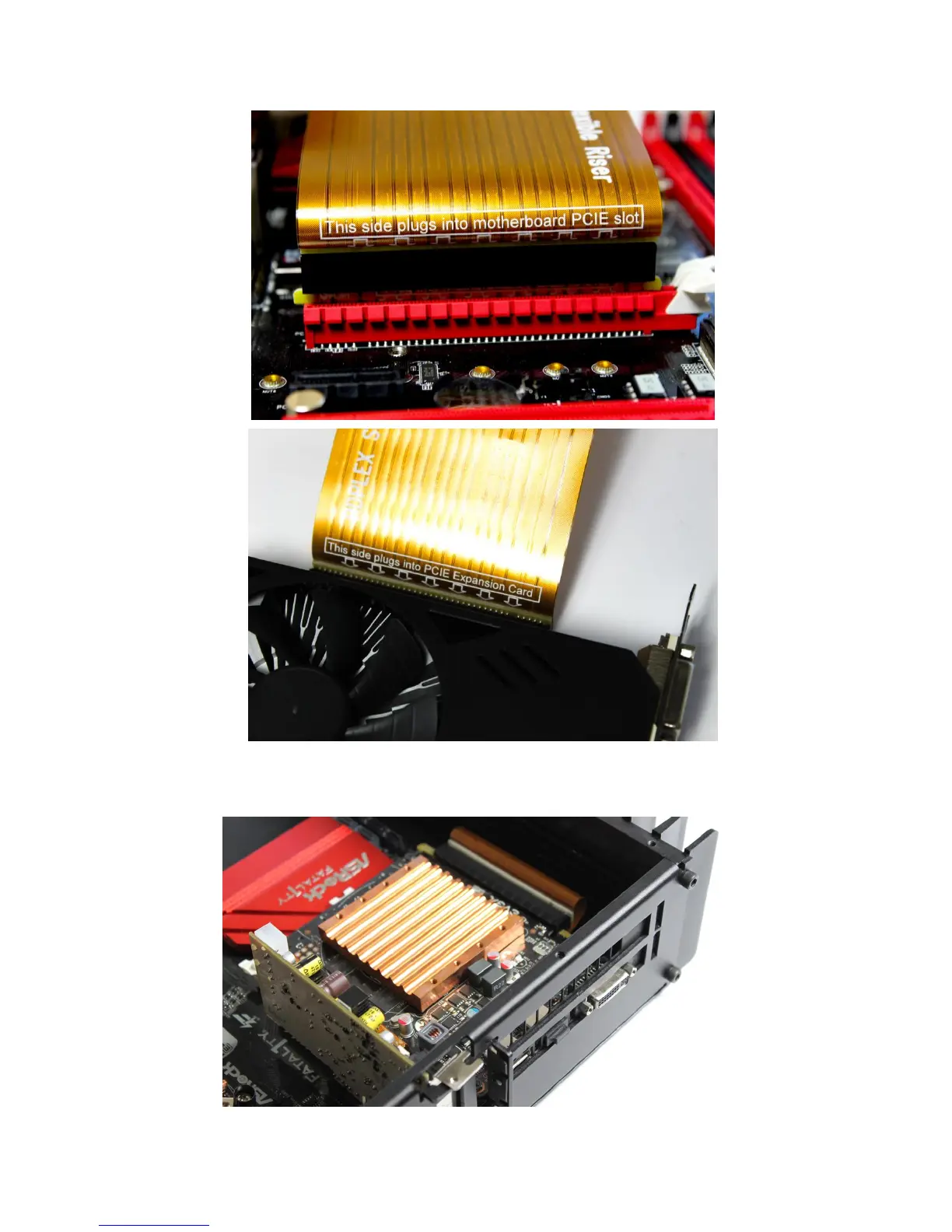

Install the video card to the H5 back plate. Slide the two bracket tip inside and
using 1pcs A firmly attach the video card bracket to H5 back plate.
