Page 26 of 34

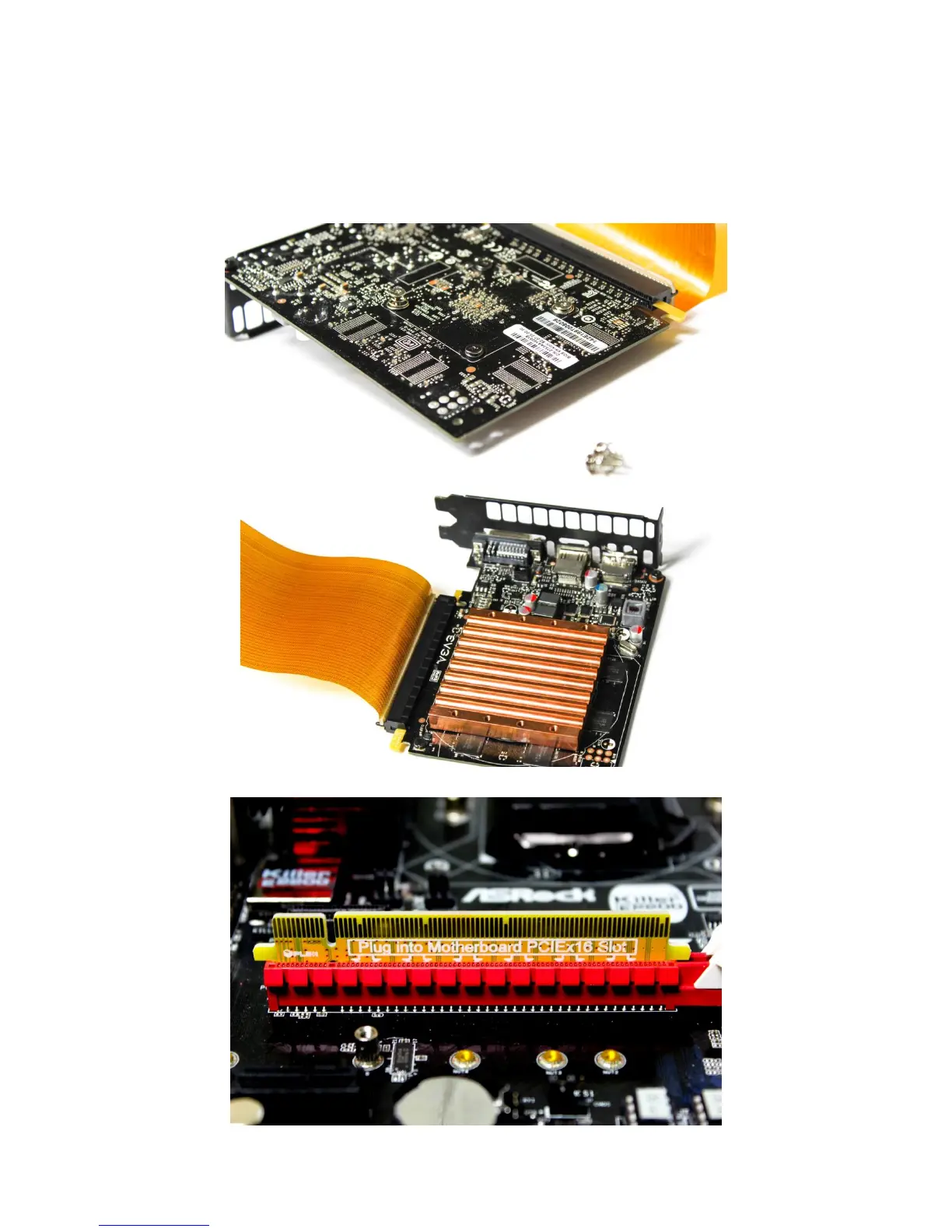

Uninstall the original heat sink from the GPU. After ensuring the copper base
plate is oriented correctly, install the copper plate using four M3*7 screws with
springs V-3. A very thin layer of thermal paste may be applied between the
copper base plate and GPU. Secure the GPU mounting bracket to the H5 back
plate using one M3*5 Round Head Screw with Cushion A.
Install the silicon PCIEx16 Riser card. Ensure proper orientation.
