6. Operating Instructions
6.1 Terminal Installation
6.1.1 Please ask the qualified engineers to install it.
6.1.2 Do not install it in an environment which is over GSM performance index,
and please pay attention to fix the antennas in an appropriate position
with good signals.
6.1.3 Pay attention to make installation location preventing water and dust.

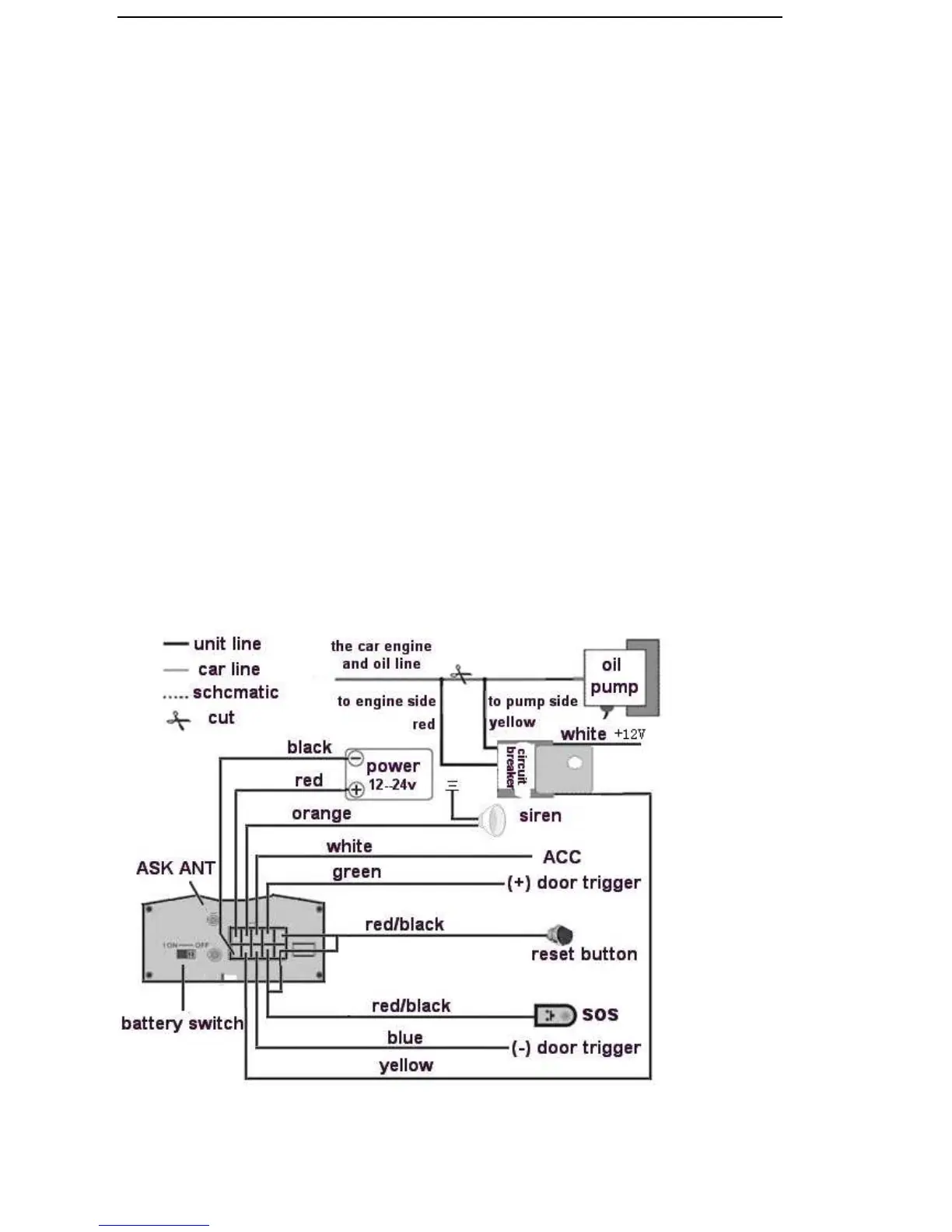

6.1.4 Find the 10 PIN harness and insert it into the corresponding holes of the
products, and connect the wires with the original car circuit showing
below:
Wiring diagram
