TM 55-1520-228-10
1.
Position Light (Green)
17. Vertical Fin
2.
Horizontal Stabilizer
18.
Lower Anti-Collision Light
3.
Aft Engine Cowling
19.
Aft Proximity Warning Antenna
4.
Infrared Suppression Shield
20.
ADF Sensor Antenna
5.
Aft Engine Cowling
21. ADF Loop Antenna
6.
Upper Anti-Collision Light
22.
Landing Gear
7.
Forward Transmission Fairing 23. Radar Warning Blade Antenna
8. Pilot Tube 24. Radar Altimeter Antenna
9. Right Forward Radar Warning Antenna 25. Marker Beacon Antenna
10. Door Lock 26. Transponder Antenna
11.
Fuel Filler Cap
27. UHF Antenna
12.
Left Forward Radar Warning Antenna
28. Landing Light
13.
Left Aft Radar Warning Antenna
29.
Upper Cutter Assembly
14.
Position Light (Red)
30.
Windshield Deflector/Cutter Assembly
15.
Position Light (White)
31.
Lower Cutter Assembly
16.
Tail Skid

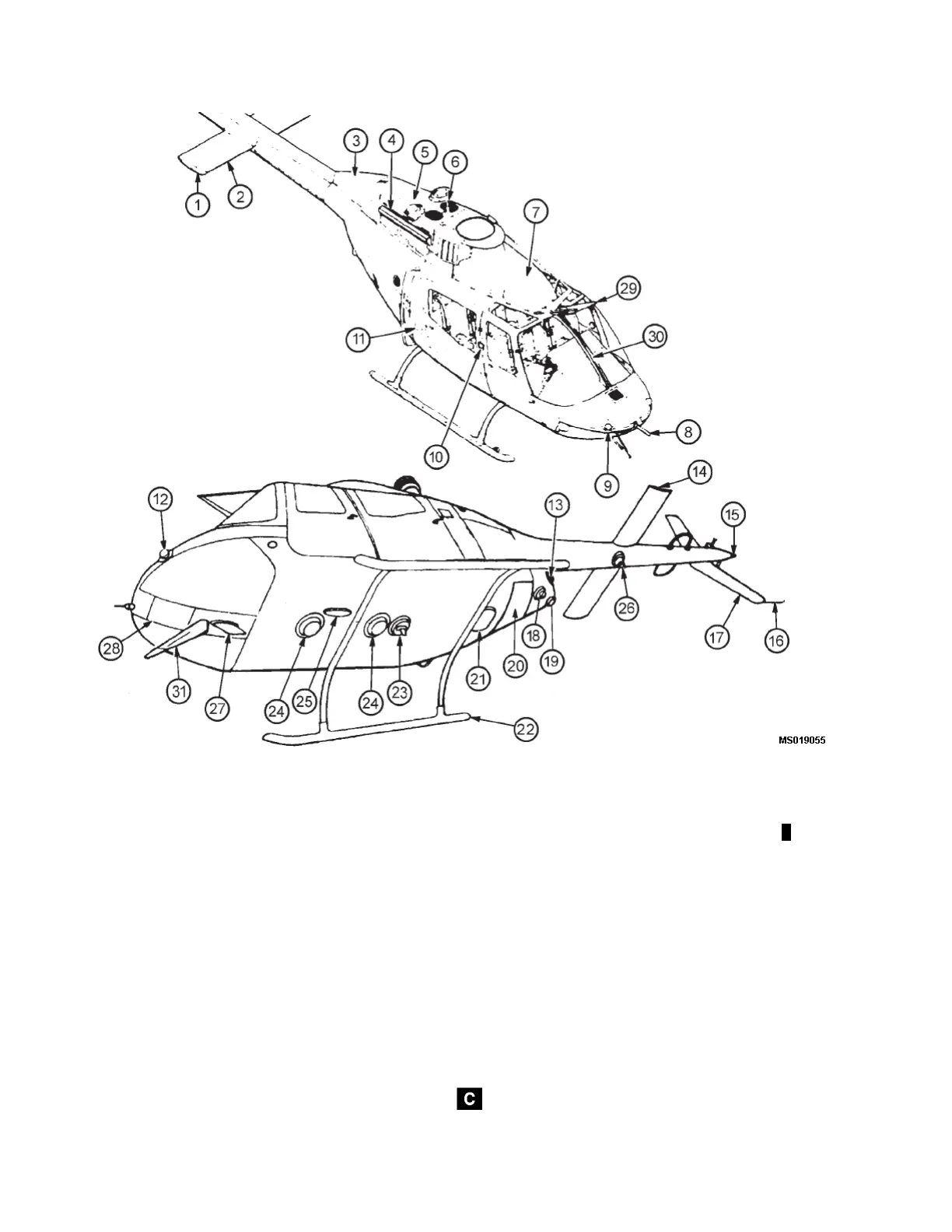

Figure 2-2. General Arrangement Typical (Sheet 1 of 2)
2-4 Change 14
