(Figure 2-3 Sheet 1 of 2)
(Figure 2-3 Sheet 2 of 2)
TM 55-1520-228-10
1. Copilot Door Emergency Jettison Handle
2. Overhead Console
3. Fuel Shutoff Valve
4. Free Air Temperature (FAT) Gage
5. Pilot Door Emergency Jettison Handle
6. Instrument Panel
7. Magnetic Compass
8. Anti-Torque Pedals
9. Pilot Cyclic Stick
10. Pilot Seat
11. Inertia Reel Control Handle
12. Pilot Collective Stick
13. Collective Friction Control Adjustment
14. Pedestal
15. Copilot Seat
16. Ignition Key Lock Switch
206061-90-1

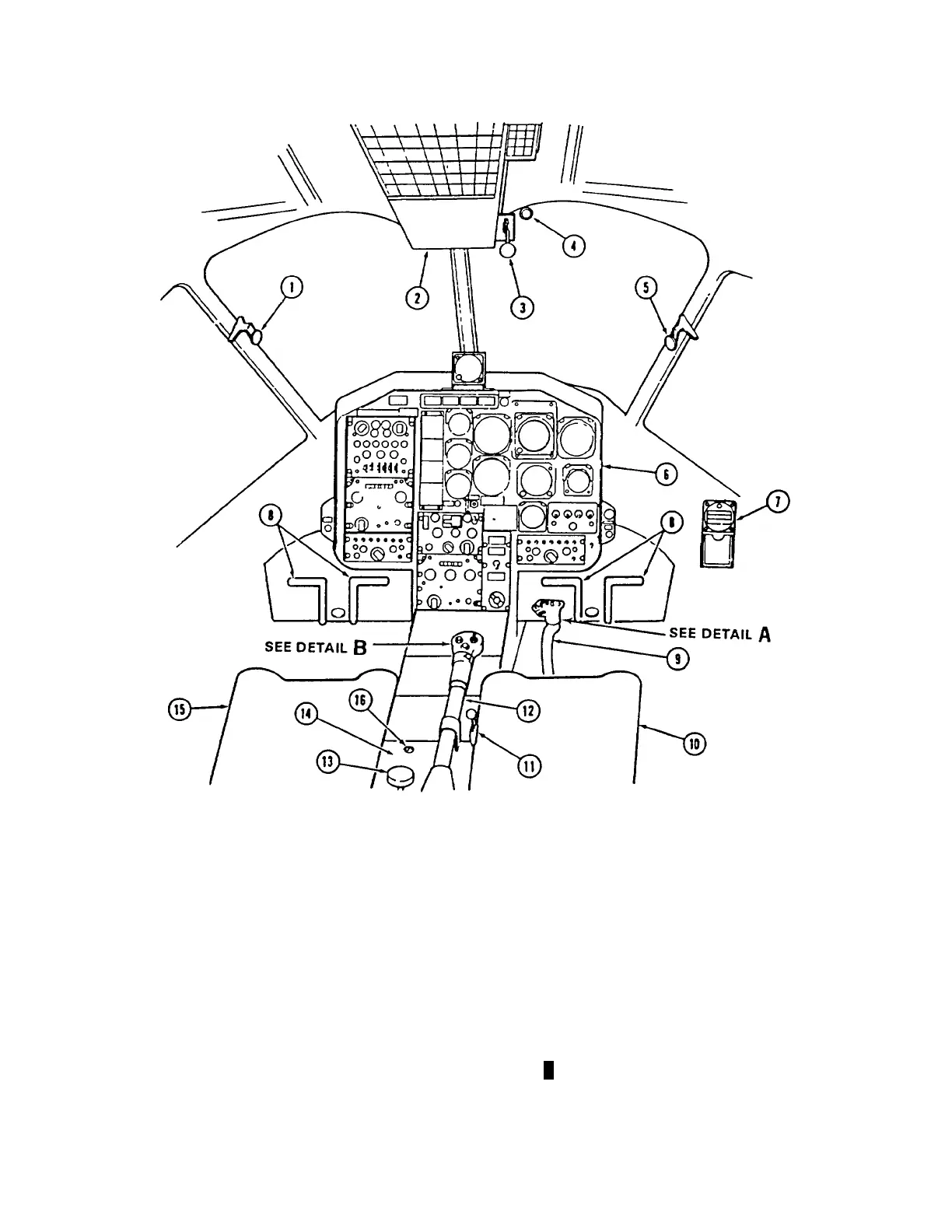

Figure 2-3. Compartment Diagram
A (Sheet 1 of 2)
2-6
