TM 55-1520-228-10
1.
Pillow Block Reservoir Grease Fittings
10.
Engine Oil Ta
nk Sight Glass
2.
Grip Reservoir
10.1. Deleted
3.
Auxiliary Fuel Filler Cap
11.
Hydraulic
Filler Cap
4.
Closed Circuit Refueling Receiver
12.
Hydrauli
c Sight Glass
5.
Transmission Sight Glass
13.
Static Ground Receptacle
6.
Transmission Filler Cap
14.
Fitting
Lubrication (Grease Lubricated Hub)
7.
Tail Rotor Gearbox Filler Cap
15.
Relief
Valve (Grease Lubricated Hub)
8.
Tail Rotor Gearbox Sight Glass
16.
Fitti
ng Lubrication (Grease Lubricated Hub)
9.
Engine Oil Filler Cap
17. Hydraulic Reservoir

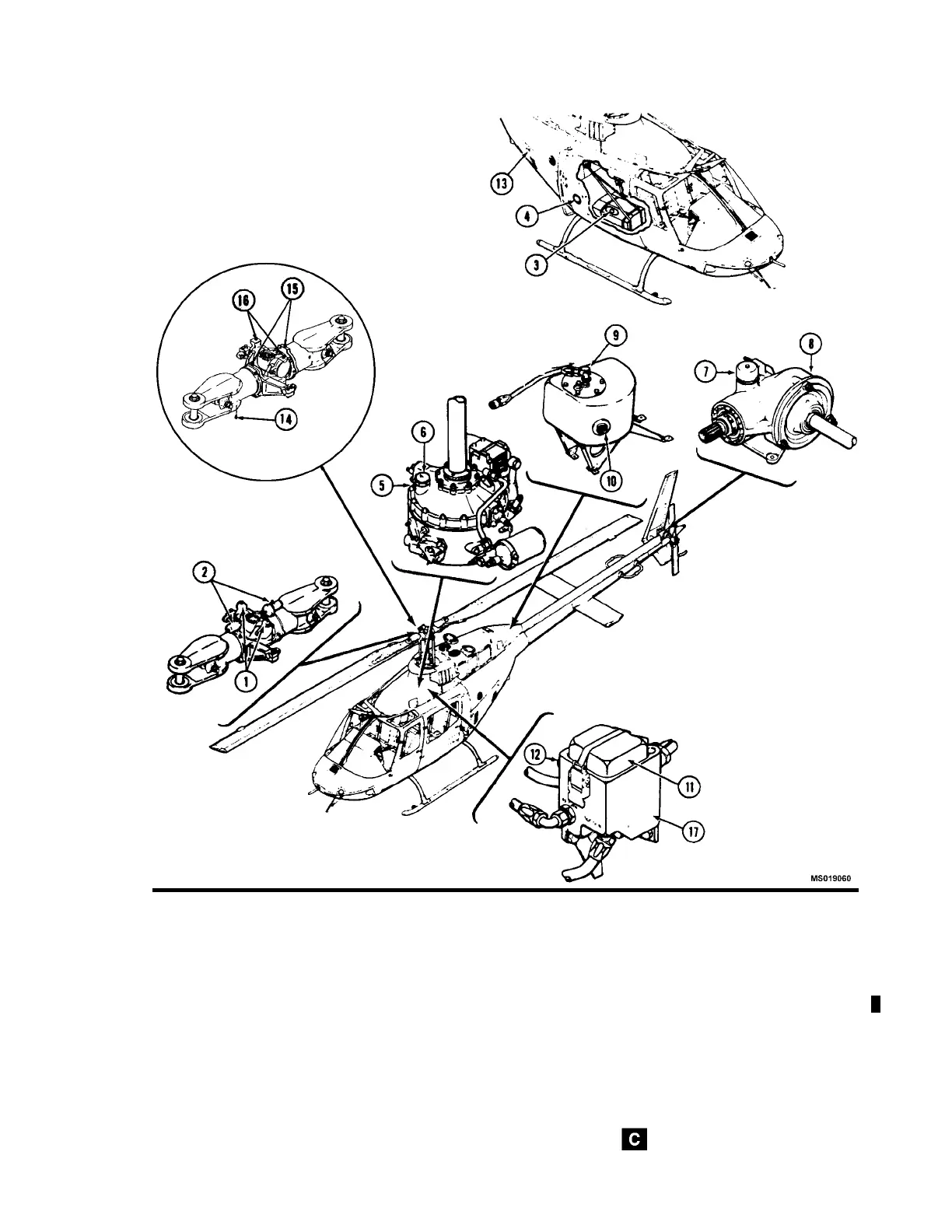

Figure 2-21. Servicing Diagram
Change 14 2-51
