HEADRUSH FRFR-108 - Example C: Two FRFR-108 s (Mono)

5

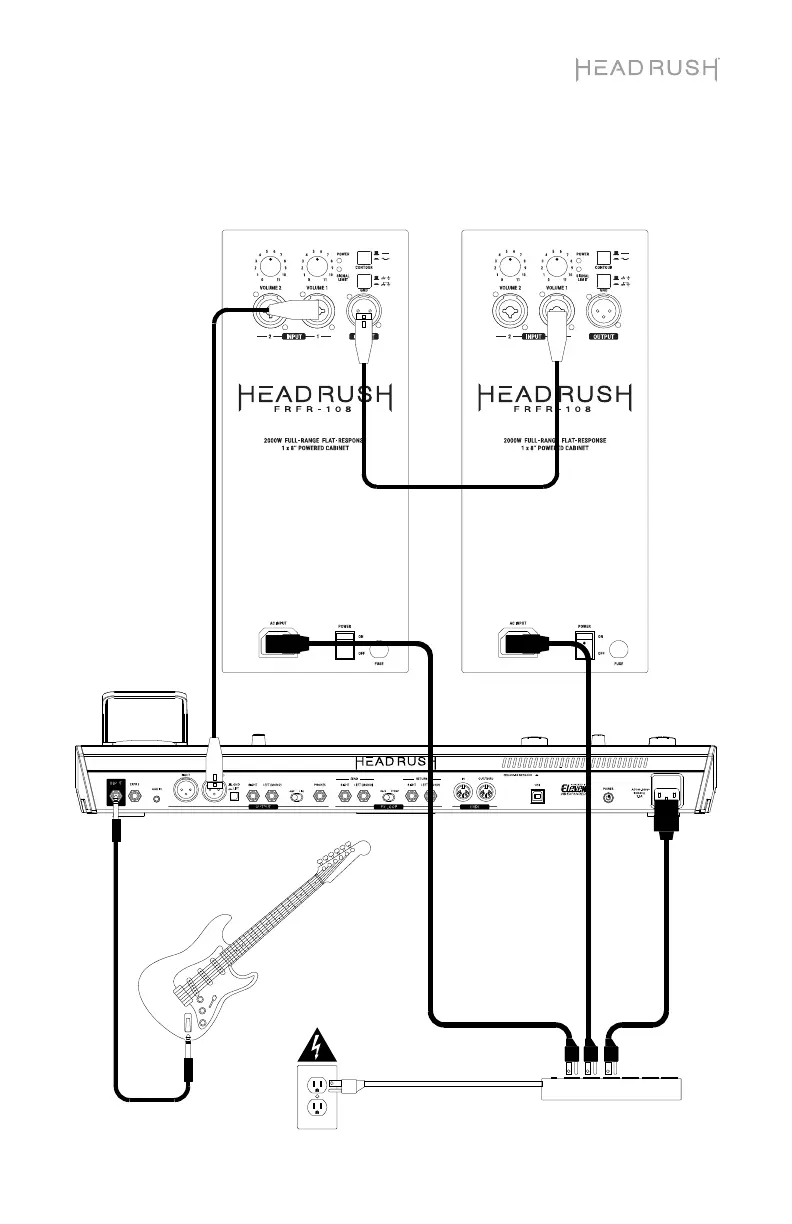

Example C: Two FRFR-108s (Mono)
Connect the Left (Mono) output of your HeadRush Pedalboard to the input of one FRFR-
108, and then connect the output of that FRFR-108 to the input of another.
Surge Protector
Guitar
(from Left (Mono)
channel)
(from Output)
