HEADRUSH FRFR-112 - Example B: Two FRFR-112 s (Stereo)

4

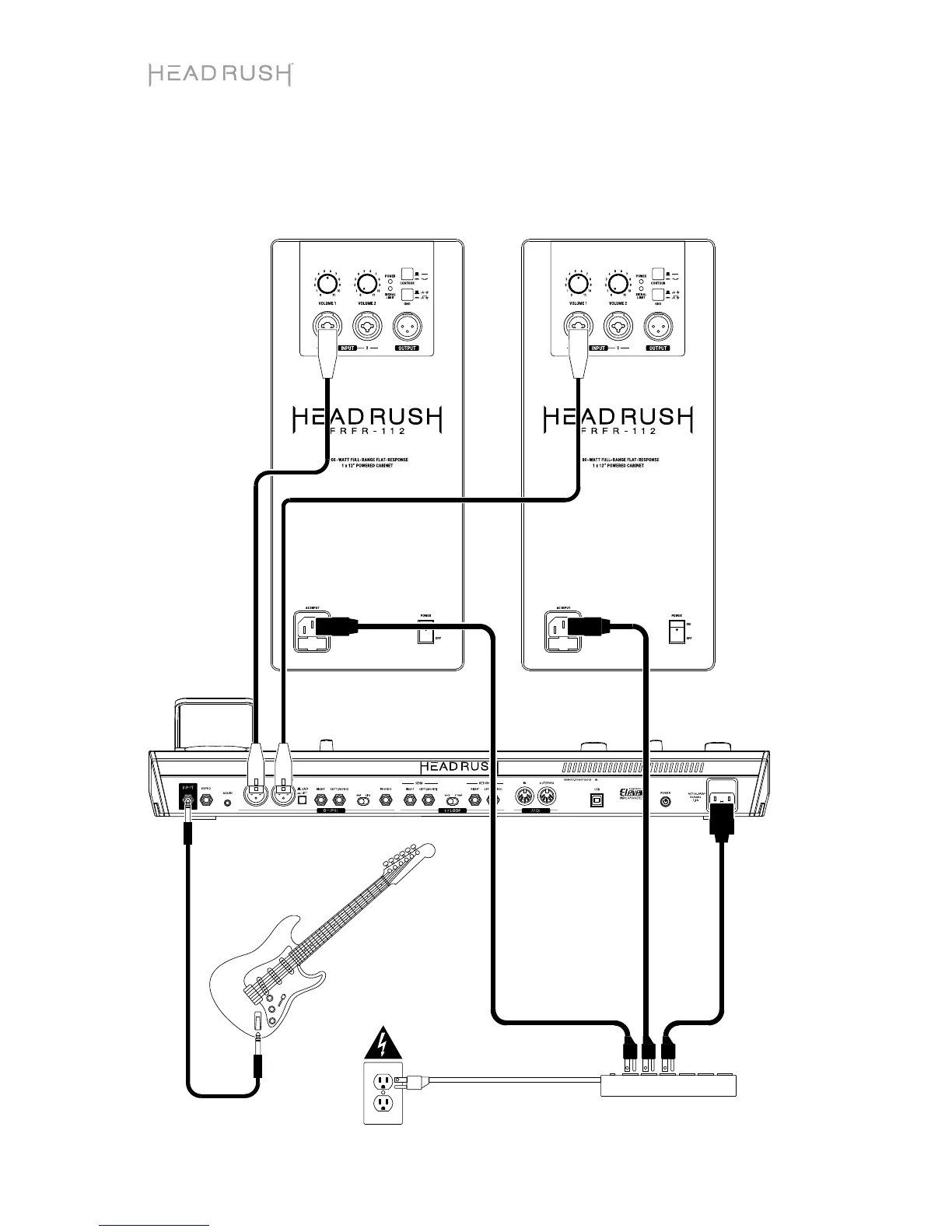

Example B: Two FRFR-112s (Stereo)
Connect the Right and Left (Mono) outputs of your HeadRush Pedalboard to the inputs
of your FRFR-112s.
Surge Protector
Guitar
(from Right
channel)
(from Left (Mono)
channel)
