Hearth & Home Technologies • Grand Oak Hearth Kits • 4004-323 Rev E . 4/2020
14
Service Parts
GO30-IPI-NG-HK, GO30-IPI-LP-HK
Beginning Manufacturing Date:May 2018
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Switch 01-1070
2
Pilot - NG 07-1024
Pilot - LP 07-1023
3 Control Module 593-595
4 Battery Holder SRV593-594
5
Valve - NG 593-500
Valve - LP SRV593-501
6 Valve Bracket MT-350-VC
7 Control Box MT-350-BBA
8 Control Box Mount MT-350-CBMS
9 Pilot Bracket MT-350-PB
10 Wire Harness SRV593-590
11 Wiring Harness, Switch 16-1615
12 Battery Cover Log H-0586A
13
Damper Stop Assembly SRV500-SC
14 Connector FT-1-24
Lava Rock Qty 3 req SRVACC10
Mineral Wool Qty 2 req SRVACC12
Platinum Bright Embers Qty 2 req PBE-5
Sand Qty 1 req, NG Only SRVACC15
Vermiculite
Qty 1 req, NG
SRVACC11
Qty 2 req, LP
Installation Manual 4004-323
4/19
Grand Oak 30” IPI Hearth Kit
1
2
3
4
5
6
9
7
8
13
12
11
14
10
Service Parts
GO30
Beginning Manufacturing Date: May 2018
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Set Assembly GO30
1 Log # 1 SRV721A
2 Log # 2 SRV721B
3 Log # 3 SRV726
4 Log # 4 SRV720
5 Log # 5 SRV722
6 Log # 6 SRV724
7 Log # 7 SRV723
8 Log # 8 SRV740
9 Log # 9 SRV728
10 Log # 10 SRV743
11 Log # 11 SRV742
12 Log # 12 SRV727
4/19

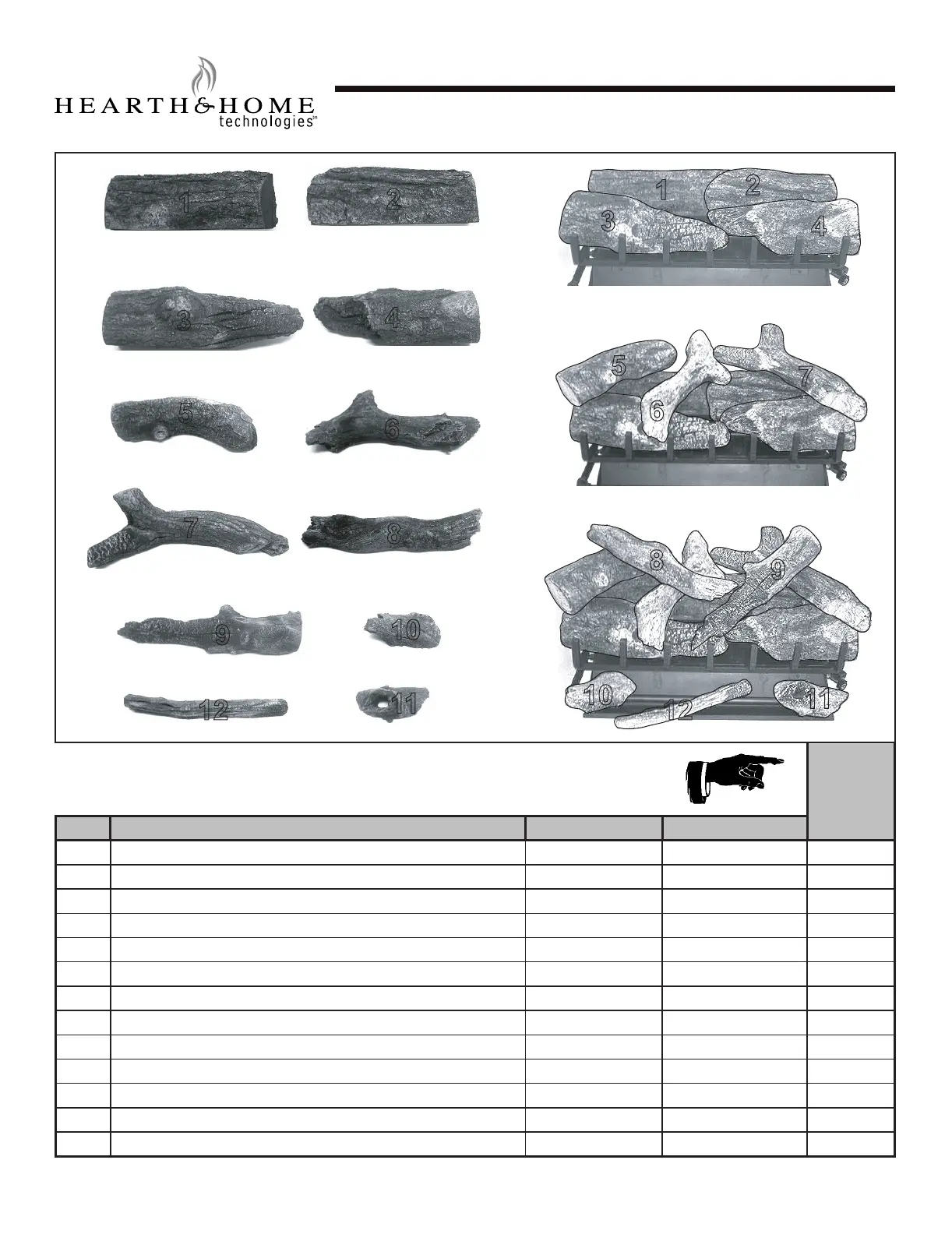

Grand Oak 30” Gas Log Set
SRV726
SRV720
SRV721B
SRV722
SRV723
SRV740
SRV742
SRV743
SRV721A
SRV727
1
1
2
2
3
3
4
4
SRV724
6
6
5
5
7
7
10
10
12
12
11
SRV728
9
9
8
8
11
