Hearth & Home Technologies • SMART-STAT Remote Control Instructions • 100-906 Rev. J • 2/17

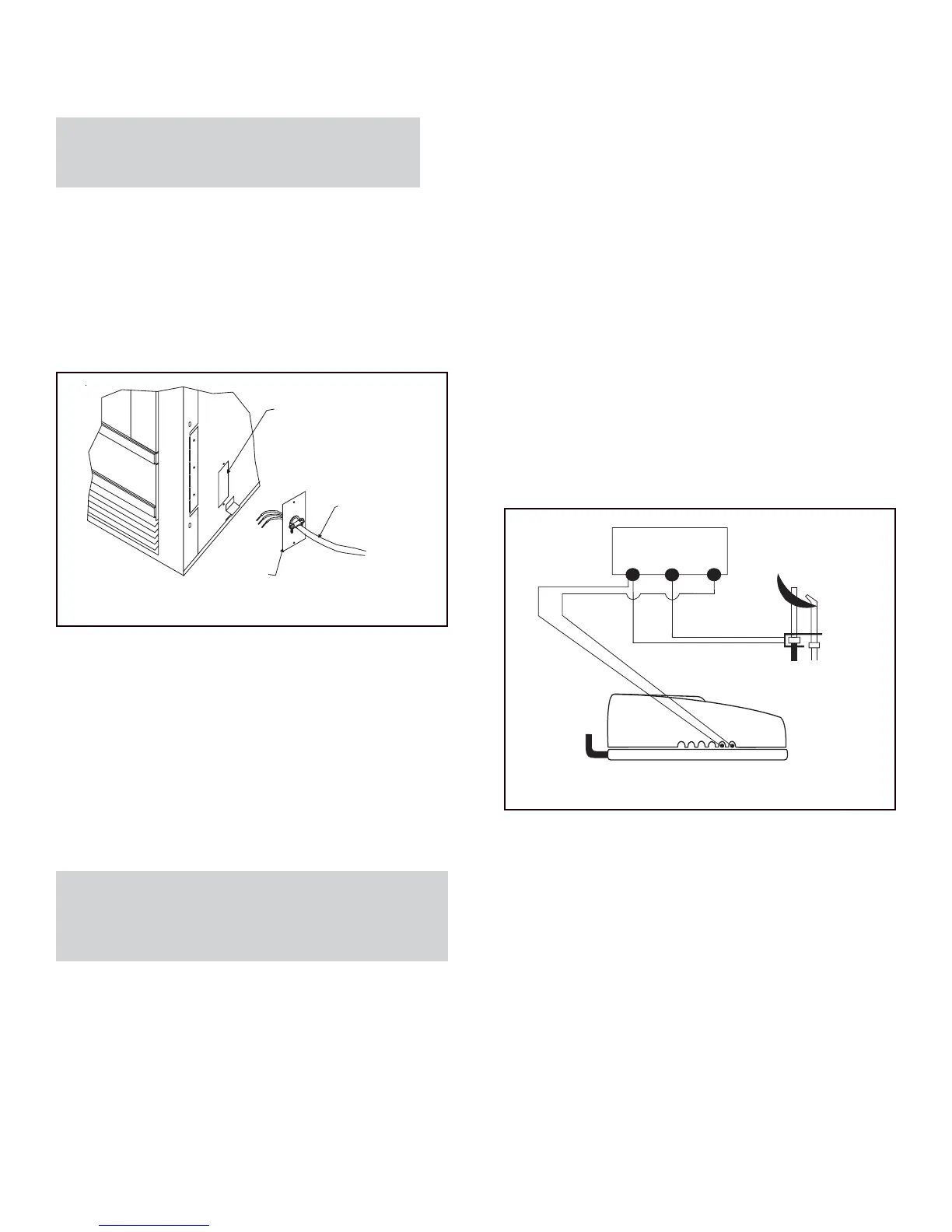

Figure 1
REMOTE RECEIVER
Important: The remote receiver should be positioned
close to front in right or left corner.
The remote receiver is powered by 110-120 VAC. It plugs
into a standard polarized duplex receptacle.
Locating Receiver and Operating Functions
This remote receiver can be positioned under the fi rebox
in the control compartment of the fi replace if ambient tem-
peratures do not exceed 170
º
F. This system is designed
to remotely operate the gas valve.
NOTE: Some appliances do not have a cover plate.
Instead, there is a hole through which the Romex clamp
is attached to the outer wrap.
1. Remove the electrical cover plate from the lower side
of the fi replace. Remove the knock-out from the plate
and attach the Romex clamp (screws to the outside)
(see Figure 1).
2. Feed the electrical service wires through the Romex
clamp and secure the wires to the clamp.
3. Using the wire nuts provided, connect the service wires to
the junction box. The black wires to the black service wire,
the white wires to the white service wire, and the service
ground wire to the ground stud of the junction box.
4. Reattach the cover plate to the outside of the fi replace.
RECEIVER WIRING INSTRUCTIONS
Incorrect wiring connections WILL cause damage to the
gas valve or electronic module operating the gas appliance
and may also damage the remote receiver.
Wiring Standing Pilot Valves
Connect the remote receiver by connecting each of the two
wires leading from the remote receiver to either of the two
wire TH terminals on the gas valve (see Figure 2). Normally
it does not matter which wires go to which terminal.
Figure 2. Wiring Standing Pilot Valves
Alternative Wiring for units with a wall switch
Disconnect the wall switch wire from the TH terminal on
the valve and connect this wire to male connector supplied
on the receiver. Connect remaining female connector from
receiver to the TH terminal on the valve.
1 2 3 4 5 6
TERMINAL BLOCK
ON MILLIVOLT
GAS VALVES
TH
TP
TP
TH
THERMOPILE /
PILOT LIGHT
To 110VAC
input
ACCESS HOLE
COVER
PLATE
110 VAC
SERVICE
INSTALLATION INSTRUCTIONS
Installing Electrical Service to the Junction Box
WARNING: TURN ELECTRICAL POWER
OFF AT THE CIRCUIT BREAKER BEFORE
BEGINNING THIS INSTALLATION.
Wiring Intermittent Pilot Ignition Dry Contact Input
Connect the remote receiver by connecting each of the
two wires leading from the remote receiver to the brown
harness wires. See Figure 3.
WARNING: LEAVE ELECTRICAL POWER OFF AT
THIS TIME. DO NOT RESTORE POWER UNTIL THE
REMOTE CONTROL SYSTEM IS COMPLETELY
INSTALLED.
To Next Page
