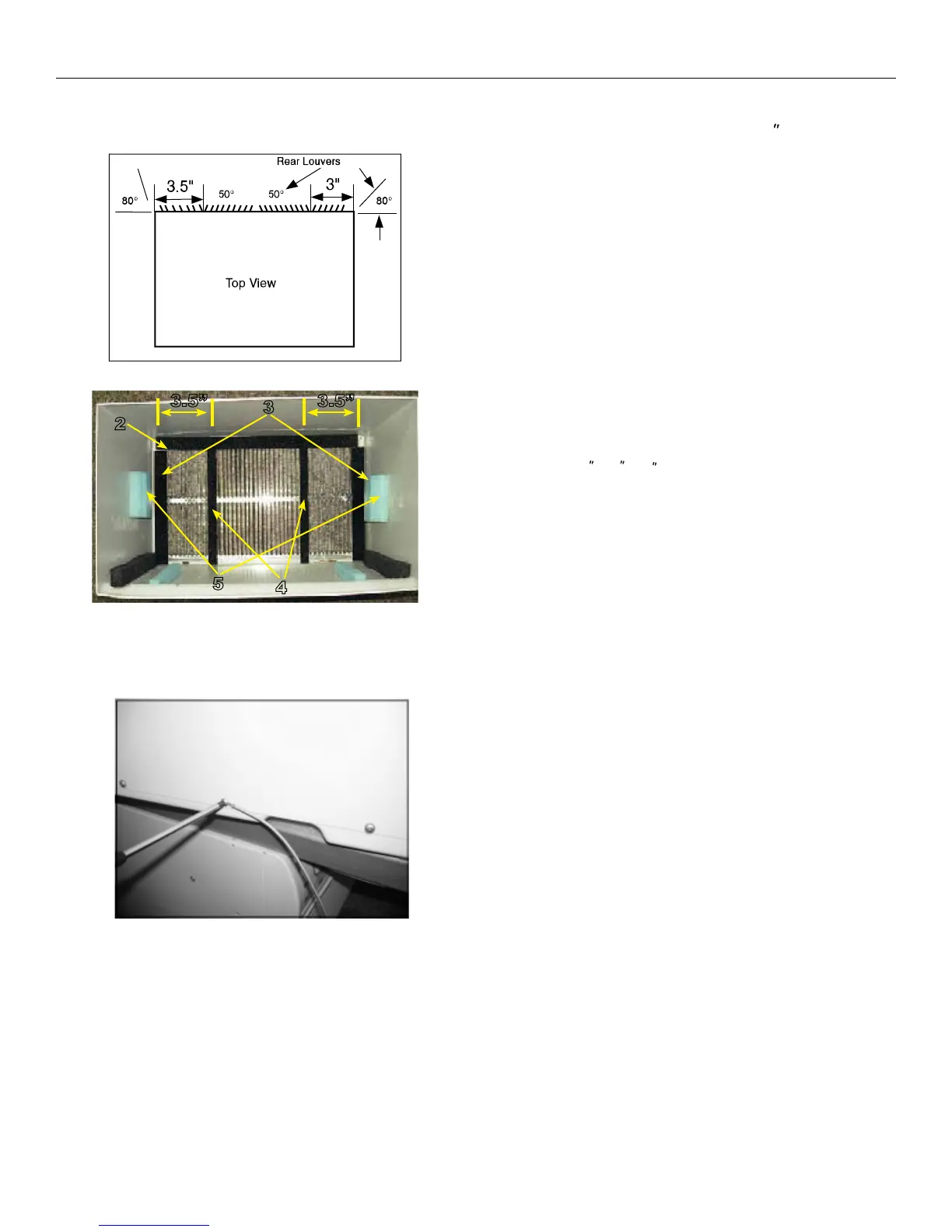

Wall Sleeve Brands:
#1 Emerson 15 Deep
1. Remove existing rear grille as shown on Page
11 of this manual and replace with provided
louvered rear panel. Install as shown here.
NOTE: You may need to drill holes in flange of
existing sleeve to match new rear grille.
2. Attach(1)1 x3/8 x25 long seal in the center at
the top of the sleeve. Remove the backing paper
and press into position.
3. Attach the (2) 1 x3/8 x14 long seals to the
left and right sides of the sleeve.
4. Cut (2) 1 x3/8 x25 long seal to 14 long, and
attach it to the vertical sections of the rear grille
as shown.
5. Attach (2)4 x3 x1 centering/support blocks
one on each side wall. Place in center of side
wall with the tapered end facing the opening.
6. Gently slide unit into sleeve.
7. Before sliding all-the-way back, remove 2nd
screw from front on left side of unit.
8. Remove the plastic washer from the screw.
9. Screw and attach the other end of the ground
wire to the unit as shown in picture. Make sure
that the toothed washer is against the cabinet.
10.Slide the unit completely to the rear to ensure
a good seal, making sure the ground wire does
not become tangled.
11.Seal & Frame the unit as described on the last
page of these instructions.
12. If you have difficulty with mounting the grill to
the sleeve, follow the instructions for direct
mounting on Page 21.
1
/
2
1
/
2
1
/
2
2
3.5” 3.5”
2
5
4
3
1. Remove existing rear grille and replace with provided
louvered rear panel. Install as shown here.
NOTE: You may need to drill holes in ange of exist-
ing sleeve to match new rear grille. (see pg. 11)
page 22.
screw from front on the left side of unit.
Attach (1) 1” x 3/8” x 25” long seal at the top of the
sleeve. Remove the backing paper and press into
position.
Attach the (2) 1” x 3/8” x 14” long seals to the bottom left
and right sides of the sleeve.
Cut (2) 1” x 3/8” x 14” to 25” long seals, and attach them
to the vertical sections of the rear grille as shown.
