Heatcraft PRO3 PTN024H2A User Manual

3
1. Ownerʼs Operating Instructions
25” x 25” panel opening required for evaporator section of medium cabinet sizes.
Figure B. Medium Cabinet Dimensions
(Models PTN 021, 031, 044, 047, 063, 072).

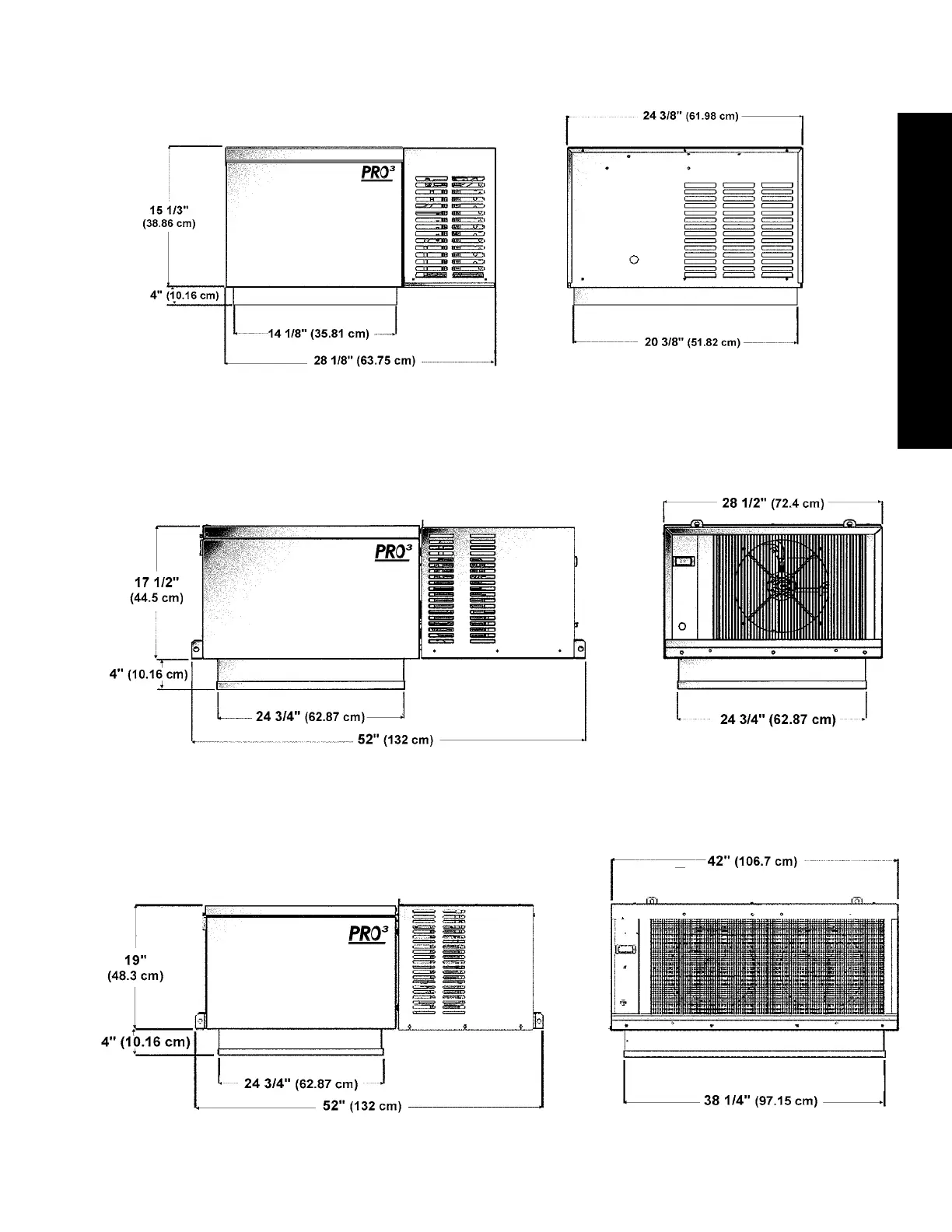

Dimensional Diagrams
Figure C. Large Cabinet Dimensions
(Models PTN 052, 069, 099, 128).
25” x 38
1
/
2
” panel opening required for evaporator section of large cabinet sizes.
Figure A. Small Cabinet Dimensions
(Models PTN 019, 024, 029, 040).
14
1
/
2
” x 20
3
/
4
” panel opening required for evaporator section of small cabinet sizes.
