-2-
598-1127-02
Code and Tune Settings
Code Settings
Note: Most installations will not require you to change any jumpers on
your chime and push button.
The push button and chime communicate by using a code that can be changed
by removing and/or adding jumpers on both the push button and chime. The
code is factory set; however, there are 8 selectable codes that allow you to
expand your system and prevent outside interference. Other wireless products
may cause interference and the system may not function properly. Follow the
instructions below for setting a new code.
1. Open the cases and locate the jumpers on both the push button and chime
(See illustration on page 3).
2. The push button has three different jumper locations and the chime has six
different jumper locations. Jumper positions 1 through 3 are used for setting
the code.
3. To change the code, add and/or remove jumpers as needed. It is recom
-
mended to only change one jumper at a time and then check to see if system
is functioning properly. Note: Jumpers in positions 1 through 3 must be exactly
the same for both the push button and chime for this system to function.
Figure 4
5. Mount push button and chime.
Use either screws
or double sided tape to mount push button.

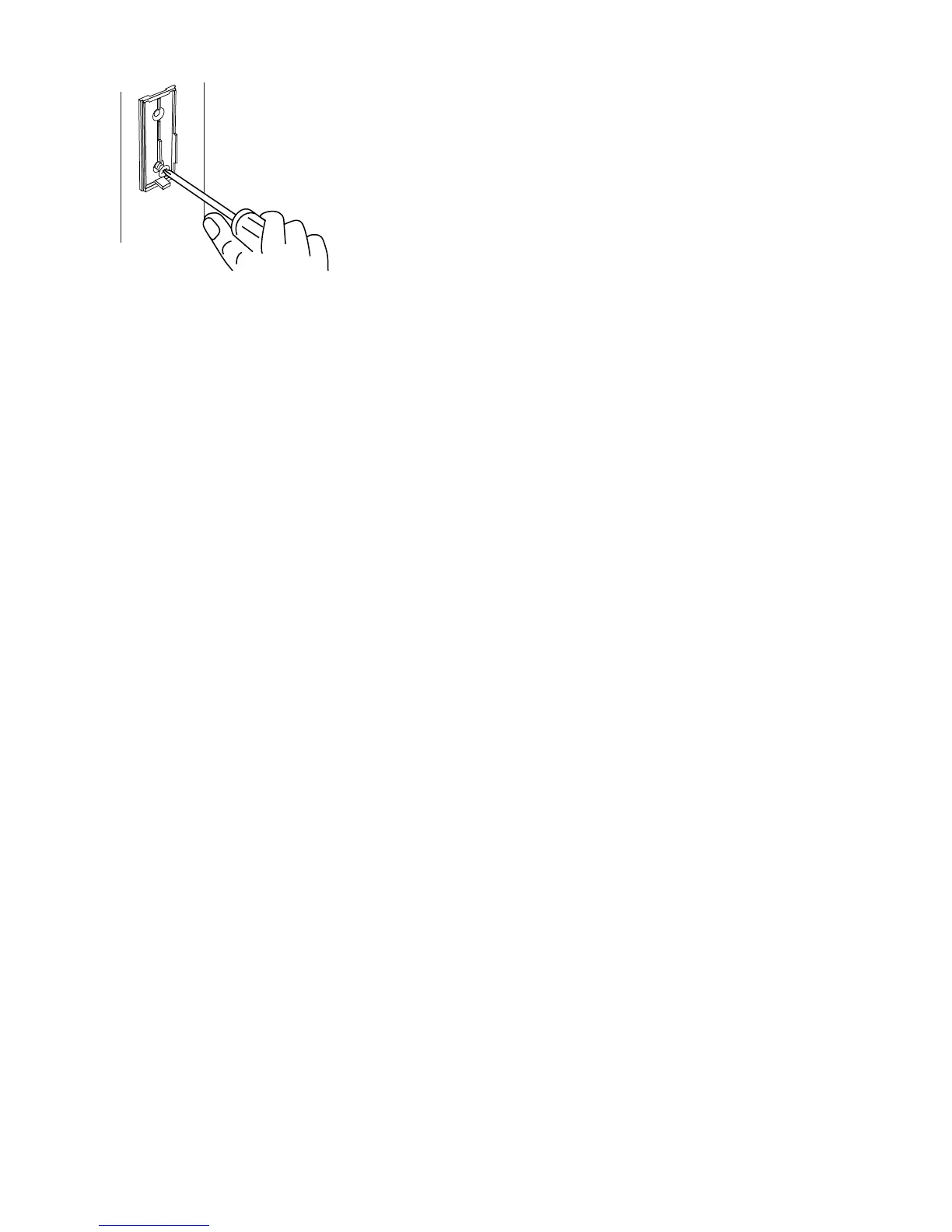

• To mount with screws, remove back of case by
pushing in tab on bottom with a small screw-
driver. Attach back of case to doorjamb or wall.
Snap front of push button on.
• When attaching push button using double sided
tape, make sure the surface of the doorjamb or
wall is clean.
• Chime can be wall mounted by using keyhole
located on rear of chime (see Figure 3). Use
screw and wall anchor as needed to fasten
mounting screw to wall. Leave approximately
1/8" gap between wall and mounting screw head.
Place chime on mounting screw.
